7310

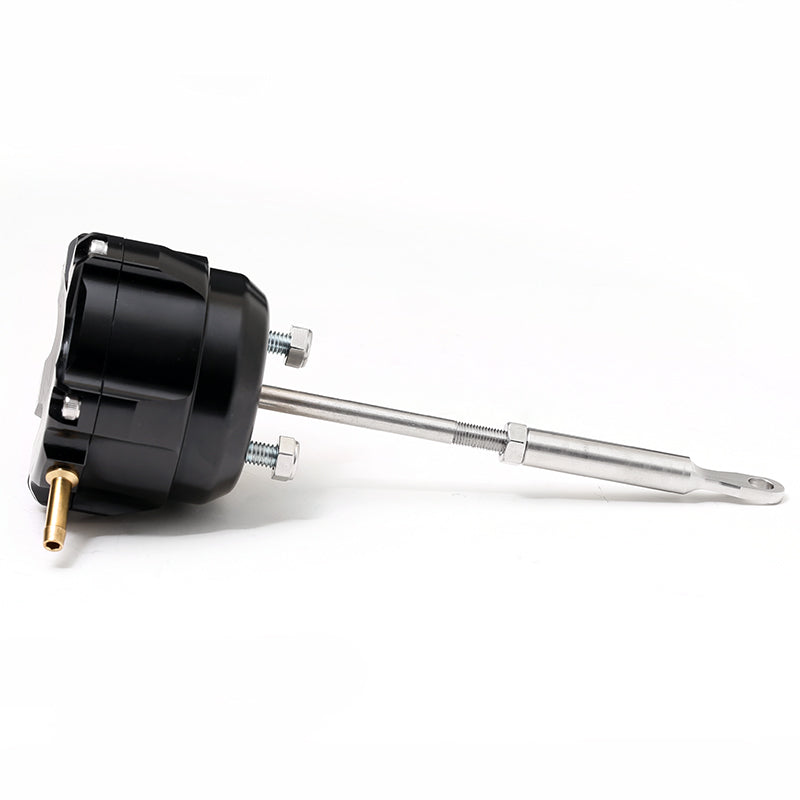

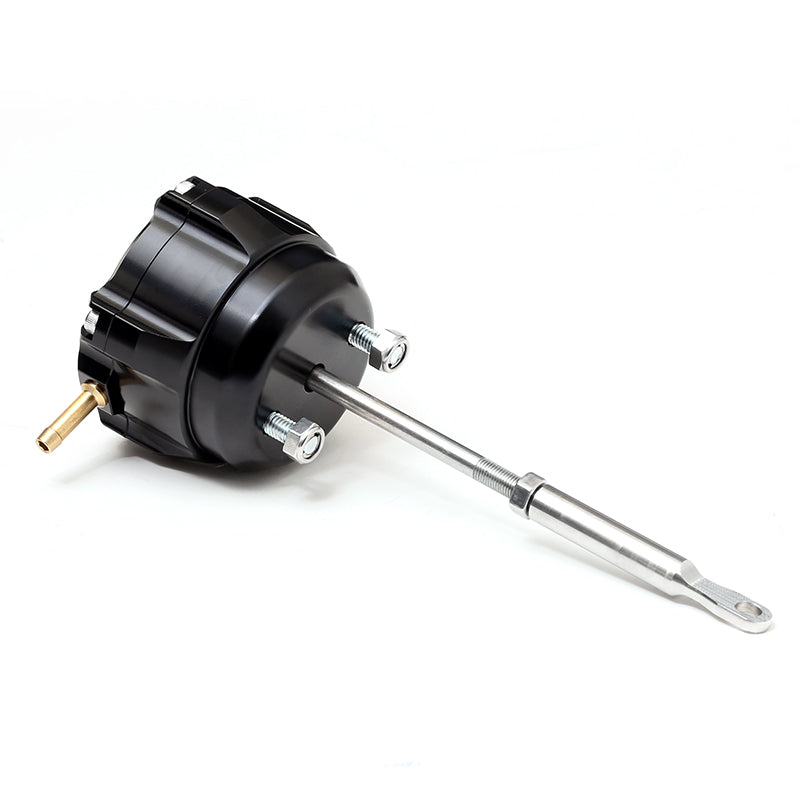

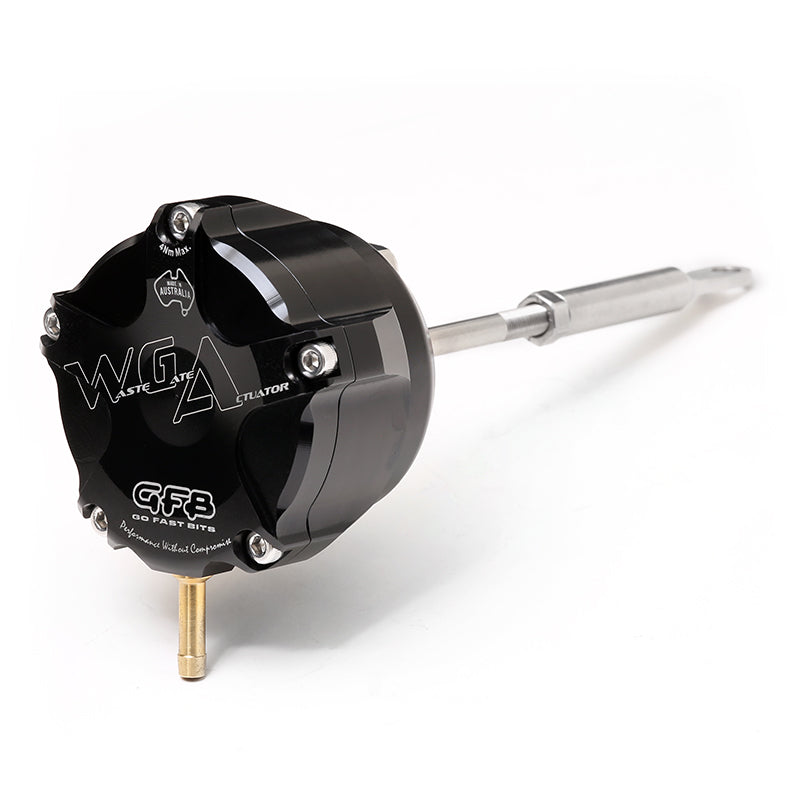

GFB WGA Internal Wastegate Actuator
Can-Am Maverick X3/Maverick R
-
FAST, TRACKED SHIPPING
Express Available
-
International Shipping
We ship Worldwide
-
AUSSIE OWNED
-
FAST DISPATCH
Description
Description
The GFB WGA Internal Wastegate Actuator for the Can-Am Maverick X3 is a high-performance upgrade designed to give your turbo far better boost control than the factory actuator, especially on tuned engines running higher boost.
Featuring a larger diaphragm and advanced internal design, the WGA provides greater control authority over the wastegate flap. This helps prevent exhaust backpressure from forcing the wastegate open too early during spool-up or at high RPM, where the OEM unit can struggle. The result is stronger, more consistent boost through the rev range and improved throttle response on and off the trail.
Supplied with three interchangeable springs and an easy-to-use turnbuckle adjustment, the WGA allows you to set and fine-tune base boost pressure from 5 psi to 22 psi. Compared with simply winding more pre-load into the factory actuator, this gives the ECU a far more stable and predictable platform to work with when calibrating higher boost targets.
Important: Although this is a physical bolt-on part, it is a tuning tool and will increase boost pressure. Professional ECU tuning is required after installation to ensure safe air/fuel ratios and engine reliability.
Features & Benefits
- Optimised for tuned Maverick X3 setups – improves boost control on engines running higher-than-stock boost levels.
- Increases area under the boost curve – helps the turbo hold target boost longer, with less taper at high RPM.
- Faster spool-up – larger effective diaphragm area resists wastegate blow-open during early boost ramp, giving quicker response.
- More stable boost at high RPM – maintains control where the factory actuator can be overwhelmed by backpressure.
- Adjustable base boost: 5–22 psi – three included springs can be combined to suit a wide range of tunes and power levels.
- Turnbuckle fine adjustment – easily dial in pre-load to fine-tune base boost pressure without repeated spring changes.
- Supports higher boost targets – ideal for performance tunes where the stock actuator cannot reliably achieve requested boost.
- Compact, low-profile body – designed to be the shortest actuator in its class, aiding clearance in tight engine bays.
Design Highlights
- Nomex-reinforced silicone diaphragm – industry-first design maximises effective diaphragm area within a compact housing for superior control.
- Longest stroke in its class (18 mm) – accommodates large internal wastegates and allows extra travel to further increase boost without changing springs.
- Unique pivoting rod guide – encapsulated spherical guide machined from high-performance PEEK polymer reduces friction and wear while keeping overall height down.
- No unnecessary bulk – carefully packaged internals deliver strong performance in a small, lightweight form factor suited to performance off-road vehicles.
- GFB performance heritage – engineered for precise, repeatable control to let your ECU act as the “puppet-master” of the turbo, not the other way round.
Technical Specifications
- Vehicle application: Can-Am Maverick X3 (turbo models with internal wastegate)
- Product type: Internal wastegate actuator
- Base boost range: Configurable from 5 psi to 22 psi (with included springs and pre-load adjustment)
- Actuator stroke: 18 mm rod travel
- Diaphragm material: Nomex-reinforced silicone
- Rod guide material: PEEK engineering polymer, encapsulated spherical design
- Adjustment method: Turnbuckle rod for pre-load and fine boost tuning
- Configuration: Bolt-on replacement for factory internal wastegate actuator (tuning required after fitment)
Included Components
- GFB WGA Internal Wastegate Actuator assembly
- Set of 3 stainless steel springs (various rates to achieve 5–22 psi base boost)
- Integrated turnbuckle adjustment rod
- Installation and setup instructions
Note: Professional installation and ECU recalibration are strongly recommended to ensure safe and reliable operation when increasing boost pressure.
Features and Benefits
Features and Benefits
- Improves boost control on tuned Can-Am Maverick X3 engines
- Reduces boost taper and drop-off at high RPM
- Faster turbo spool and sharper throttle response
- Larger diaphragm for greater control over the wastegate flap
- Adjustable base boost from 5 psi to 22 psi with included springs
- Turnbuckle pre-load adjustment for quick fine-tuning
- Long 18 mm stroke suits large internal wastegates and higher boost
- Compact, low-profile body for easier fitment in tight spaces
- Durable Nomex-reinforced diaphragm and PEEK rod guide for long service life
Technical Specifications
Technical Specifications
- SKU: 7310
- Product name: GFB WGA Internal Wastegate Actuator
- Vehicle compatibility: Can-Am Maverick X3 turbo models with internal wastegate
- Base boost pressure range: 5 psi to 22 psi (with included springs and pre-load adjustment)
- Actuator stroke: 18 mm rod travel
- Diaphragm: Nomex-reinforced silicone, high effective area design
- Rod guide: Encapsulated spherical guide, machined from PEEK polymer
- Adjustment: Turnbuckle rod for pre-load and base boost fine-tuning
- Fitment style: Bolt-on replacement internal wastegate actuator (tuning required)
Included Components
Included Components
- GFB WGA Internal Wastegate Actuator – Can-Am Maverick X3
- Three stainless steel actuator springs (various rates)
- Integrated turnbuckle adjustment rod
- Installation and setup documentation
