GSC Conical Valve Spring Set with Titanium Retainers/Chromoly Seats
Subaru EJ20/EJ25
This product is in stock & ready to be dispatched.
This product has very limited stock remaining.
Product will be in stock soon.
This product is not ready for immediate dispatch and will ship in the timeframe displayed.
This product is not available at this time. Request ETA Information
Earn [points_amount] when you buy this item.
Description
Description

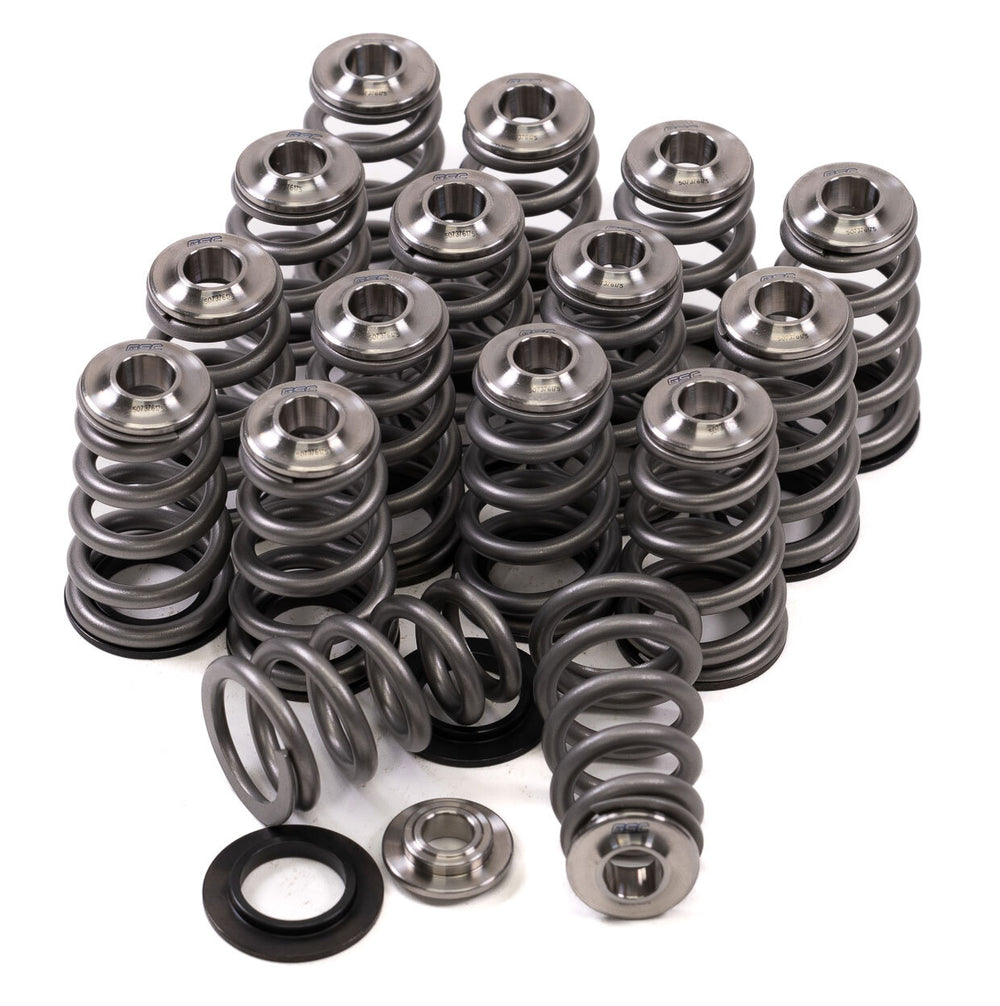

The GSC Power-Division High Pressure Conical Valve Spring with Ti Retainer for Subaru Turbo EJ Platforms includes 16 titanium retainers, 16 conical valve springs, and 16 chromoly valve spring seats. High RPM and High Boost levels are not a problem on these kits. True conical valve springs are not a new concept and are industry proven to provide several key advantages over traditional spring designs. A major advantage of conical springs vs. traditional cylindrical or beehive springs is the damping and removal of valvetrain harmonics. Of the three designs, conical springs are the front runners in valvetrain harmonic stability. Utilizing a varying coil diameter as well as coil spacing, a conical spring acts as a natural harmonic damper in the transfer of valvetrain shock. This translates to less stress, less wear, and a longer life of the included components. This level of protection is needed in today’s engines being pushed to their physical and mechanical limits by aftermarket modifications. Every GSC conical spring offers a super finished surface treatment to go along with the patented, multi-step heat treatment process. The finished product is an extremely reliable, high-performance spring allowing the users to push higher RPMs, use more aggressive cam profiles, and turn up higher boost pressures.
Notes:
- Max RPM: 10,000 RPM
- Max boost: 40 psi
Technical Specifications
Technical Specifications
Setup | Coil Bind (in) | Install Height (in) | Seat Pressure (lbs) | Open Pressure, 11.50mm lift | Maximum Valve Lift (in) |
Conical | 0.807" | 1.318" | 84 | 233lbs @ 0.868" | 0.450" |
