 |  SKU: 7025S3

GSC S3 Billet Camshaft Set 282/282

Subaru WRX/FXT/LGT EJ255/257B w/ Intake AVCS ONLY
$2,079.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

GSC Power-Division billet S3 camshafts for the USDM STi and WRX with Intake only AVCS. These camshafts are built to suit high horsepower cars with a power range of 750-1000 WHP and a rev range of 4500-9500 RPMs.  Specific engine modifications are required to utilize the true potential of these camshafts including a built bottom-end (sleeved or closed deck reccomended), built/ported heads (casting must be clearanced for higher lift), and upgraded valve springs.  A standalone ECU or tune with speed density is highly reccomended in order for proper idle characteristics.

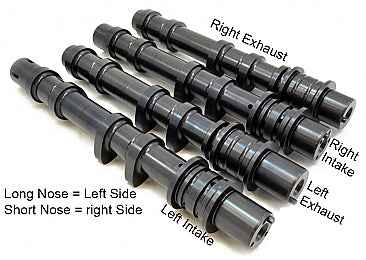

  • Check Pictures for cam placement. Long nose = Left Side, short nose = Right Side
  • Due to the lobe size, head castings will need to be filled down slightly for clearance - Please check during install
  • Proper break in and running high zinc oil is a must on flat tappet engines.
  • Must be installed by an experienced technician

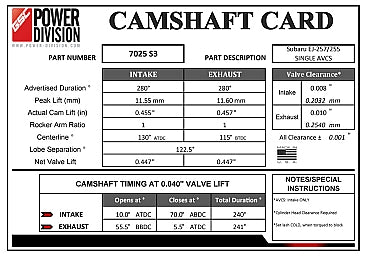

Technical Specifications

7025S3 ADV Duration Duration @ 0.040" Peak Lift Center Line
Intake 280° 240° 11.55mm 130°
Exhaust 280° 241° 11.60mm 115°

Fitment Table
