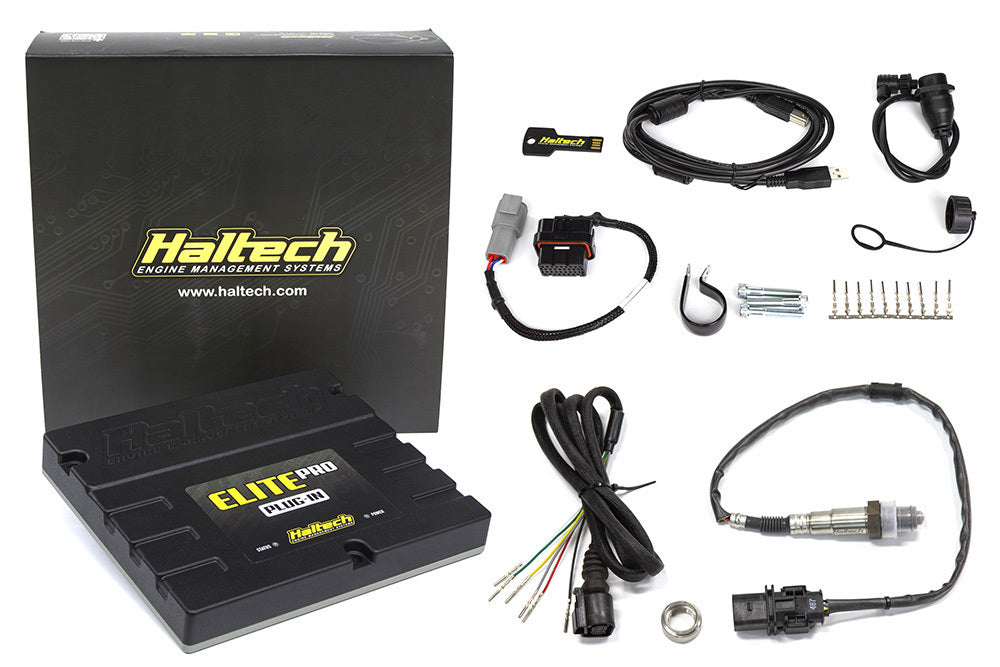

Haltech Elite PRO Plug-in ECU + Onboard Wideband Sensor Kit Length: 2.5m (8')

• Die cast aluminium, water resistant case.
• On-board automatic transmission control via CAN (ZF 6HP26).
• E85 Flex Fuel ready.
• Multi-fuel support. Petrol, Methanol and Ethanol.
• Internal single channel wideband (supports LSU4.9 sensor).
• Variable cam control.
• Cruise control.
• OBDII compatible. Set and clear diagnostic trouble codes, view live engine data.
• Short and long term fuel, ignition, boost and idle control learning.
• Knock control with high speed digital filtering.
• Closed loop boost control. Tune by gear, wheel speed or time.
• Closed loop idle control with learning for consistent idle stability.
• Closed loop 02 control.
• Anti-lag and launch control with drag and rally modes.
• Multi level engine protection.
• ESP calibration software. Intuitive and easy to use, ESP offers limitless tuning flexibility. Tune your engine by a combination of 4D tuning tables combined with 3D per cylinder compensations and multiple user definable corrections.

Suits: Ford Falcon BA (02-05), BF & BF MKII (05-08), FG, FG MKII & FG X (08-16) I6 4.0L DOHC VCT Barra engine with manual transmission. Ford Falcon BF & BF MKII (05-08), FG, FG MKII & FG X (08-16) I6 4.0L DOHC VCT Barra engine with ZF 6HP26 6-speed auto. Naturally aspirated and turbo.

ECU OUTPUTS

• 6 x current controlled injector drivers (OEM). High or Low impedance injector compatible.
• 8 x additional injector outputs available for staged injection, unused staged injector outputs are available to be used as generic programmable DPOs.
• 6 x ignition outputs to support OEM Ford coils directly
• Digital pulsed outputs - as per OEM.
• Drive By Wire (DBW) output suits any throttle body and pedal including Ford OEM.

ECU INPUTS

• Analogue voltage inputs (AVI): as per OEM.
• 4 x additional user definable AVIs available on the auxiliary connector.
• Digital pulsed inputs (DPI): as per OEM.
• 4 x additional user definable DPIs used for measuring duty cycle, frequency or state.
• Engine position inputs: as per OEM. Supports Ford Barra trigger pattern. Alternate generic trigger support also available.
• Knock inputs: as per OEM.

ECU COMMUNICATION

• 2 x CAN bus communication.
• Haltech CAN (via auxiliary connector).
• Vehicle CAN.
• 1 x Circular mini connector for USB programming.

ECU DATA LOGGING

• On-board data logging. Up to 40 channels.
• 2MB internal storage.

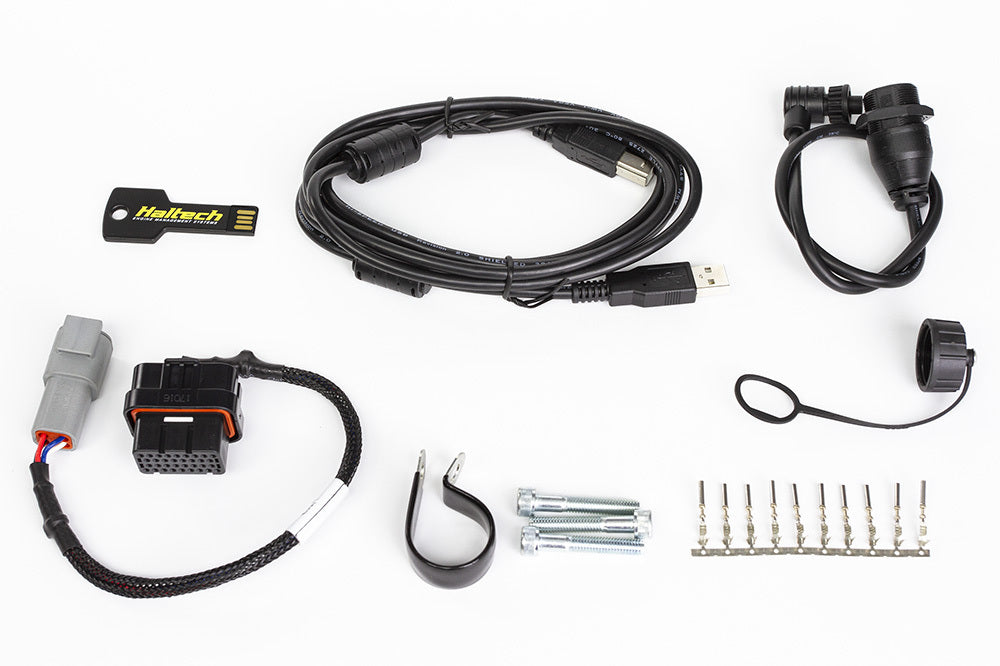

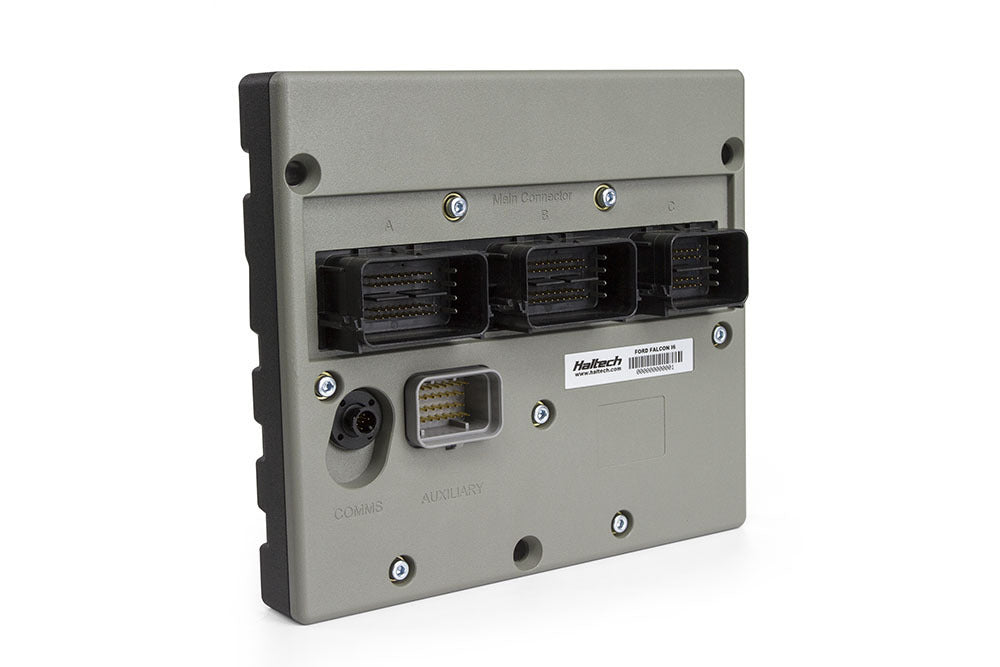

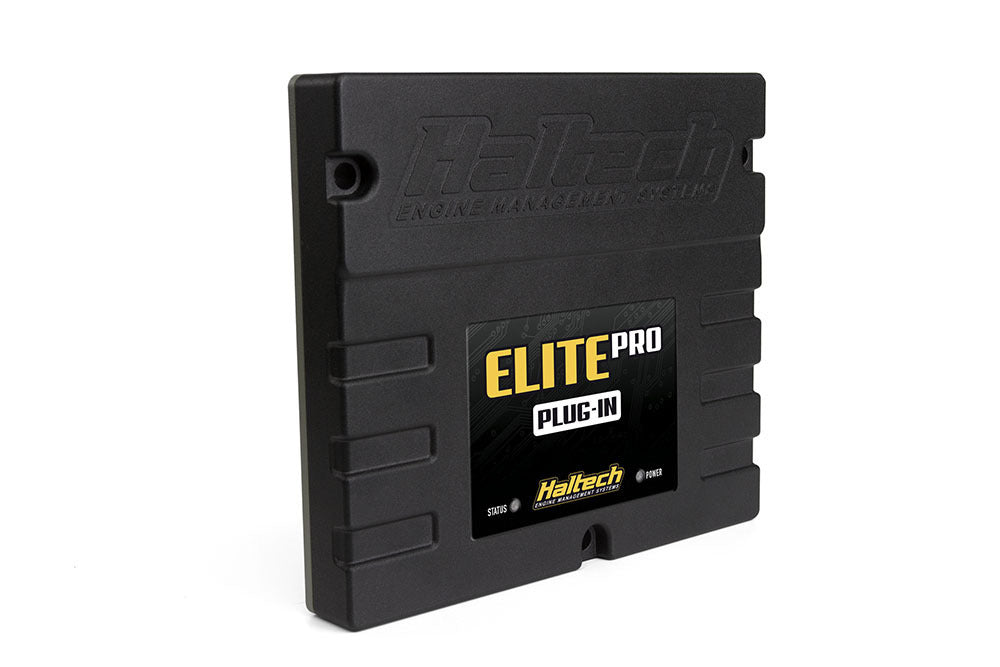

• Elite PRO Plug-in ECU
• Auxiliary I/O harness with AMP 34 Pin 4 row 4 keyway superseal connector
• 300mm (12") Elite CAN DTM-4 female receptacle/socket
• 30 waterproofing/blanking pins and 10 spare pins to populate auxiliary I/O positions

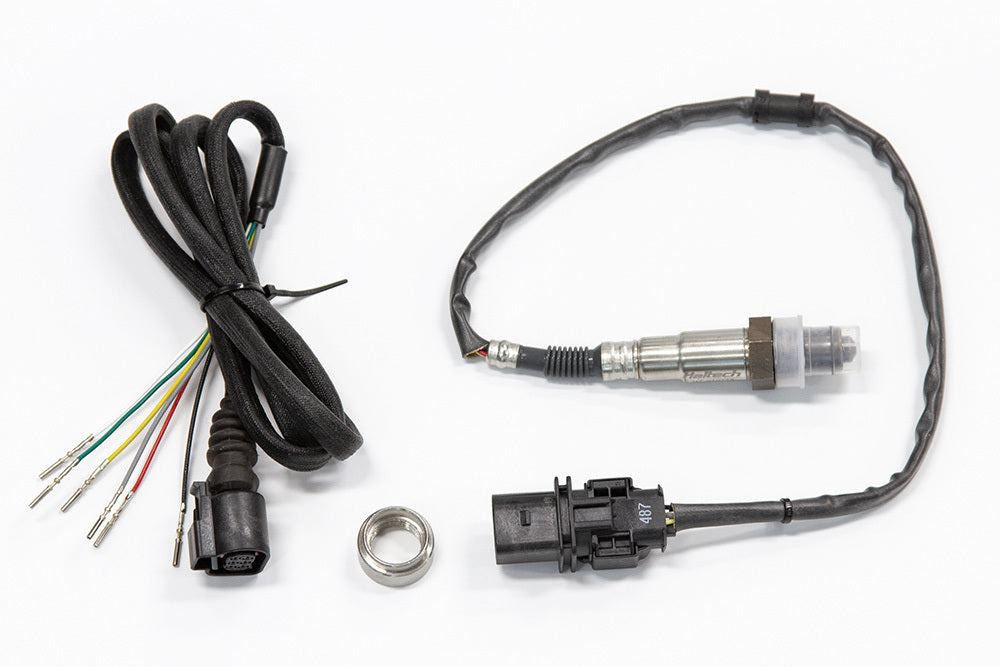

• Wideband hardware pack with LSU 4.9 sensor
• 1.2m (4') harness and weld-on sensor bung
• 400mm (16") Waterproof (Type B) USB Connection Cable to Mini Circular (90°) with waterproof cap

General Notes:

• This product is only suitable for vehicles fitted with manual transmissions or the ZF 6HP26 6-speed automatic transmission
• Suits both naturally aspirated and turbocharged engines.
