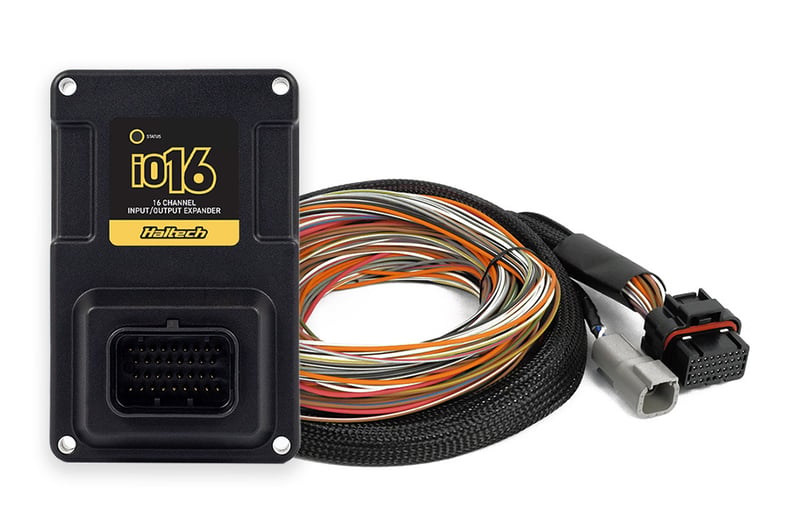

Haltech Nexus IO16 Input/Output Expander with Universal Wire in Harness 2.6M (8.5')

$1,009.01
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

The Nexus IO16 is a Haltech CAN device that expands the functionality of a Haltech Nexus or Elite ECU by adding 16 user-configurable input and output channels, accessible through the Haltech CAN system.

This harness, when used with a Nexus IO16, expands a Haltech Nexus or Elite ECU's functionality by adding 16 user configurable channels of combined inputs and outputs via the Haltech CAN system

Features and Benefits

INPUTS

6 x Analogue Voltage Inputs (AVI)

  • 0-5V readable range
  • Selectable 1k pull-up resistor to 5V

4 x Synchronised Pulsed Inputs (SPI)

  • Reluctor/Digital
  • 0-5V readable range
  • Selectable 1k pull-up resistor to 5V

OUTPUTS

6 x Half Bridge Outputs (HBO)

  • 8A current (sink/source)
  • Capable of 0-100% duty cycle
  • 2.2khz switching speed
  • NOT suitable for DBW throttle application

WARNING - When using HBOs, ensure the Nexus IO16 is powered using the constant power pins and power ground pins.

OTHERS

  • 3 x 5V output (sensor power)
  • 4 x Sensor ground

Note: Any 5V and sensor ground pins can be paired when wiring sensors.
