$3,799.00
Unit price /
Unavailable
Bidit helps you and Pro Speed Racing agree on a price. You set the price and Pro Speed Racing checks if they can accept your offer. You aren't competing with anyone else.
Nexus R3 combines the functionality of a power distribution module, a data logger, a wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).
4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
8 x peak/hold injector drivers (can be used as low side drive outputs)
8 x low current ignition outputs (can be used as low side drive outputs)
6 x low side drive outputs, PWM capable (DPOs)
6 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
1 x on-board wideband controller, supporting NTK and LSU4.9
1 x on-board 4 bar MAP sensor
2 x CAN ports with switchable termination
Superseal connector
34 Pin (Key 1) Plug and Pins
Plug and Pin set compatible with Haltech Nexus products that use the Key 2 / 34 position connector.
Plug and pins only - Male Deutsch DTP-06-4S - Black connector (25Amp)
Features and Benefits
VCU FEATURES
Controlled via NSP (Nexus Software Programmer)
Long Term Learning
Stepper Motor Control
4D Closed Loop Boost Control
Closed Loop CO2 Control
Rotational Idle
Launch Control
Traction Control
Anti-Lag
Dual Knock Control
Trans Brake Control
Race Timer
Multi Stage Fuel Injection
Multi-level Engine Protection
6 Stage Nitrous Control
4-sensor variable cam control
Intake Air Bleed Control
Flat Shift Control
Shock Travel & Ride Height Control
Advanced Torque Management
On-board Wi-Fi
On-board datalogging (128MB)
AUTOMATIC TRANSMISSION CONTROL
Ford AODE/4R70W
GM 4L60E
GM 4L80E
Toyota A340E
Lenco
Liberty
Included Components

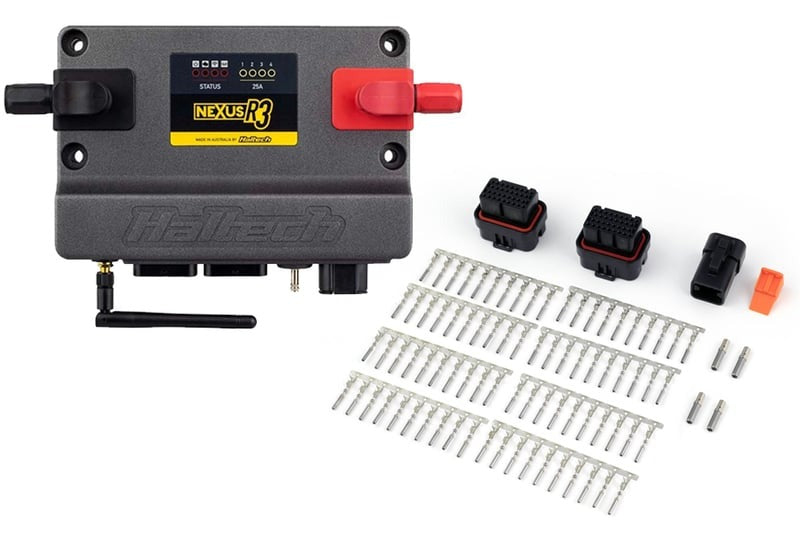

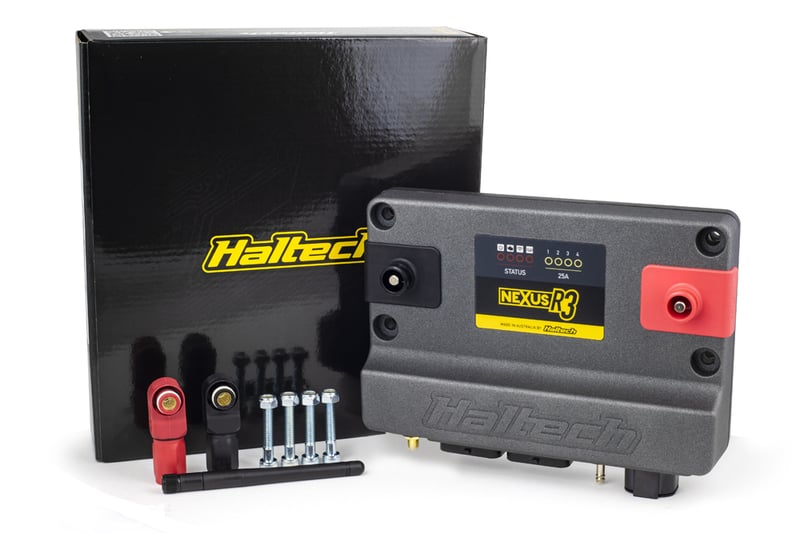

Includes: Nexus R3 VCU, AMP 34 pin key 1 and 34 pin key 2 and DTP-4 Connectors and pins
Step 1: Choose message placement
Click the button below and then hover over your page to select a placement.
Step 2: Paste and save
You have copied the placement for the Product Page.
Go back to the App Embeds section, and in the Paypal Advanced Settings, paste the copied value into the
Product Page field and click the 'Save' button in the top right corner.
| SKU:
HT-193100
