 |  SKU: HT-186205

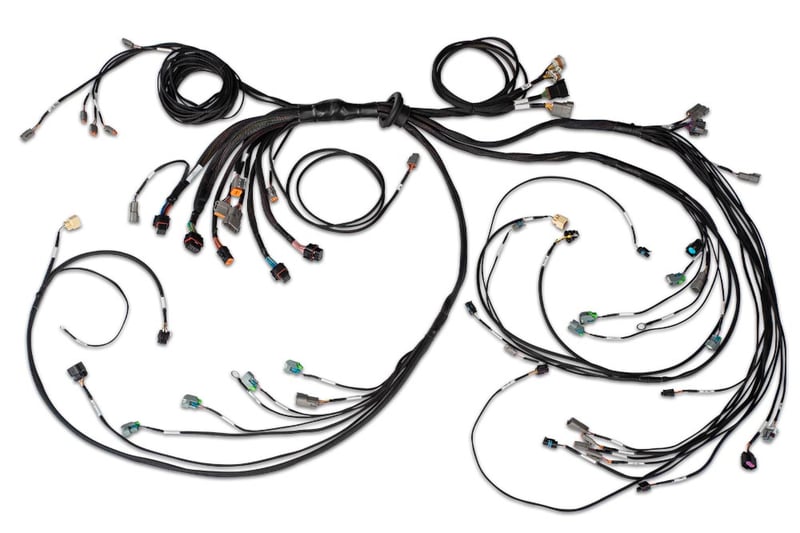

Haltech Nexus R5 Terminated Harness

GM/Holden LSX Engines (DWB Ready)
$2,075.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Terminated harness suits LSx engines with DBW, and incorporates PDM functionality.

  • EV6 primary injector plugs.
  • Plug and play with the OEM Ignition sub-harness on the engine. (Required)

Suits: Vehicles equipped with GM LSx engines with DBW throttle needing a vehicle rewire with PDM functionality. Pre-wired to connect directly to OEM 7 Pin Coil Harness Connector.





Features and Benefits

  • 8 x Primary injectors (EV6)
  • Breakout plug for 8 x Secondary injectors
  • 2 x outputs available for Tertiary injection
  • Universal breakout for accelerator pedal wiring
  • Single / Dual boost solenoid control
  • Dual wideband sensor control (R5 onboard wideband controller)
  • Flex fuel sensor connection
  • Direct fuel pump control (using 25A-HCO)
  • Direct thermofan control (using 25A-HCO)
  • In cabin breakout connector for spare inputs and outputs
  • Engine bay breakout connector for spare inputs and outputs (eg transmission control)
  • Breakout connector for PDM outputs (eg Headlights, indicators, wipers, etc)
  • Haltech CAN Bus support (DTM-4)

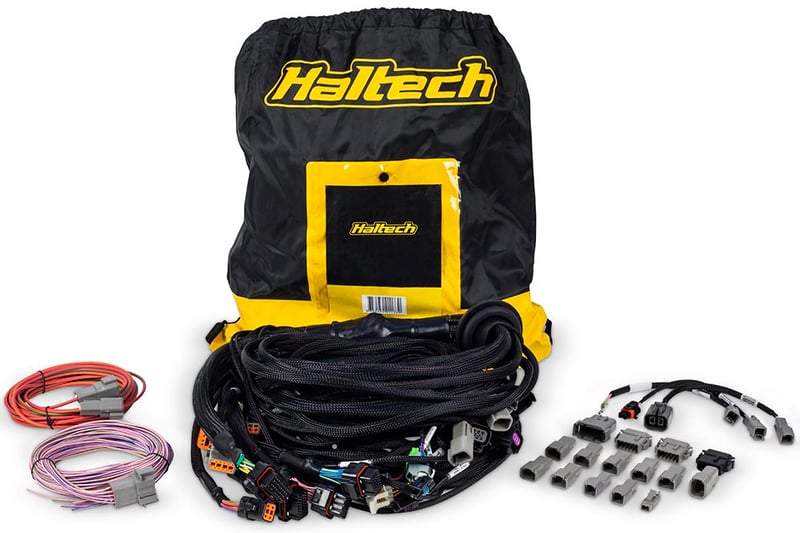

Included Components

  • 1 x HT-186205 Terminated Harness
  • 1 x Pack of DTM/DT connector and pin set to terminate to sensors, solenoids and other devices
  • 2 x DTP-2 connectors with pre-crimped 12AWG wires to use for fuel pump and thermofan
  • 1 x DT-8 connector with pre-crimped 18AWG wires
  • 1 x 2 pin Bosch alternator adaptor harness
  • 1 x 2 pin Yazaki alternator adaptor harness
  • 1 x 4 pin Delco alternator adapter harness

Fitment Table
