 |  SKU: HT-187012

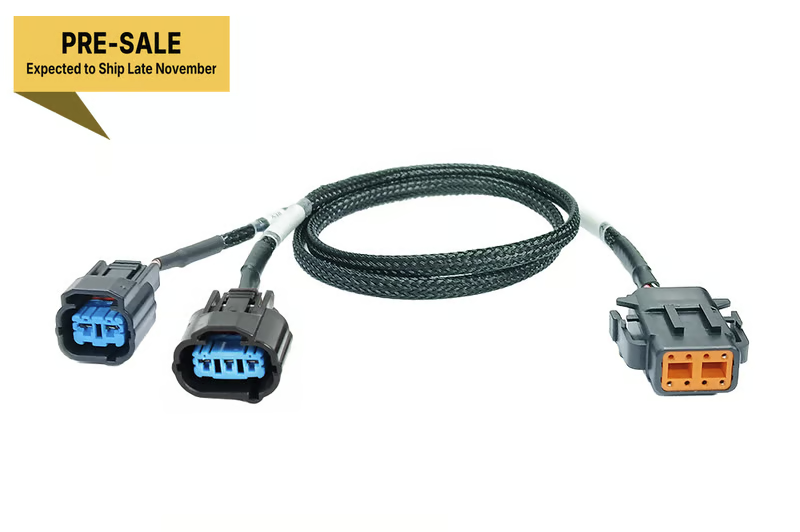

Haltech Nexus Rebel K 05+ Honda Transmission Subharness

Honda K20A/K24A/K24Z (Nexus Rebel K)
$42.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

The Haltech Nexus Rebel K 05+ Honda Transmission Subharness (HT-187012) is designed to seamlessly integrate a 2005+ Honda K-series transmission with a Nexus Rebel K main terminated harness. It plugs directly into the Rebel K transmission breakout connector and provides clean, reliable connections for both the Vehicle Speed Sensor (VSS) and the reverse lockout solenoid.

If your transmission does not use a reverse lockout solenoid, the included connector can be safely secured out of the way, keeping your installation tidy and straightforward.

Features and Benefits

  • Direct plug-in solution – Connects the Nexus Rebel K main terminated harness to 2005+ Honda K-series transmissions without cutting or splicing.
  • VSS connectivity – Provides a dedicated connection for the Vehicle Speed Sensor to ensure accurate speed input to your Haltech ECU.
  • Reverse lockout support – Includes a connector for the reverse lockout solenoid where fitted.
  • Clean installation – Reverse lockout connector can be secured away when not required, helping maintain a neat engine bay.
  • Vehicle-specific design – Engineered for Honda K20A/K24A/K24Z applications using the Nexus Rebel K platform.

Technical Specifications

  • Product SKU: HT-187012
  • Compatibility: 2005+ Honda K-series transmissions
  • Engine applications: Honda K20A / K24A / K24Z (Nexus Rebel K)
  • Connections provided: Vehicle Speed Sensor (VSS), reverse lockout solenoid
  • Harness type: Adapter from Nexus Rebel K main terminated harness transmission breakout connector to OEM-style transmission connectors

Included Components

  • 1 x Haltech Nexus Rebel K 05+ Honda Transmission Subharness (HT-187012)

Fitment Table
