 |  SKU: HT-055045

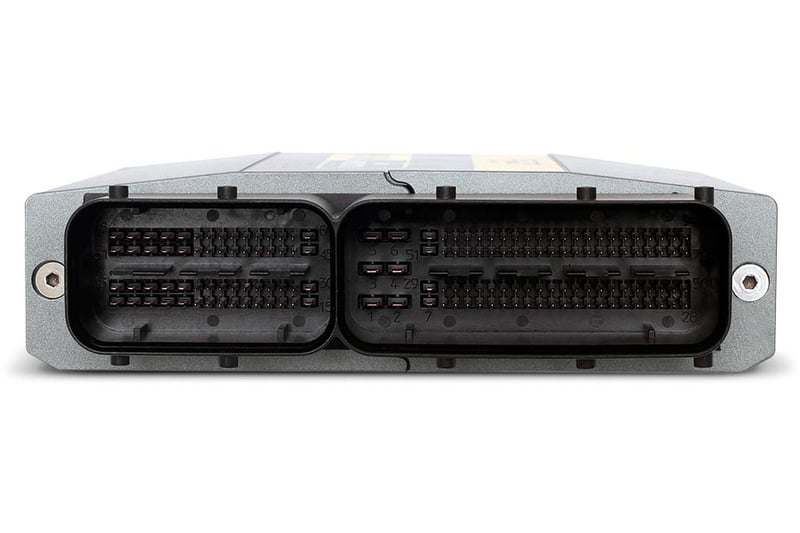

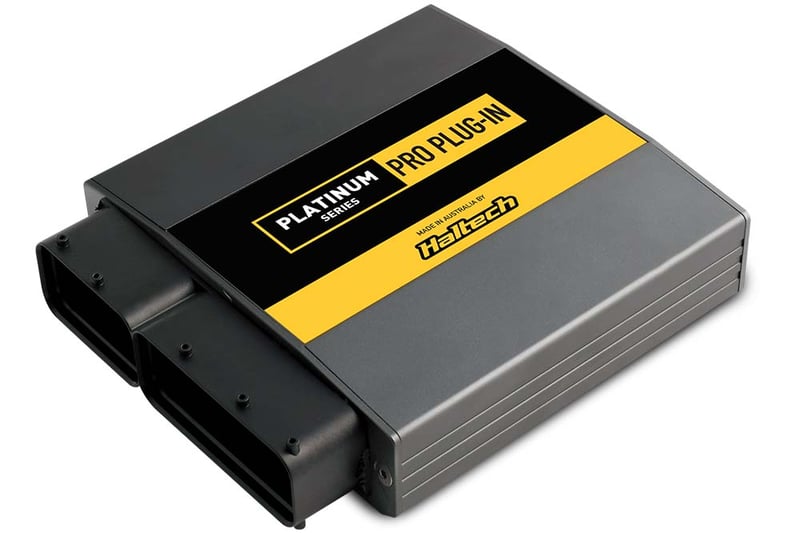

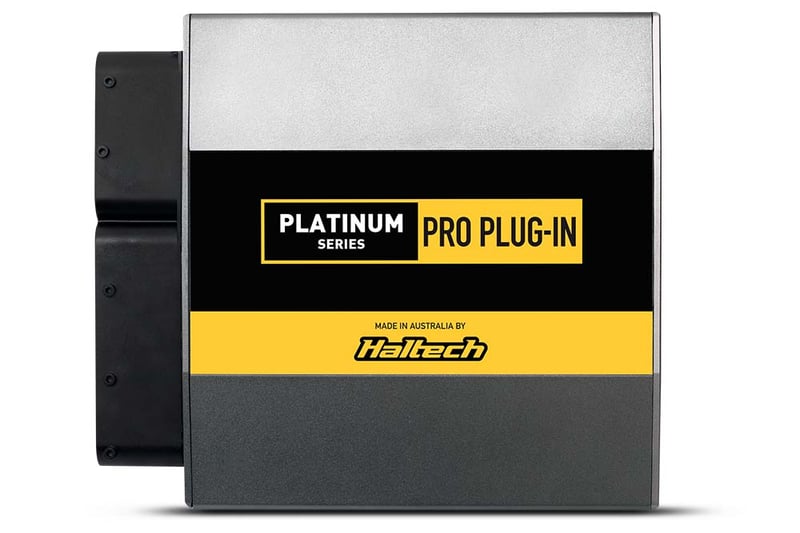

Haltech Platinum PRO Plug-in ECU

Hyundai Genesis BK Theta 2.0 Turbo 09-12
$2,455.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

If you are after a simple plug-and-play option and your car still has its original engine and wiring in it, a Plug-in ECU is the easiest and quickest solution.

You simply unplug the factory ECU, and plug the Haltech ECU directly into the factory harness. Load your base map and you're ready to go!

  • Direct plug and play replacement of the OEM ECU, no rewiring necessary
  • Uses the car's factory sensors
  • Windows 2000, XP, Vista, Windows 7 & 10 compatible software
  • Real-time programming, instant hesitation free adjustment while the engine is running
  • Fully user definable 32 x 32 mapping
  • Tuning via Volumetric Efficiency (VE), Injection time or Lambda Correction (MAF)
  • Selectable onboard internal MAP sensor rated to 150kPa (up to 1.5 Bar or 22psi boost)
  • Wideband auto-tuning using user definable target AFR table

Suits: Hyundai Genesis BK Theta (2009-12) 2.0 Turbo. Manual transmission only. (Also suits 2013-15 models but does not support factory CAN AC request or electronic wastegate control. Please see the product quick start guide for further information.

Notes: Directly accepts an input from a flex fuel sensor.

Included Components

Includes: Platinum PRO Direct Plug-in ECU, Plug and pins for auxiliary I/O harness. Haltech CAN adaptor cable DTM-4 female receptacle/socket to 8 pin black Tyco 3"/75mm (used to adapt a Platinum series ECU to a DTM-4 Elite CAN system), USB programming cable.

Fitment Table
