HKS Crank Angle Sensor Conversion Kit

Nissan Skyline GT-R R32/R33/R34 (RB26DETT)
$1,299.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Unlock the full tuning potential of your RB26DETT with the HKS Crank Angle Sensor Conversion Kit for V CAM-equipped Nissan Skyline GT-R R32/R33/R34. Designed to deliver highly accurate crank angle and rotation signals, this kit improves ignition precision at high RPM, enhances drivability, and supports more detailed ECU calibration for performance-focused builds.

By separating crank and cam angle sensing and utilising a 36-2T crank trigger, this field-proven solution minimises signal fluctuation from timing belt wobble and electrical noise. The result is more stable ignition timing, reduced misfire risk, and the ability to safely extract more power from your RB26DETT when tuned correctly.

This 45999-AN002 kit is specifically configured for V CAM applications and requires an aftermarket ECU setup and tuning.

Black: RPM, Green: RPM shifts

The HKS sensor has less fluctuation and can accurately read the crank angle at high RPM range, allowing for a more detailed setting. Also, it protects the engine and brings out the true performance of the RB26.

Features and Benefits

  • High-accuracy crank angle sensing
    36-2T crank trigger provides precise rotation data at high RPM, allowing finer ignition mapping and more reliable high-load operation.
  • Separate crank and cam signal configuration
    Individually configured sensors reduce fluctuation compared with the stock cam-driven system, cutting timing errors and helping prevent misfires.
  • Improved engine behaviour
    Redesigned sensor assembly enhances starting performance, idle stability, throttle response and overall acceleration feel.
  • Potential power gains with tuning
    By resetting fuel and ignition maps to suit the improved signal quality, an increase of approximately 5–7% in power output can be achieved.
  • Cost-effective factory replacement
    Offers a compelling alternative to increasingly expensive OEM cam angle sensors, while delivering superior performance and a full refresh of critical components.
  • Noise-resistant signal transmission
    Specially designed harnesses with noise suppression help prevent ECU misreads caused by ignition noise from worn coils or wiring.
  • Proven in HKS complete engines
    Field-tested on HKS RB28 HIGH RESPONSE and STEP3 V CAM engines, ensuring reliability in demanding applications.
  • Clean fitment on RB26DETT
    Dedicated brackets and accessories are included for tidy installation and a professional engine bay appearance.

Technical Specifications

  • Product: HKS Crank Angle Sensor Conversion Kit (for V CAM)
  • SKU: 45999-AN002
  • Engine compatibility: RB26DETT with V CAM system
  • Vehicle applications: Nissan Skyline GT-R R32/R33/R34 (RB26DETT)

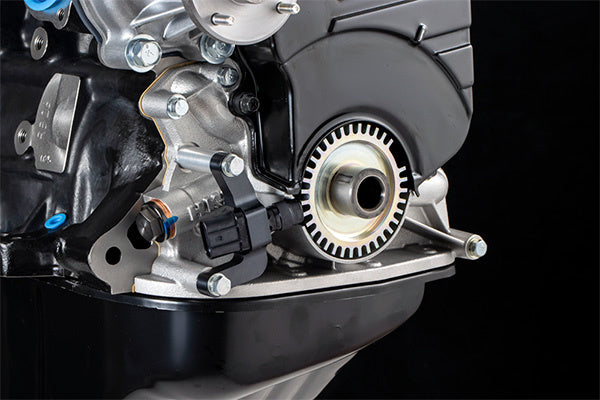

  • Trigger specification: 36-2T crank trigger for accurate crank angle reading
  • Required management: Must be used with an aftermarket ECU (recommended F-CON settings supplied in manual)
  • Signal configuration: Separate crank angle sensing; cam angle signal read by V CAM system
  • Expected performance gain: Approx. 5–7% increase in power with appropriate fuel and ignition remap
  • Related products: Compatible with HKS SUPER FIRE RACING COIL PRO (43005-AN001 / -AN002 / -AN003) and HKS oil pump (Code No. 15003-AN002)

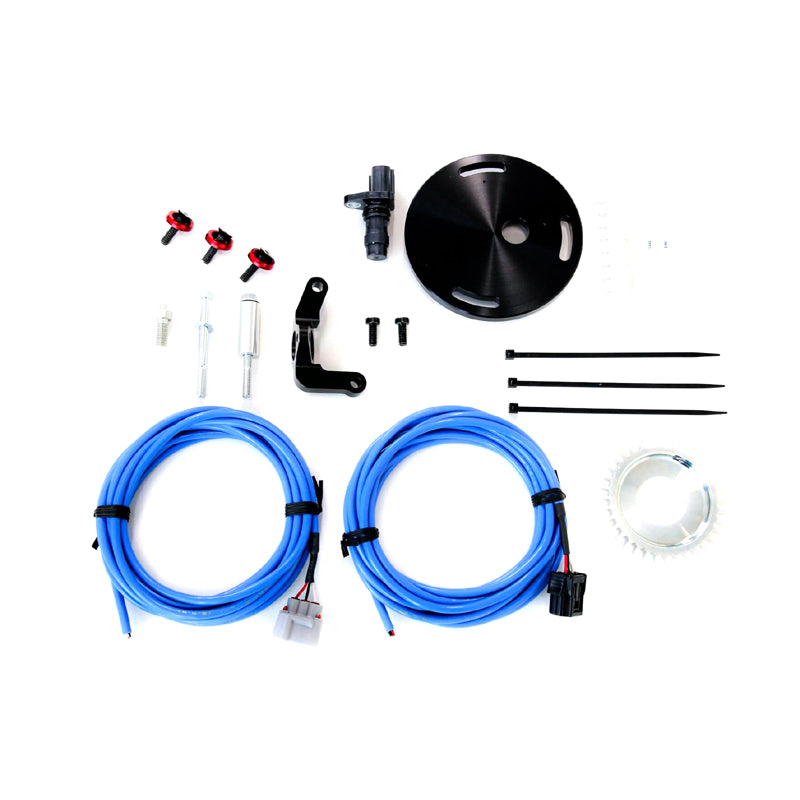

Included Components

  • HKS high-accuracy crank angle sensor assembly
  • 36-2T crank trigger system

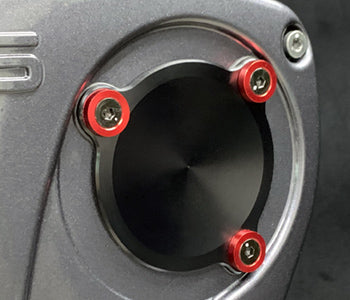

  • Special cam angle sensor cover (for V CAM applications)
  • Dedicated mounting brackets
  • Noise-suppressed wiring harnesses
  • Fittings and installation hardware
  • Installation instructions with recommended ECU setting guidelines (for F-CON)

Installation Instructions

Click to download

Fitment Table
