 |  SKU: 13001-AH007

HKS Front Mount Intercooler & Piping Kit - Honda Civic Type R FL5 22+

Honda Civic Type R FL5 22+
$3,049.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

The HKS Front Mount Intercooler & Piping Kit is engineered to maintain optimal charge air temperatures for enhanced engine performance and protection, particularly under high-stress conditions. Designed with a high-efficiency core and precision components, this kit improves air cooling capabilities. Ideal for performance-driven vehicles and motorsport applications, it ensures consistent power delivery and reliability during intense driving.

Features and Benefits

Intercooler Core

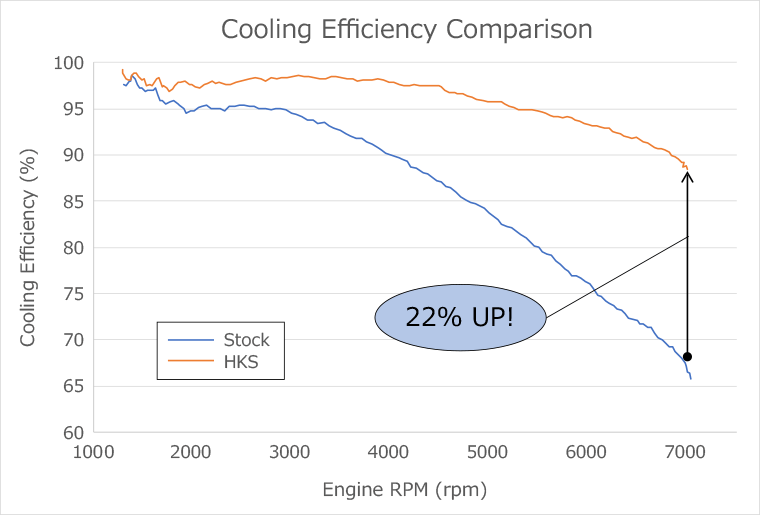

  • A huge 22.4% increase in core’s area leads to immense improvement in cooling
  • The OEM core does not provide sufficient cooling capacity when boosting up, with increased core capacity it will be compatible with everything from boosting up to turbo upgrade
  • The core is designed to be also installed with OEM piping

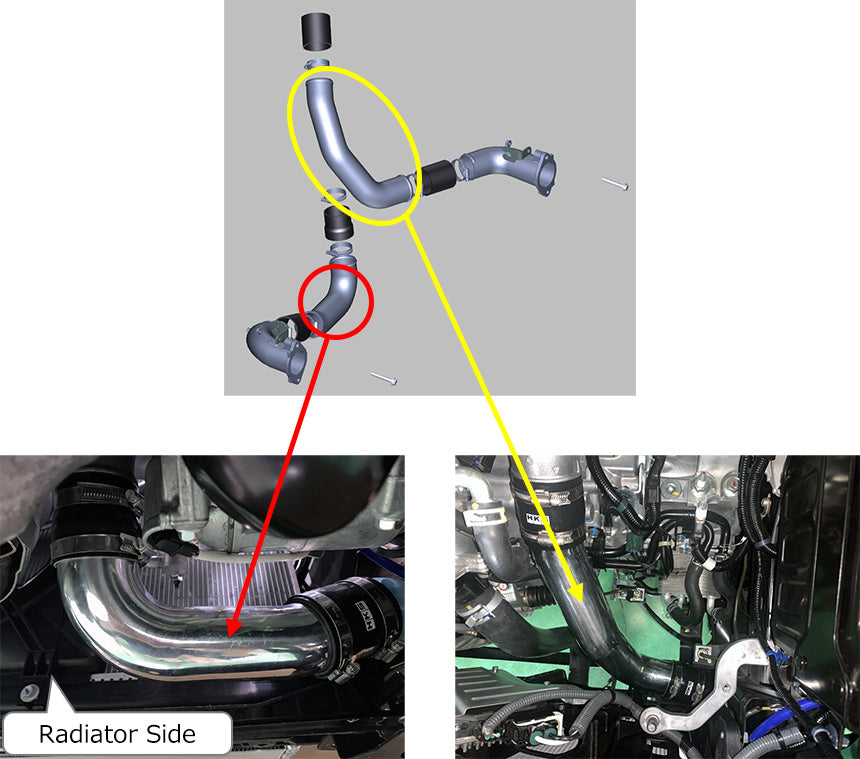

Piping Kit

  • Upon enlarging the pipe diameter and smoothing out the inner design in comparison to OEM we are able to increase power output
  • The OEM hose is prone to expand under high boost, but aluminum pipe has completely solved the issue of pressure loss due to hose expansion
  • The aluminum pipe is given a mirror buff finish, and the cast pipe and core feature the HKS logo, which gives a fantastic dress-up look

Fitment Table
