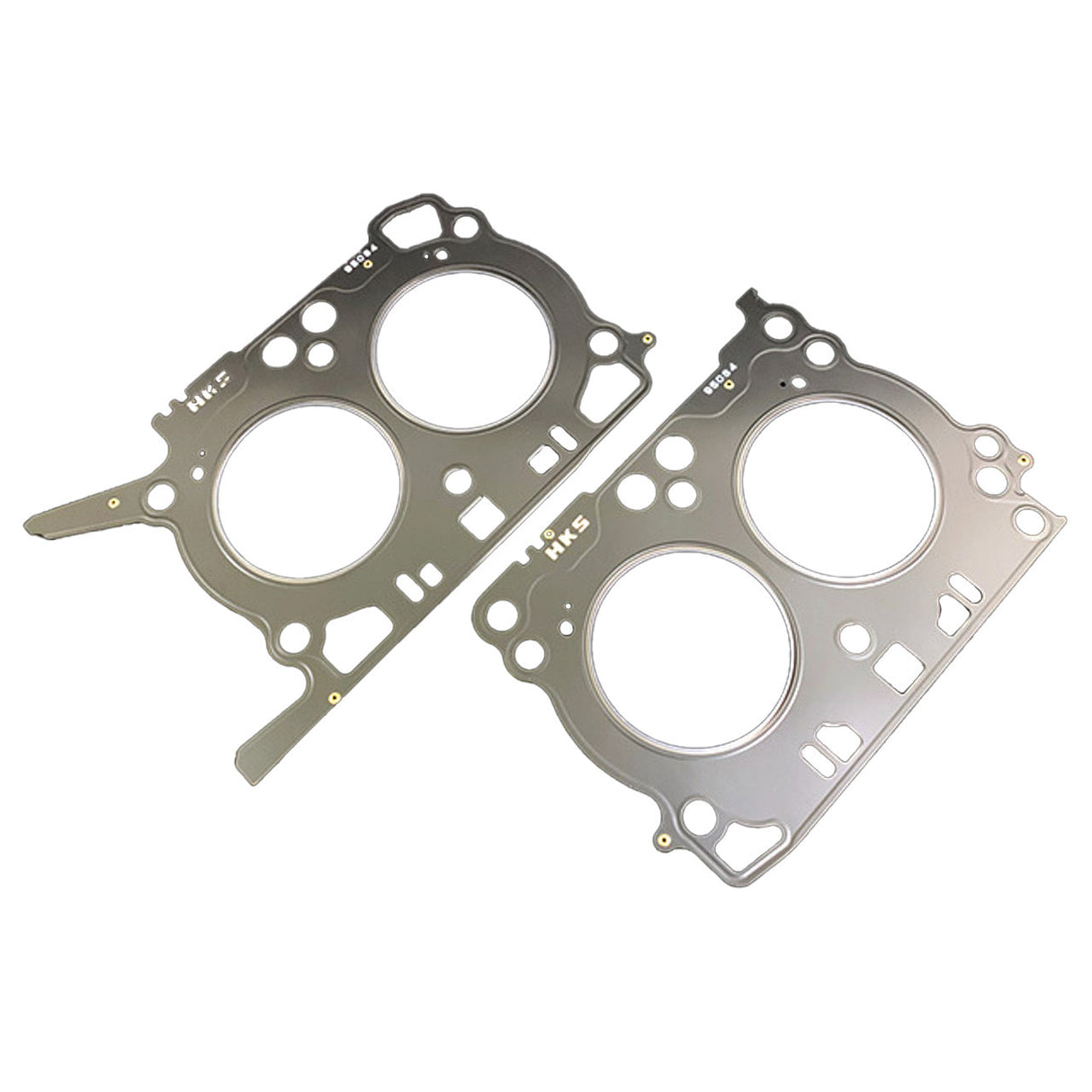

HKS Grommet Type Head Gasket Pair - 1.2mm

Subaru BRZ ZD8/Toyota GR86 ZN8 (FA24)
$774.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

High-Performance Sealing with HKS Grommet Type Head Gasket

When head bolts are tightened, the cylinder block and head—both non-rigid components—can create uneven gaps and surface pressure across the gasket interface. These conditions are further impacted by the high combustion pressures and vibrations encountered during engine operation. A high-quality head gasket must not only distribute sealing pressure as evenly as possible but also adapt dynamically to maintain a reliable seal under constantly changing conditions.

Grommet Type Head Gasket for FA20 Engines

Turbocharging and supercharging the FA20 engine has become increasingly popular. However, these high-performance upgrades often lead to head gasket failures due to the added stress. To combat this, HKS has developed a new grommet-type head gasket that surpasses traditional stopper-type designs, offering superior sealing for forced-induction applications.

Features and Benefits

  • Enhanced sealing performance through a grommet structure that ensures consistent surface pressure across the gasket.
  • Available in 1.2 mm thickness to help lower the compression ratio, ideal for high-boost setups or dimensional adjustments during engine overhauls.
  • Minimizes the risk of buckling between the cylinder head and block sealing surface under increased pressure.

Technical Specifications

Compression Ratios (Cylinder Head Not Resurfaced):

Gasket Thickness (mm) OEM 2.4L HKS 2.5L Kit
0.6 (Stock) 12.5 12.2
0.8 12.2 11.8
1.2 11.6 11.3

Fitment Table
