 |  SKU: 11004-AH006

HKS GT4845 Sports Turbine Kit

Honda Civic Type R FK8/FL5 17+
$6,599.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

HKS Sports Turbine Kit series utilize actuators which enable inexpensive turbine replacement. Select a turbo according to the vehicle specifications and purpose of use from "GT III Turbine" a new generation of turbo combining the latest design CHRA with HKS original housings designed from the long-term know-how HKS has accumulated over many years and "GTII Turbine" an HKS original turbo developed, designed, and manufactured within HKS facilities.

  • GT4845 maintains boost at high RPM, unlike stock turbos.
  • Tested at Fuji Speedway: +12 km/h top speed (232 to 244 km/h) and -3 seconds lap time.



Performance Data

  • The GT4845 Sports Turbo Kit with Mastery ECU PHASE3 (Only available in Japan) achieves a 19kW (64ps) increase over stock.
  • The primary exhaust pressure is the same as stock, allowing for efficient boost and a smooth power increase without straining the engine.



Features and Benefits

  • High RPM output improvement not achievable with stock turbo.
  • No fuel system upgrade required thanks to optimal size design.
  • Direct fit with no modification needed with the same layout design as the stock turbo.
  • Intercooler Kit is available separately for safe high-power use.
  • Turbo can be used without any piggybacks, but remapping is recommended to fully optimize turbo performance.

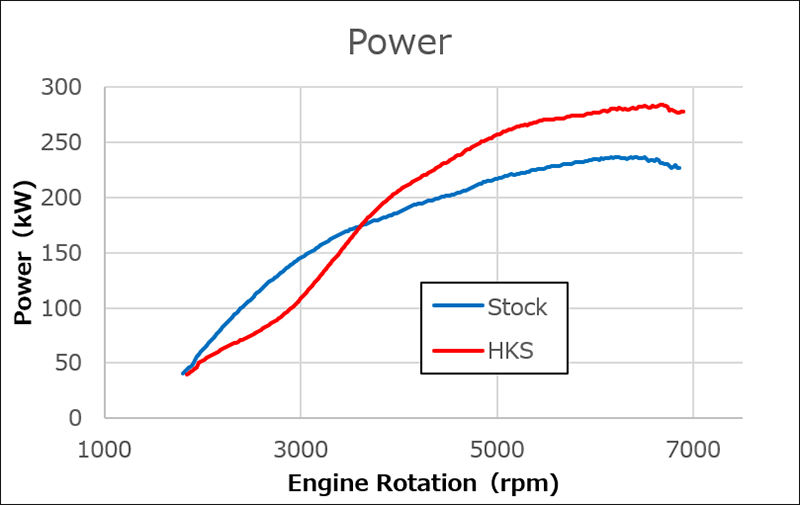

Technical Specifications

MAX POWER:

  • Stock - 242kW(330ps) @ 6,220rpm
  • HKS Turbo - 282kW(384ps) @ 6,600rpm

MAX TORQUE

  • Stock - 478Nm (48.7kgf・m) @ 3,320rpm
  • HKS Turbo - 492Nm (50.2kgf・m) @ 4,680rpm

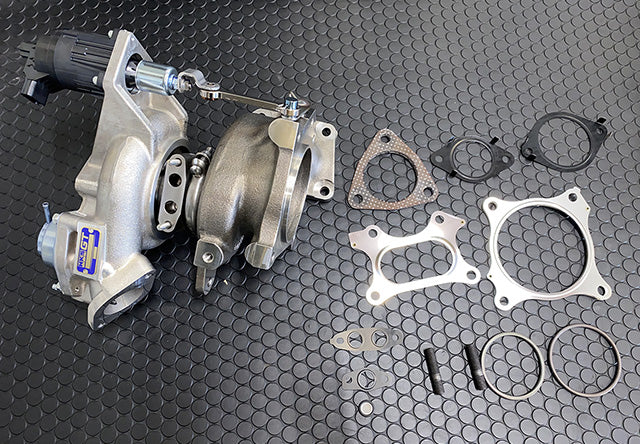

Included Components

  • Includes necessary gaskets (for Turbo, Exhaust, Intake, Water lines, Oil lines) and studs/bolts for turbo replacement.

Installation Instructions

Fitment Table
