HKS V2 GTIII-RS Bolt On Turbo Pro Kit

The HKS Turbo Kit for the Subaru BRZ/Toyota 86 was designed and engineered to add a significant power bump to the ZN6/ZC6 chassis. The GTIII-RS turbine is the best match for the 2.0L engine with specially designed turbo housing and other components made by HKS.

This kit is available from a stock to tuned engine. It is a 100% bolt-on kit shown to provide ~350 hp with a stock FA20. The kit can be used on it's own, or paired with other upgrades for more power (built motor tested to ~450 hp).

The kit includes all the necessary hard parts for installation. You will need to purchase engine management separately (ECU tune or stand-alone ECU), larger injectors are necessary (440cc or higher recommended), and upgrade the (for 3 BAR boost) MAP pressure sensor.

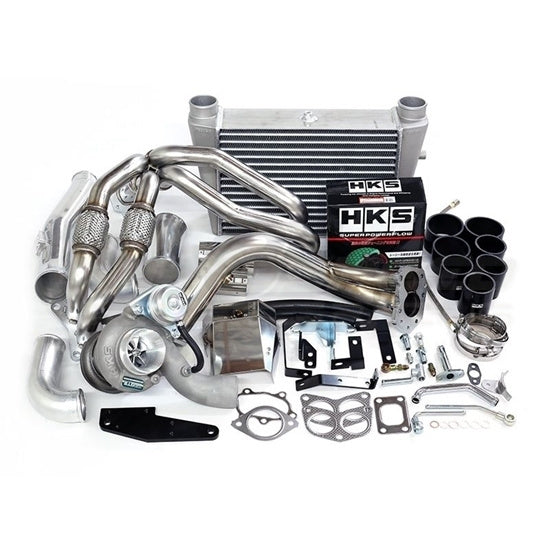

Features:

• Dedicated GTIII-RS turbocharger assembly (internal wastegate)
• All necessary oil and water lines
• HKS Power Flow Intake Parts
• Turbo Manifold (Exhaust Manifold) with cat-less down pipe
• Necessary heat shielding
• Gaskets, nuts, bolts and all necessary hardware for installation

Notes:

• Reinforced fuel parts such as injectors are required.
• MAP Pressure sensor is required separately.
• Engine management tuning/parts are not included in this kit. ECU tune required.
• Vehicle modification such as oil return port for oil sump is required in order to install this kit.
• Reinforced clutch is required to avoid slippage of the clutch disk that may occur due to significant torque characteristic change.
• It is strongly recommended to install an oil cooler to protect the engine.

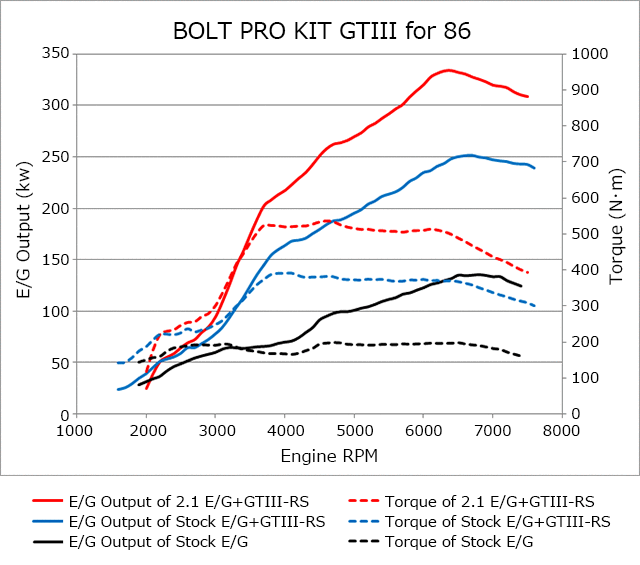

MAX ENGINE OUTPUT

• 2.1L E/G + GTIII-RS : 334kw(454ps)/6400rpm
• Stock E/G+ GTIII-RS : 251kw(342ps)/6600rpm
• NA Stock : 136kw(185ps)/6800rpm

MAX TORQUE

• 2.1L E/G + GTIII-RS : 536N?m(55kgf?m)/4600rpm
• Stock E/G+ GTIII-RS : 391N?m(40kgf?m)/4100rpm
• NA Stock : 199N?m(20kgf?m)/4100rpm
