IAG 600 Ball Bearing Turbocharger with Wastegate

The IAG 600 Ball Bearing Turbocharger with Wastegate is a direct-fit performance upgrade for the 2022+ Subaru WRX VB VN and Outback XT BT equipped with the FA24 engine. Designed as a true bolt-on replacement for the factory turbo, it offers a substantial increase in airflow and power potential while retaining smooth, street-friendly drivability.

Comparable in size and performance to a Garrett G25-660, the IAG 600 is engineered to support up to 600 brake horsepower with the correct supporting modifications, fuel system and tuning. It delivers a strong mid-range, improved top-end power, and quick response, making it suitable for both fast road cars and track-focused builds.

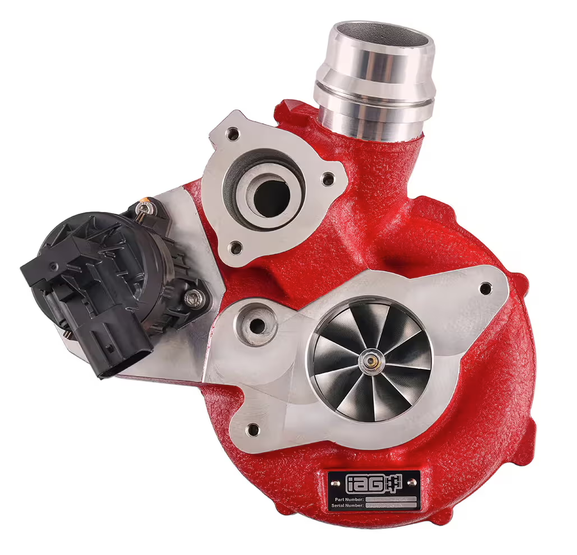

At the core of the IAG 600 is a high-efficiency ball bearing centre section and a CNC-machined billet aluminium compressor wheel (54 mm inducer / 67 mm exducer), matched with a 54 mm inducer / 49 mm exducer turbine wheel. This larger, more aggressive wheel combination moves significantly more air than the OEM turbo, giving your FA24 the headroom it needs to make reliable, repeatable power.

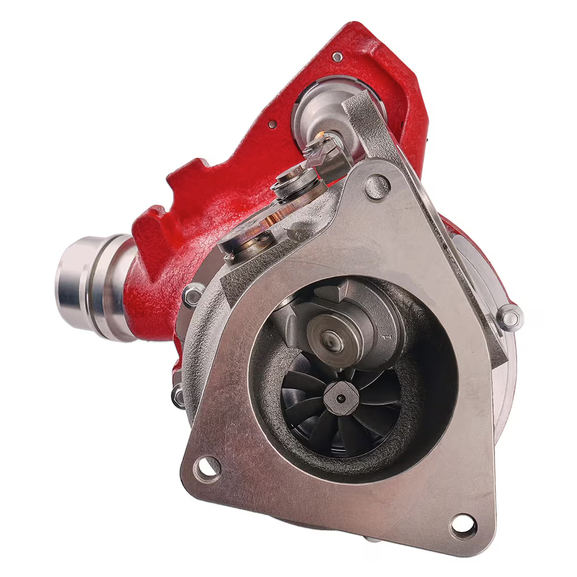

The turbo uses a 9.5 cm² turbine housing and a turbine wheel and housing assembly rated to 1050 °C, providing excellent durability under high exhaust gas temperatures. The housing sizing is chosen to improve flow and efficiency without dulling boost response, so the car remains responsive in everyday driving while pulling harder at higher rpm.

Each IAG 600 Ball Bearing Turbocharger is VSR (Vibration Sorting Rig) balanced to minimise vibration and noise at high shaft speeds. This process helps protect the bearings, improves long-term reliability and contributes to smoother operation under sustained boost.

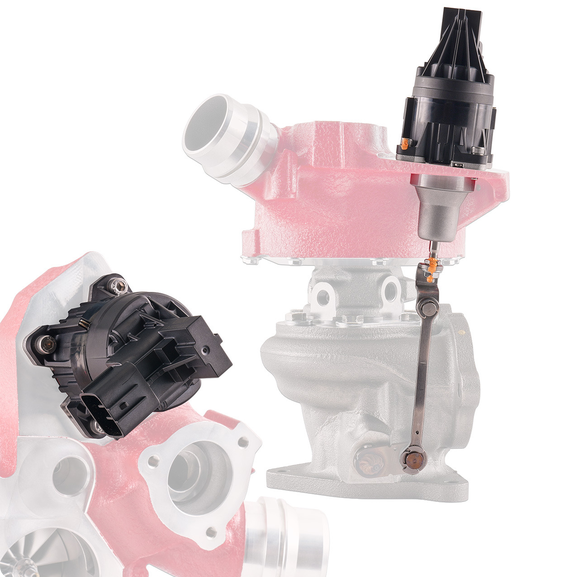

To simplify installation and ensure precise boost control, the turbo is supplied with the IAG Electronic Wastegate actuator pre-installed. This actuator is matched to the turbo’s higher exhaust flow characteristics to help control boost more accurately as pressure builds. The result is reduced boost spikes and a more predictable, linear power delivery across the rev range.

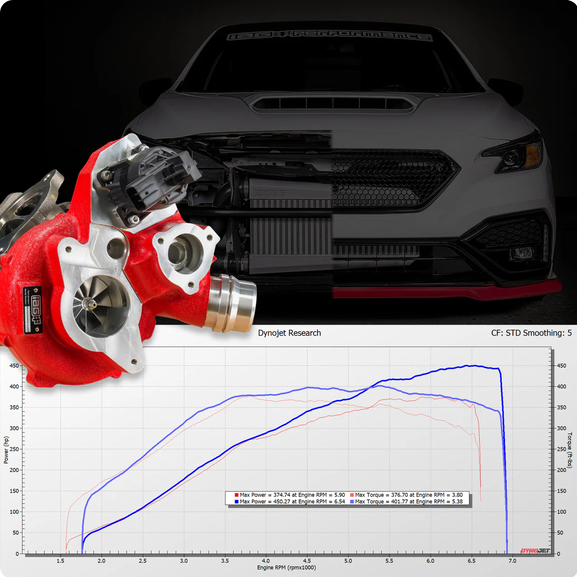

IAG has validated the 600 turbo on its in-house 2022 WRX development car with a stock engine and a typical range of bolt-on modifications, including an ETS cat-back and J-pipe, COBB front mount intercooler and Redline intake, upgraded in-tank fuel pump, and an IAG-spec high-pressure fuel pump by Nostrum, all tuned through a COBB Accessport. On 93 octane fuel the car produced 374 WHP and 376 WTQ, and on E60 fuel it recorded 450 WHP and 401 WTQ. With a built engine and appropriate supporting hardware, the IAG 600 can support up to 600 BHP at the crank.

The kit is supplied ready to install with the IAG Electronic Wastegate and all required hardware, including gaskets, studs and lines, so there is no need to reuse your factory actuator or source additional fittings. This makes the upgrade straightforward for experienced enthusiasts and workshops, reducing downtime and helping get your WRX or Outback XT back on the road or track quickly.

For added peace of mind, the IAG 600 Ball Bearing Turbocharger is backed by a one-year limited warranty against defects in materials and workmanship, starting from the date of purchase, for the original purchaser.

• Direct bolt-on for FA24 WRX / Outback XT

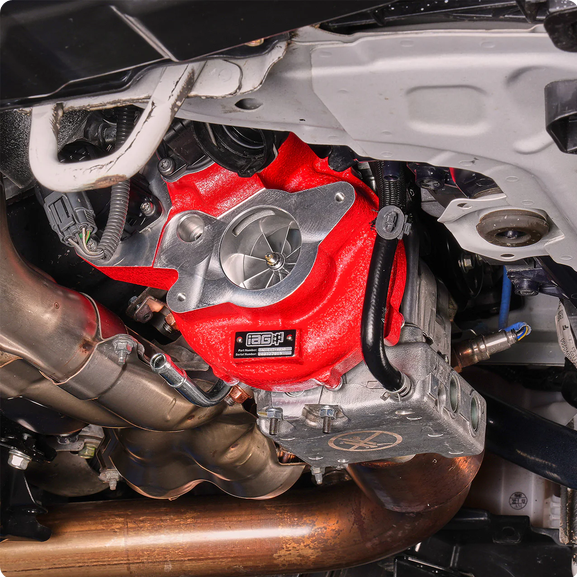

  Designed to install in the factory turbo location on 2022+ Subaru WRX VB VN and Outback XT BT, avoiding major fabrication or custom mounting.
• Up to 600 BHP potential
  With suitable supporting mods, fuel system and ECU calibration, the IAG 600 can support up to 600 crank horsepower while maintaining strong drivability.
• Ball bearing centre section
  Ball bearing CHRA provides improved spool characteristics, reduced friction and enhanced durability under high boost and high shaft speeds.
• High-flow billet compressor wheel
  CNC-machined billet aluminium compressor wheel (54 mm inducer / 67 mm exducer) offers increased airflow and efficiency over the factory cast wheel.
• Optimised turbine design
  54 mm inducer / 49 mm exducer turbine wheel and 9.5 cm² housing balance quick response with higher flow and reduced backpressure.
• High temperature capability
  Turbine wheel and housing rated up to 1050 °C, suitable for demanding street and track environments with elevated exhaust gas temperatures.
• VSR-balanced for smooth operation
  Each turbo is VSR balanced to reduce vibration and noise, promoting long bearing life and consistent performance at high rpm.
• Included IAG Electronic Wastegate
  Pre-installed electronic wastegate actuator delivers accurate boost control, helping to limit spikes and provide stable, predictable power delivery.
• Proven dyno results
  On IAG’s in-house 2022 WRX test car, achieved 374 WHP / 376 WTQ on 93 octane and 450 WHP / 401 WTQ on E60 with a stock engine and common bolt-ons.
• Comprehensive installation hardware
  Supplied with gaskets, studs, lines and fittings, reducing the need for additional parts and streamlining the installation process.
• One-year limited warranty
  Backed by a 12-month limited warranty for the original purchaser against defects in materials and workmanship.

• Manufacturer: IAG Performance
• Product name: IAG 600 Ball Bearing Turbocharger with Wastegate
• SKU: IAG-EXT-4030
• Vehicle compatibility: 2022+ Subaru WRX VB VN / Outback XT BT (FA24 engine)
• Configuration: Direct bolt-on turbocharger replacement
• Centre section: Ball bearing CHRA
• Compressor wheel: CNC billet aluminium, 54 mm inducer / 67 mm exducer
• Turbine wheel: 54 mm inducer / 49 mm exducer
• Turbine housing: 9.5 cm², rated to 1050 °C
• Wastegate: IAG Electronic Wastegate actuator (included, pre-installed)
• Power capability: Up to 600 BHP (with supporting modifications and tuning)
• Example dyno results (IAG test car):
  374 WHP / 376 WTQ on 93 octane
  450 WHP / 401 WTQ on E60
• Fuel and tuning requirements: Aftermarket ECU calibration required; upgraded fuel system recommended for higher power levels
• Warranty: 1-year limited warranty to original purchaser against defects in materials and workmanship

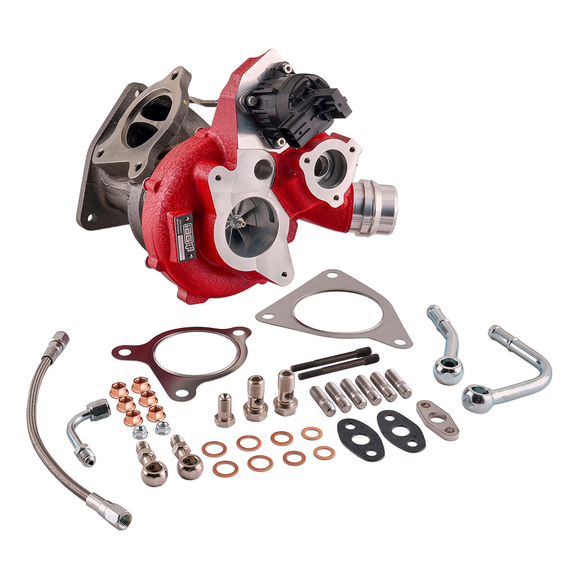

• IAG 600 Ball Bearing Turbocharger assembly
• IAG Electronic Wastegate actuator (pre-installed)
• Turbo inlet gasket
• Turbo outlet / exhaust gaskets
• Exhaust studs with nuts
• Oil feed line and fittings
• Oil catch tank hardware
• Turbo coolant pipes
• Coolant banjo bolts
• Copper sealing washers
