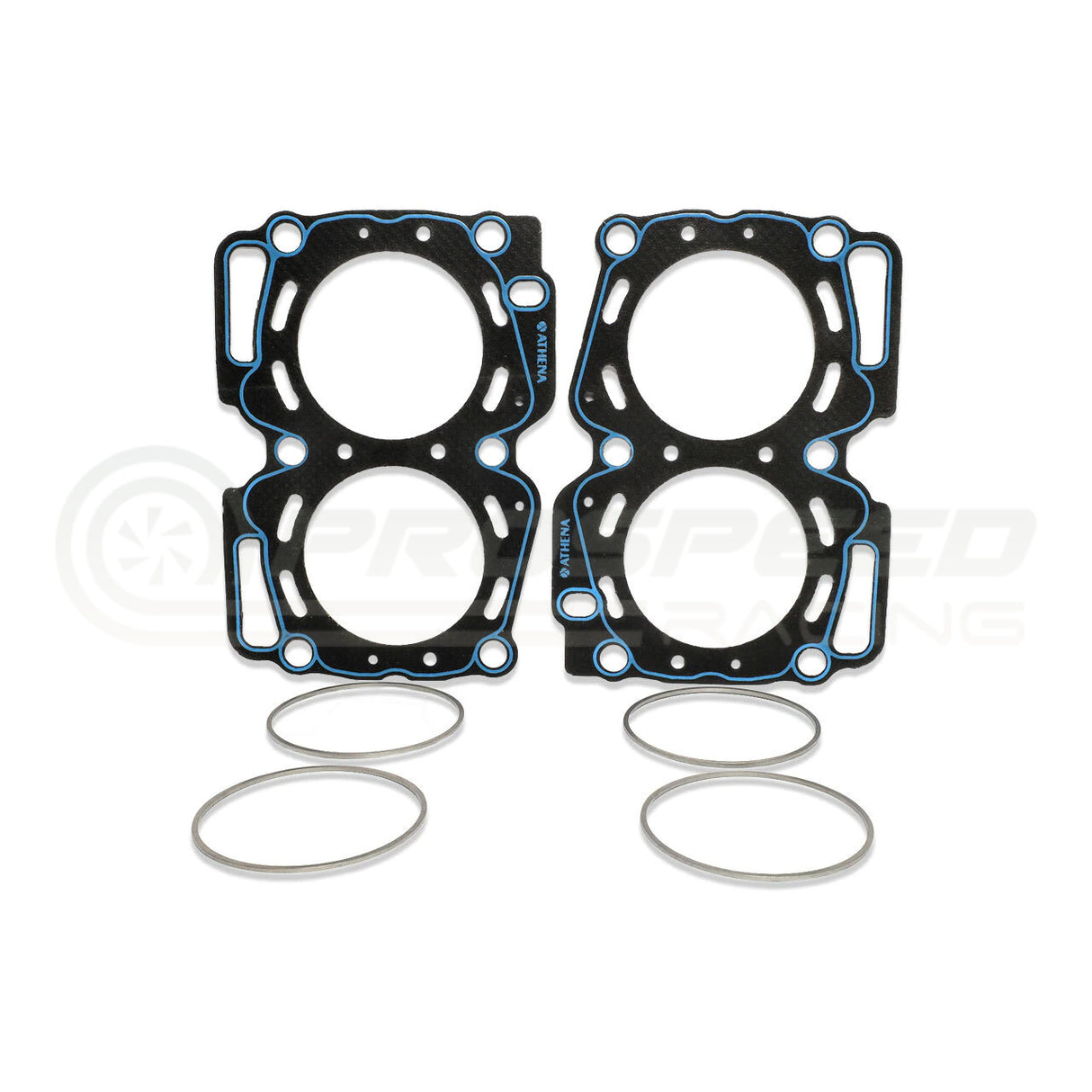

IAG Performance Fire Lock Head Gaskets 93.5mm Bore 1.3mm Thickness PAIR
Subaru WRX/STI/LGT/FXT (EJ20)
In Stock:
This product is in stock & ready to be dispatched.
Limited Stock Available:
Stock is running low. Order soon to avoid missing out!
Almost Gone:
Stock is critically low! This product may sell out soon.
Incoming:
Product will be in stock soon.
Usually Ships In:
This product is out of stock and will usually ship in the timeframe displayed.
Sold Out:
This product is currently out of stock.
Request ETA
$659.95
Unit price /
Unavailable
Bidit helps you and Pro Speed Racing agree on a price. You set the price and Pro Speed Racing checks if they can accept your offer. You aren't competing with anyone else.

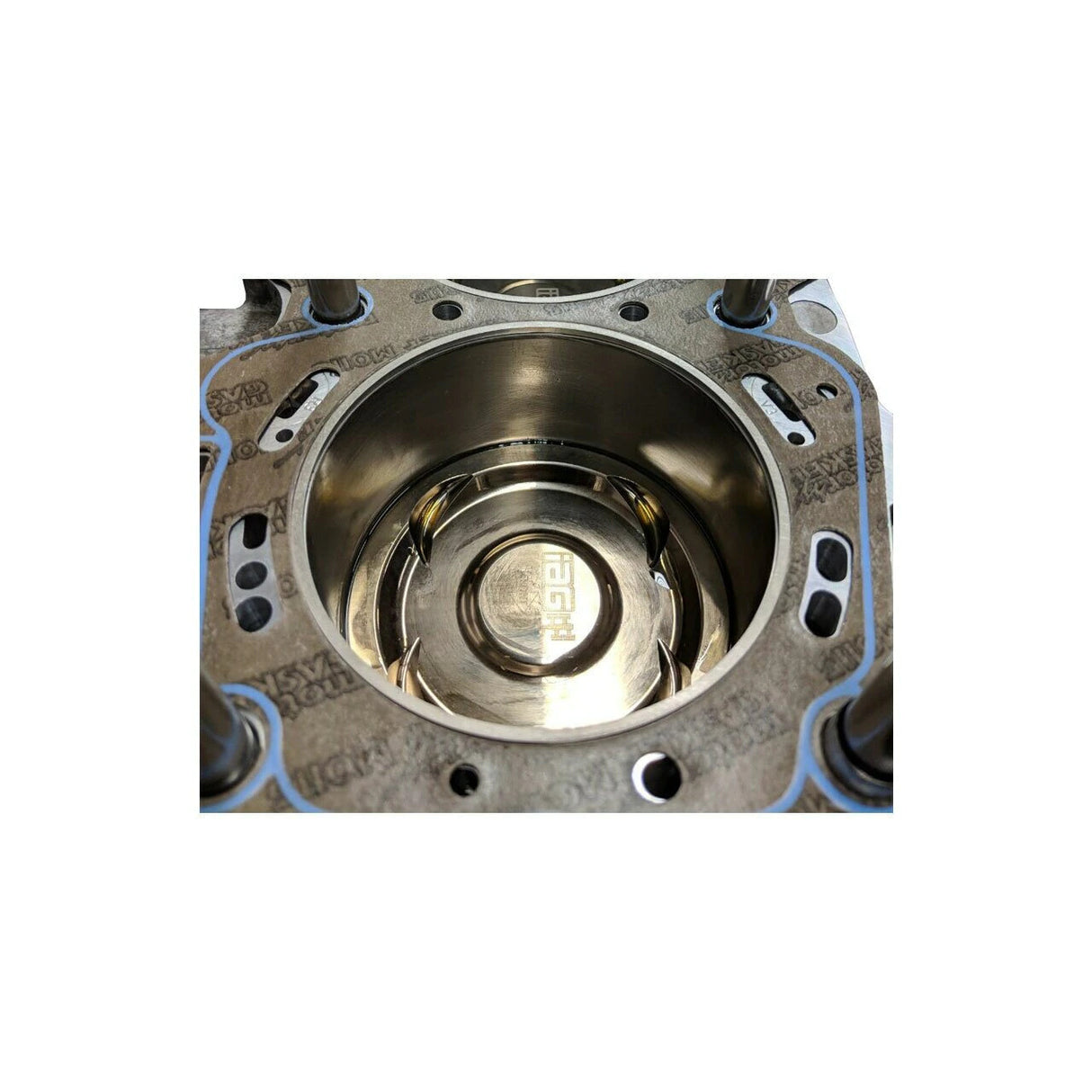

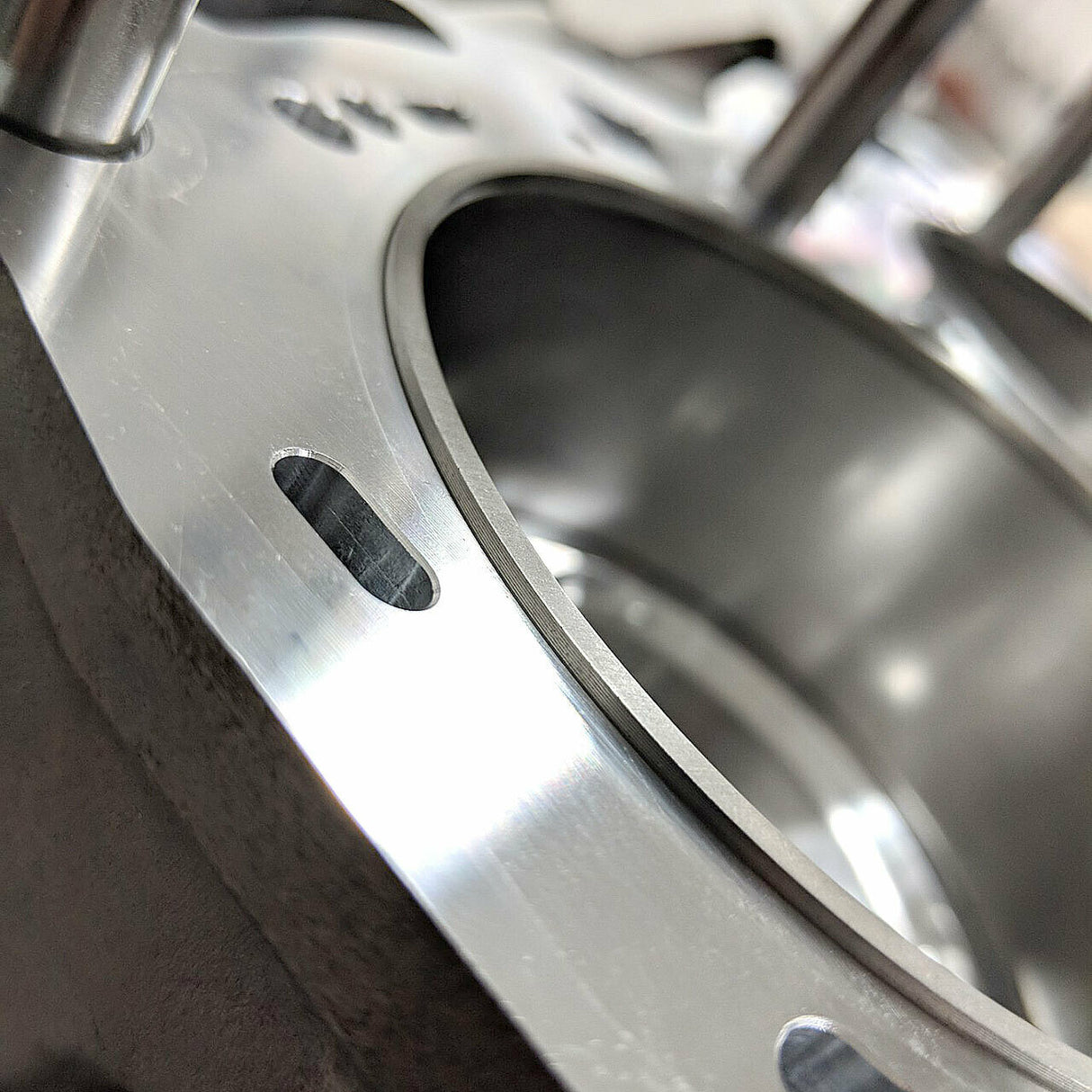

The IAG Performance Fire-Lock head gasket solution was created after years of research and development testing to prevent head gasket failure on high horsepower and high boost Subaru EJ Series engines. This solution is loosely derived from diesel technology where a counterbore step is machined around each cylinder bore allowing specially sized fire rings to drop into the machined area and head gasket bores. The shims are designed to create a compression seal once the heads are installed and torqued into place. IAG fire rings are manufactured to a very strict tolerance from a proprietary alloy and are then put through a heat treatment process. The gaskets are manufactured from an asbestos-free composite raw material and feature a silicone based beading applied to critical areas to improve sealing around all water and oil passages. The combination of the alloy compression shims and gaskets assure maximum sealing for a Subaru EJ20 turbocharged engine.
*The IAG Fire-Lock gaskets require machine work for installation and are recommended for use with 14mm head stud hardware.
*The gaskets are sold in pairs with four Fire-Lock rings.
Features:
Composite Material
IAG-Spec Alloy Ring
Specifically designed for 14mm Head Studs
Silicone Beading
93.50mm Bore
.051" Thickness
Intended for High Horsepower, High Boost applications
IAG ARP 14mm Head Studs Required
Gaskets sold in pairs
Install Notes:
If a block or cylinder head was previously o-ringed the groove must be filled and resurfaced before using this type of gasket.
These gaskets require IAG ARP 14mm head studs to achieve the required torque necessary for proper installation.
Due to the required torque, any block that was previously honed will need to go to the next size overbore.
Future servicing will require cylinder head resurfacing due to an imprint left from the Fire-lock rings.
