 |  SKU: IAG-ENG-S550

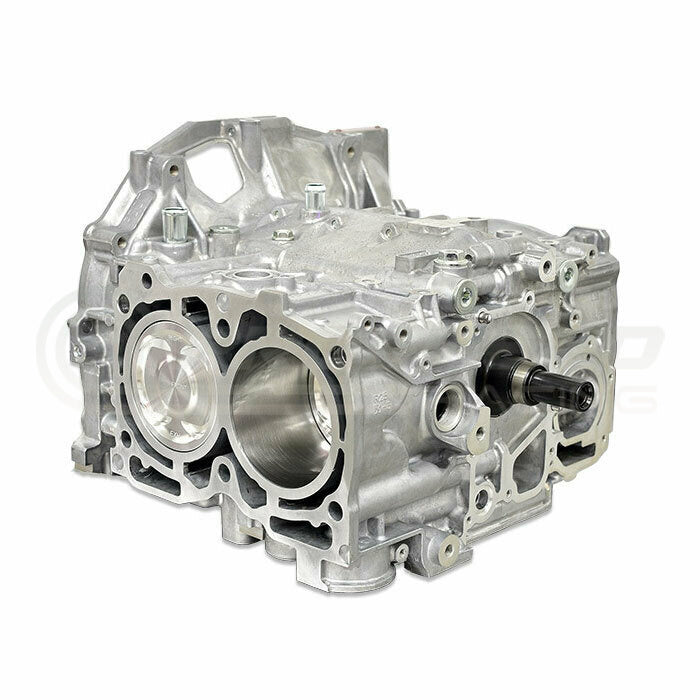

IAG Performance 550 EJ25 Short Block

Subaru WRX/STI/LGT/FXT
$7,985.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
IMPORTANT : SPECIAL NOTES APPLY TO VEHICLE FITMENT FOR THIS PRODUCT, CLICK HERE TO VIEW

Description

IAG 550 EJ25 2.5L SUBARU SHORT BLOCK FOR 01-14 WRX, 01-21 STI, 03-13 FXT, 04-09 LGT

POWER RATING

The IAG 550 Short Block has a power output rating of 550BHP.

BUILT WITH 100% NEW COMPONENTS

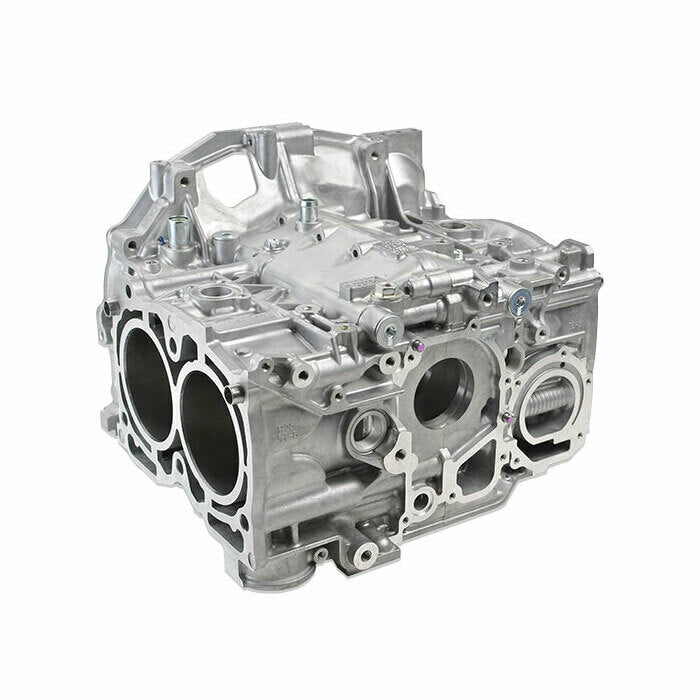

Each IAG 550 Short Block starts with brand new EJ25 Subaru 2.5L, 99.5mm stock bore engine case halves as standard. The case haves are carefullly measured and assembled using a new 2017+ Subaru 2.5L nitride treated STI crankshaft, which is matched to ACL or King race main bearings. The IAG 550 Short Block features IAG Spec H-Beam Connecting Rods with ARP2000 rod bolts, along with ACL or King race rod bearings. The case halves are sealed with new OEM main case bolts and sealant. Finally, IAG Spec JE 99.5mm Forged Pistons are carefully selected, measured, and installed to finish off the short block.

DESIGNED FOR STRENGTH

The IAG 550 Short Block is designed for modified EJ25 Subarus that need a stronger short block to support increased cylinder pressures created by additional boost pressure. The IAG 550 short block features IAG Spec H-Beam forged connecting rods. The upgraded connecting rods and race bearings are able to support additional engine load produced by larger turbochargers or increased boost which the OEM STI rods found in the Stock short blocks cannot support reliably.

FORGED PISTONS, DESIGNED FOR BOOST

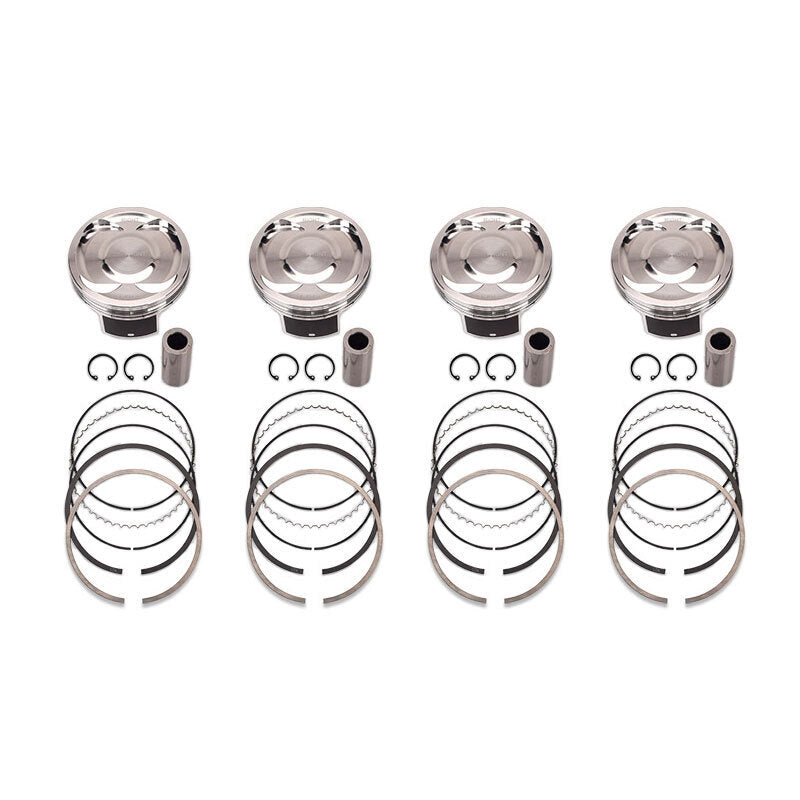

Each IAG 550 Short Block features IAG Spec JE 99.5mm Forged Pistons. These 2618 T6 Alloy high-strength pistons have been specifically designed to support increased cylinder pressures which come with more boost. This is accomplished by using an asymmetrical skirt design instead of the traditional full-round skirt, also this reduces weight significantly. Featuring smooth flowing radii on the domes and dishes, the design promotes excellent flame travel. The pistons are secured to the rods with .905 x 2.250" x .180" wall carbon steel wrist pins with Tru Arc locks.





IAG 550 Short Block Includes:

  • Case Halves - Brand new Subaru OEM case halves 99.5mm stock bore
  • Pistons - IAG-Spec JE 99.5mm Forged Pistons, Ring Set, .180" Chromoly Pins, Clips, (Perfect Skirt Coating and Offset Wrist Pin)

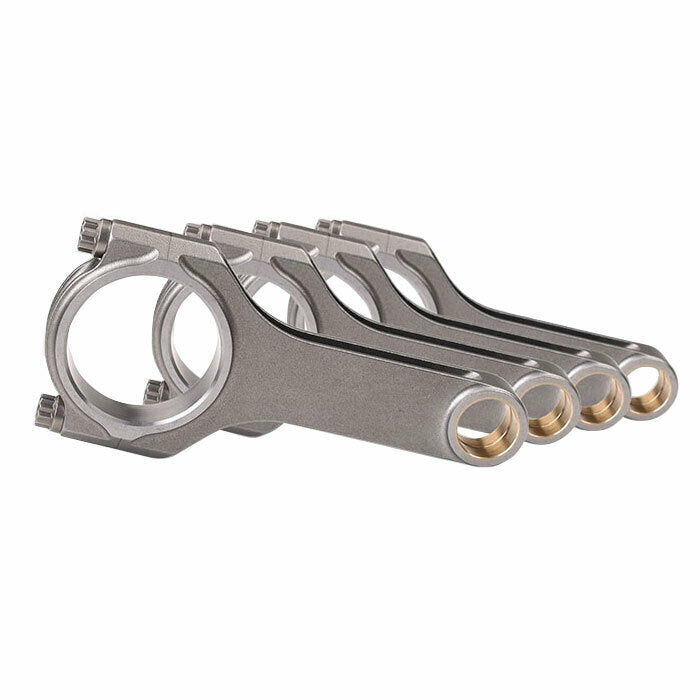

  • Connecting Rods - IAG-Spec H-Beam Rods with ARP2000 rod bolts
  • Rod / Main Bearings - ACL or King Race Bearings

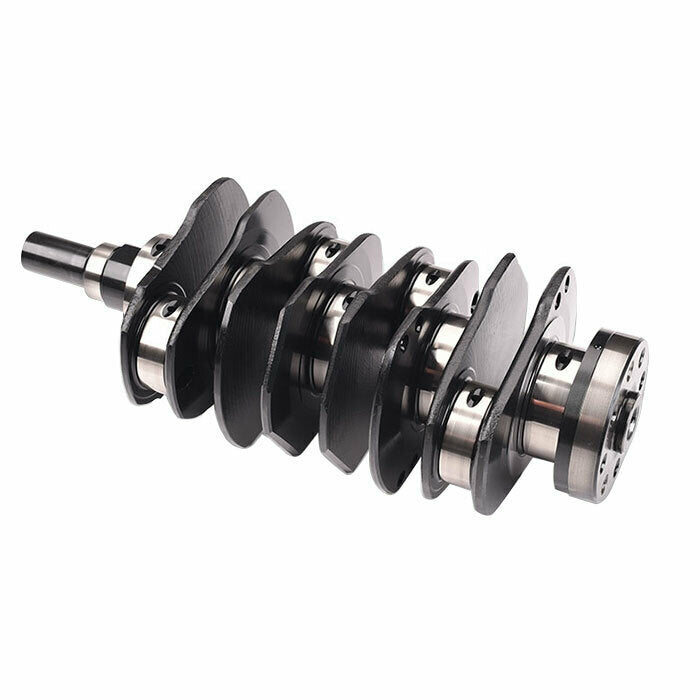

  • Crankshaft - Standard New Subaru Nitride Treated 2017+ STI Crankshaft
  • Case / Main Bolts - Standard FHI Subaru case bolt
  • Compression Ratio: 8.5:1 on D Cylinder Heads (EJ255), 8.2:1 on B, V, and W EJ257 Heads with standard thickness gasket.





Vehicle Fitment:

Additional hardware may be required to install this long block to the following vehicles, including but no limited to ECU, Sensors, Ancillaries, Covers, Pumps etc.

  • 1999-2014 Subaru WRX (w/EJ25 Heads)
  • 1999-2021 Subaru STI (w/EJ25 Heads)
  • 1997-2013 Subaru Forester XT (w/EJ25 Heads)
  • 2004-2009 Subaru Liberty GT (w/EJ25 Heads)
  • 2004-2009 Subaru Outback XT (w/EJ25 Heads)

Installation Instructions

Please review the PDF document below regarding installation, break-in procedures and warranty information.

PDF After Sale Document - Contains Shipping, Engine Care and Warranty Information

Fitment Table

Fitment Notes

General Notes:

  • EJ20 vehicles will require the use of EJ25 heads for fitment
  • Additional hardware may be required to install this short block, including but not limited to ECU, Sensors, Ancillaries, Covers, Pumps etc.
