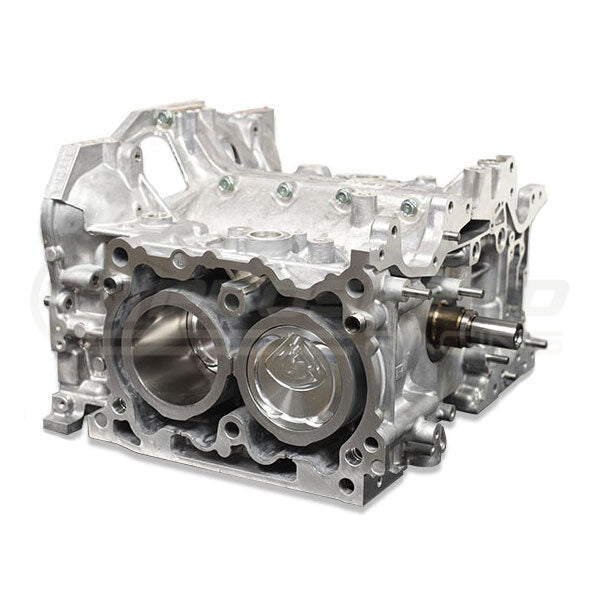

IAG 600 FA20 86/BRZ 2.0L SUBARU SHORT BLOCK WITH 10.5:1 LOW COMPRESSION
POWER RATING
The IAG 600 Long Block has a power output rating of 600BHP.
DESIGNED FOR STRENGTH
The IAG 600 Short Block is designed for stock or modified FA20 Subaru BRZs that need a stronger short block to support increased cylinder pressures created by modifications, or aftermarket turbo kits. The IAG 600 short block features IAG Spec H-Beam forged connecting rods. The upgraded connecting rods and race bearings are able to support additional engine load produced by aftermarket turbochargers or increased boost which the OEM rods and pistons found in the stock short blocks cannot support reliably.
BUILT WITH 100% NEW COMPONENTS
Each IAG 600 Short Block starts with brand new FA20 BRZ/FT86 2.0L, 86mm stock bore engine case halves as standard. The case haves are carefullly bored and honed to 86.1mm then measured and assembled using a new 2015+ Subaru 2.0L FA20 crankshaft, which is matched to ACL or King race main bearings. The IAG 600 Short Block features IAG Spec H-Beam Connecting Rods with ARP2000 rod bolts, along with ACL or King race rod bearings. The case halves are sealed with new OEM main case bolts and sealant. Finally, IAG Spec JE FSR 86.1mm Forged Pistons are carefully selected, measured, and installed to finish off the short block.
MODIFIED OIL PASSAGES FOR INCREASED OILING
Adequate oil flow is critical to performance and relibility. It's no secret that the OEM cases from Subaru leave something to be desired in the oiling department. Our machinists carefully inspect and modify the internal oil passages of each new OEM case used in the IAG 600 Short Block to ensure proper flow and reliability.
QUALITY GUARANTEED
We stand behind every hand-built engine we produce. IAG's Standard Long Block Workmanship Warranty covers your long block for 12 months or 12,000 miles.
IAG 600 FA20 2.0L FT86/BRZ Low Compression Short Block Includes:

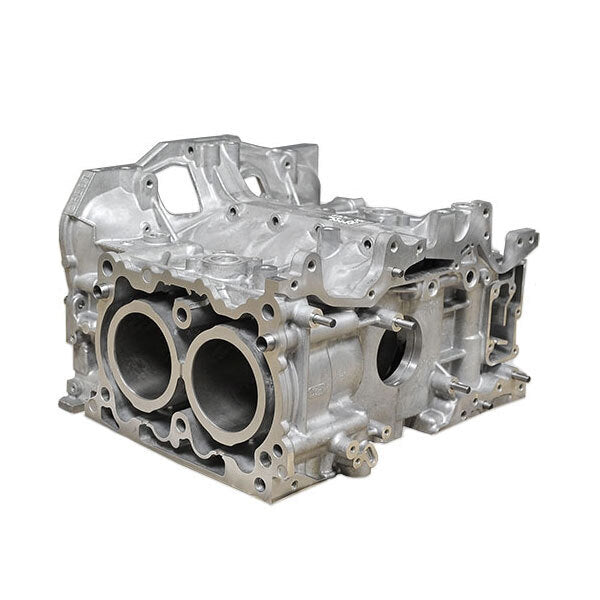

Case Halves - Brand new OEM Subaru FA20 case halves, bored and honed to 86.1mm
Case Machining - Modified for improved oiling
Case Machining - Bored and honed to 86.1mm

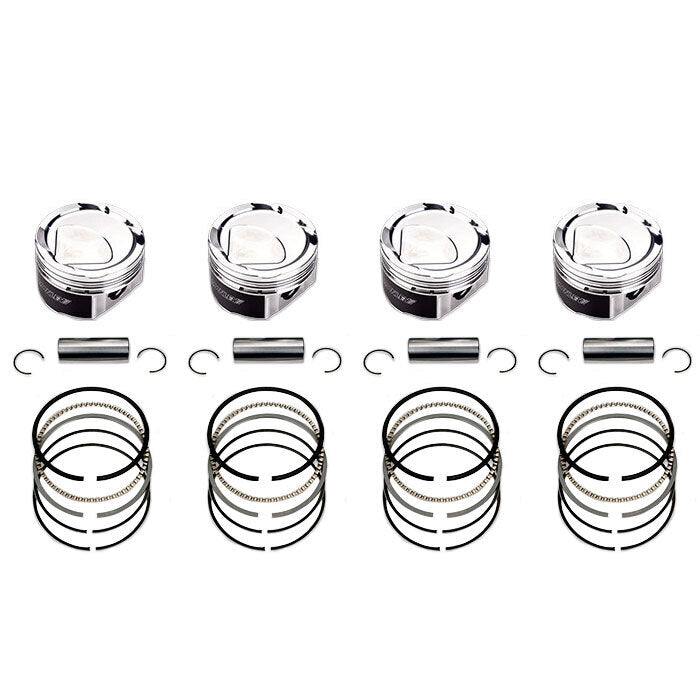

Pistons - IAG-Spec 86.1mm Forged Pistons, Ring Set, and .150" x 2.250" Chromoly Wrist Pins. 10.5:1 Compression

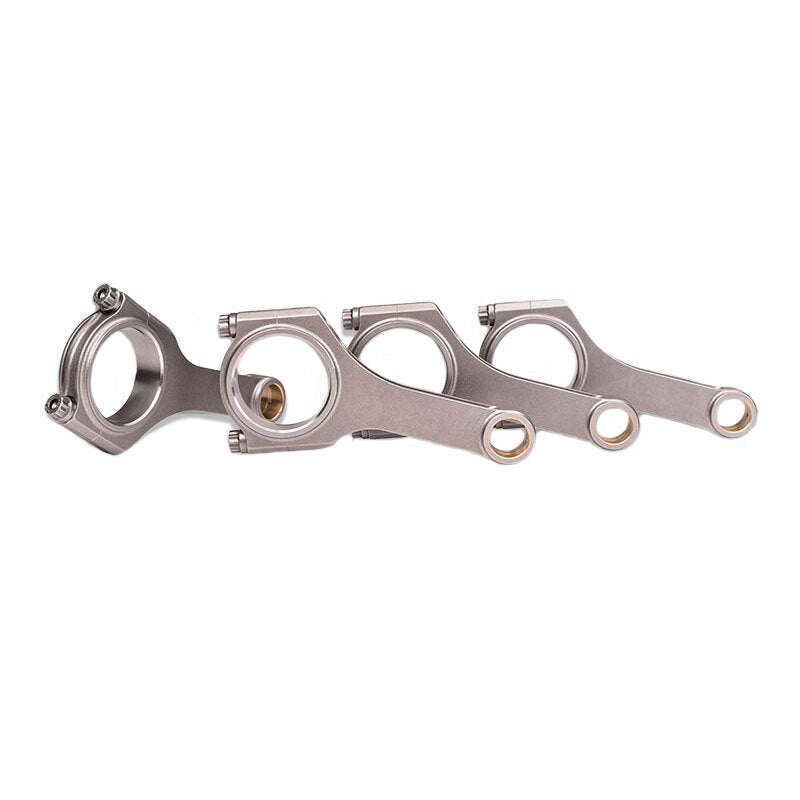

Connecting Rods - IAG-Spec H-Beam / ARP2000 Rod Bolts
Rod - ACL or King XPG
Main Bearings -OEM or King XPG

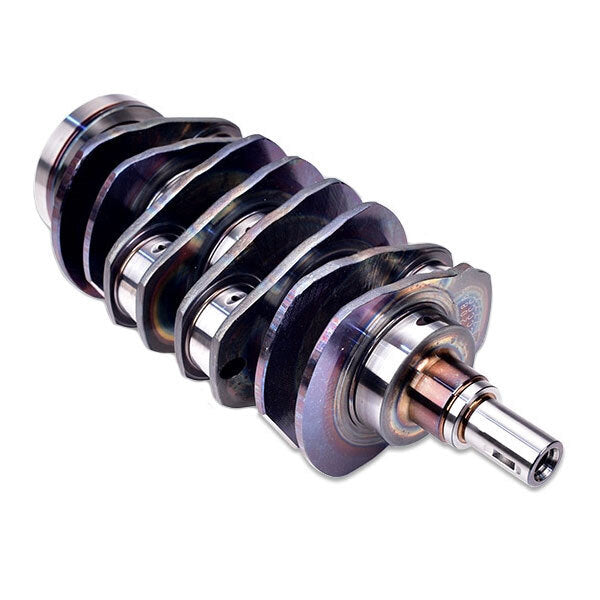

Crankshaft - New Subaru FA20 crankshaft
Case / Main Bolts - Standard Subaru case bolts

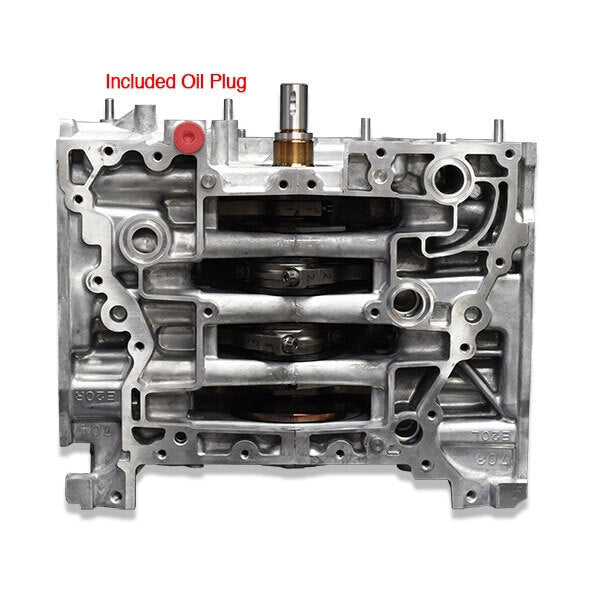

Hardware - OEM Oil Plug - comes preinstalled at the oil pan location
Compression Ratio:
10.5:1 compression on standard gasket thickness.
Vehicle Fitment:
Additional hardware may be required to install this long block to the following vehicles, including but no limited to ECU, Sensors, Ancillaries, Covers, Pumps etc.
2012-2021 Subaru BRZ ZC6
2012-2021 Toyota 86 ZN6
