 |  SKU: IAG-ENG-H600E

IAG Performance Street Cylinder Head Package

Subaru WRX VA 15-21
$6,099.95
Loaded W/cams
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

IAG 600 STREET CYLINDER HEADS PACKAGE FOR 2015-2021 SUBARU WRX



POWER RATING

The IAG 600 Cylinder Head Package has a power output rating of 600 BHP

ENTRY-LEVEL STOCK REPLACEMENT HEADS

The IAG 600 Cylinder Heads are designed to function as an entry-level replacement for stock OEM 2015-2021 Subaru WRX heads. If your engine has suffered a catastrophic failure which requires replacement of your cylinder heads, or if you don't have OEM heads to start with, the IAG 600 Cylinder Heads are a perfect solution. These heads also work great for cars with basic bolt-on parts up to 600 BHP. These heads include upgraded GSC standard size valves, GSC Viton Valve Stem Seals, Kelford Valve Springs with Titanium Retainers, and OEM Keepers. FA20 Heads are configured differently from their EJ counterparts. In FA20 heads the casting is split into two parts, the "lower" and the "cam towers." As the name suggests, the "Cam Towers" hold the camshafts to the cylinder head. Kelford EZ cams are available with IAG 600 Street Cylinder Heads. When Kelford cams are chosen we also include new OEM cam towers, rockers, pivots, and valve shim caps.

BUILT WITH 100% NEW COMPONENTS

Each IAG 600 FA20 DIT Cylinder Head Set starts with new OEM castings from Subaru of America. Next, you'll select whether or not you want to include our optional Kelford camshaft package. If selected, these heads will include Kelford EZ camshafts as well as new OEM cam towers, rockers, pivots, and valve shim caps.

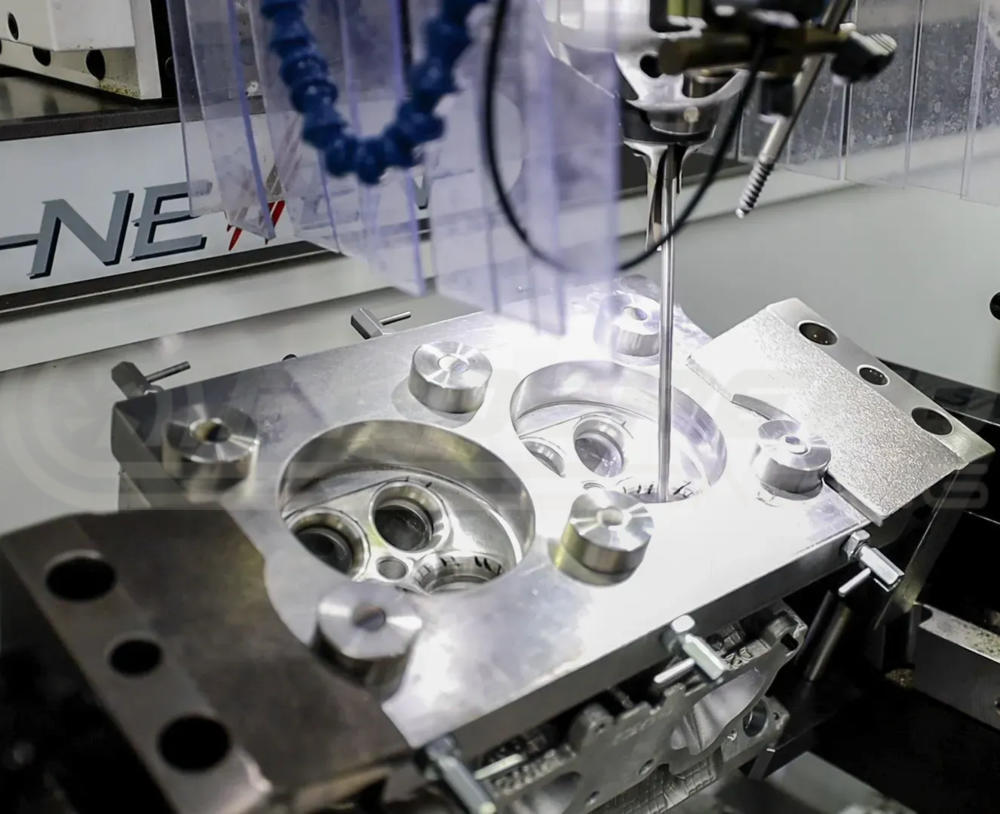

he new castings are visually inspected and disassembled. Then the heads are fixtured in our Newen Valve Guide and Seat Machine to cut all intake and exhaust seats with a multi-angle valve job that suits the flow characteristics of GSC's standard size 34mm Intake and 29mm Exhaust valves. At this point, the heads' decks are resurfaced using our TS-3000 BlockMate, which cuts the aluminum to a smooth, even finish. Next, the heads are ultrasonically cleaned to remove debris and oils from the machining process. Finally, the heads are reassembled using GSC Stainless Intake and Exhaust Valves, GSC Viton stem seals, Kelford Dual Valve Springs with Titanium Retainers, and OEM Valve Keepers.

OPTIONAL LOADED KELFORD "EZ" CAMSHAFT AND LIFTER PACKAGE

If you're planning for more power you'll want to select these Kelford EZ camshafts for your IAG 600 Head Package. These will not drop any low end power, and will create more power and torque across the entire RPM range. These are perfect for stock frame upgraded turbos or up to 500 WHP upgrades. Along with the camshafts we'll include all new OEM cam towers, rockers, pivots, and valve shim caps. Finally, We'll take care of setting bench lash using our specially designed fixture. (FINAL LASH SHOULD BE CHECKED AND ADJUSTED ONCE HEADS ARE INSTALLED)

QUALITY GUARANTEED

We stand behind every hand-built engine we produce. IAG's Standard Short Block Workmanship Warranty covers your short block for 12 months or 12,000 miles.

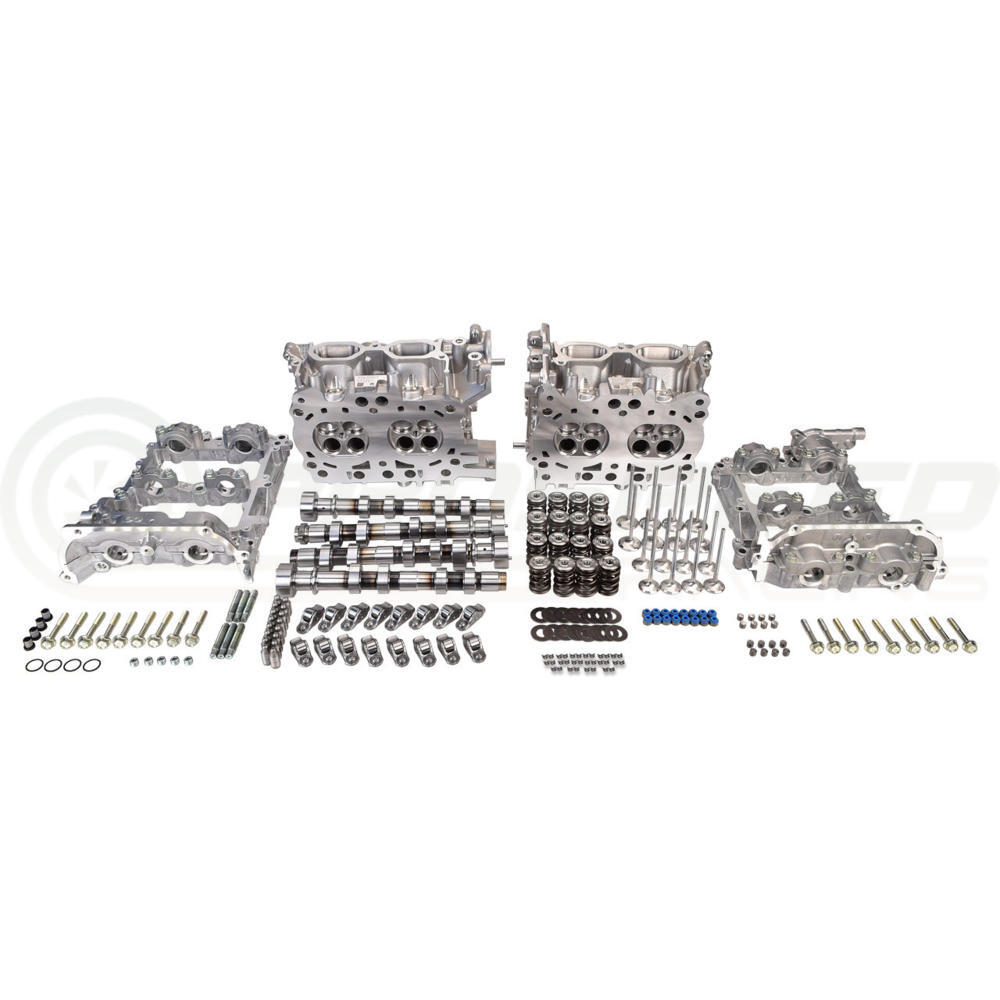

IAG 600 Street Cylinder Head Package Includes:

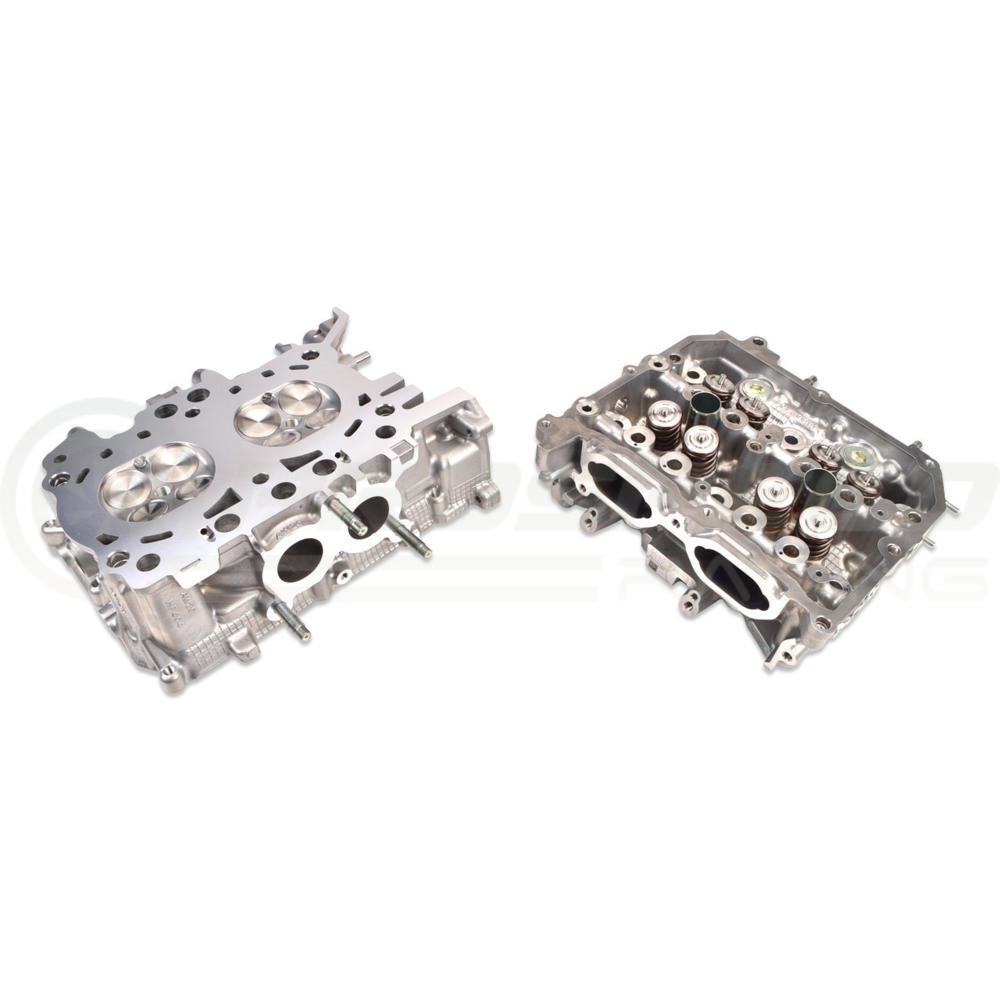

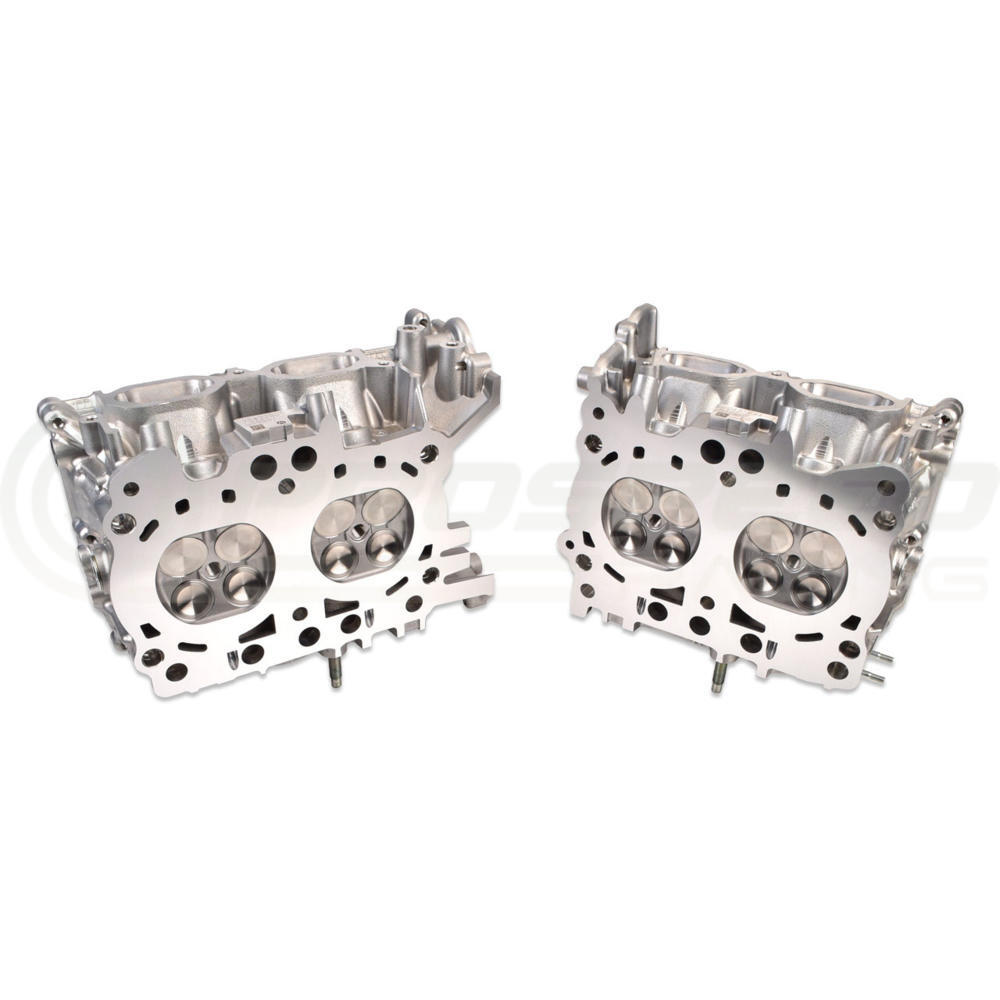

  • (x2) Brand New Subaru OEM WRX FA20 Cylinder Head Castings
  • Multi-Angle Valve Job
  • Resurface
  • Ultrasonic Cleaning

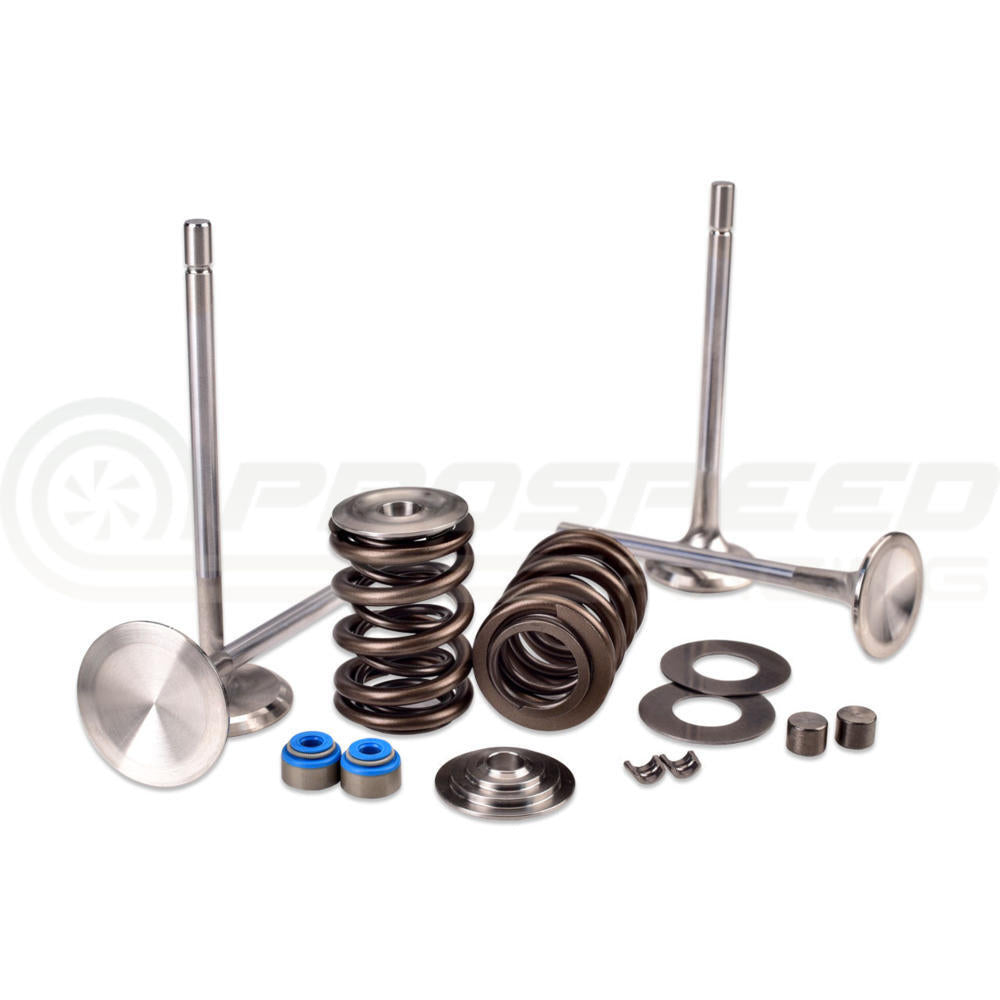

  • (x8) GSC 32mm (Standard) Intake Valves
  • (x8) GSC 29mm (Standard) Exhaust Valves

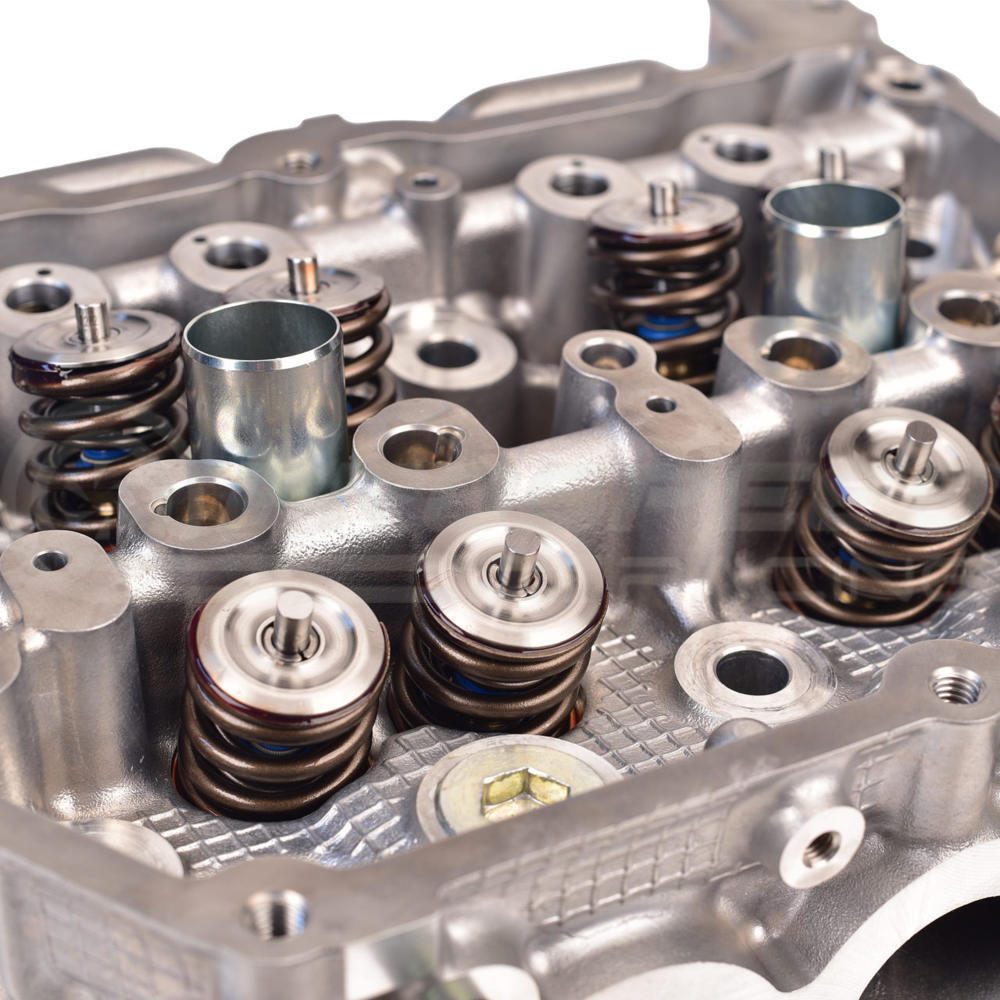

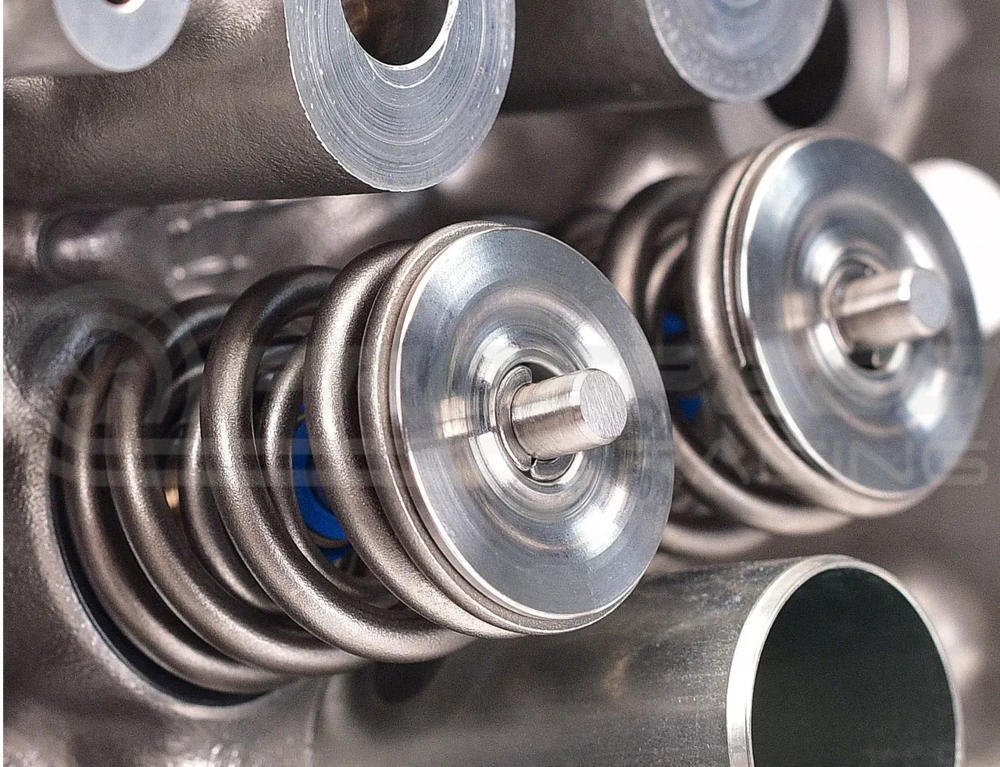

  • (x16) Kelford Dual Valve Springs & Titanium Retainers
  • (x16) GSC Valve Stem Seals

Optional Camshaft Package Also Includes:

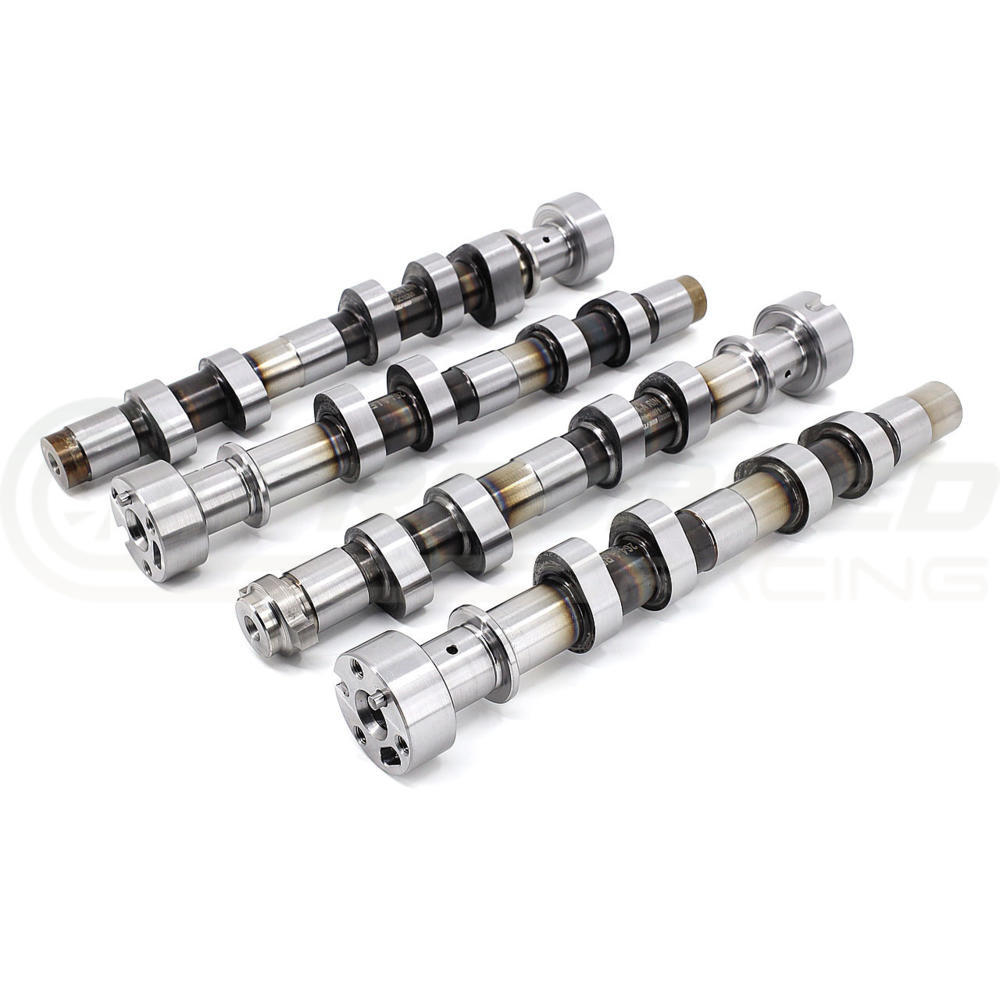

  • Kelford EZ Camshafts
  • (x2) OEM Cam Towers & Hardware
  • (x16) OEM Rocker Pivots
  • (x16) OEM Lifters
  • (x16) OEM Valve Lash Caps
  • Bench Valve Lash Service (Final Lash Should be Checked and Adjusted Once Heads are Installed)





Vehicle Fitment:

  • 2015-2021 Subaru WRX VA

Installation Instructions

Please review the PDF document below regarding installation, break-in procedures and warranty information.

PDF After Sale Document - Contains Shipping, Engine Care and Warranty Information

  • For use with stock cams or mild duration cams
  • Assembly and professional installation recommended.
  • Workmanship/parts warranty will only be available for professionally installed cylinder heads.
