 |  SKU: 1050.34.14.14

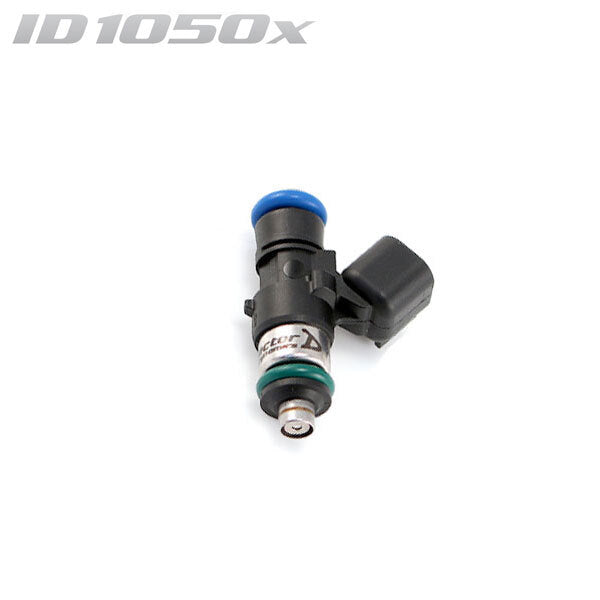

Injector Dynamics ID1050-XDS 34mm Single Injector w/14mm Top & 14mm Lower O-Ring

Universal
$239.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Short-body engines running ID1050-XDS injectors with 14mm O-rings top and bottom can replace or back up a single cylinder with this universal 34mm Injector Dynamics ID1050-XDS single. Sold individually, it's the spare or replacement that means one tired cylinder doesn't park the car.

Pro Speed Racing, official Main Wholesale Distributor for Injector Dynamics in Australia and New Zealand, lists it with the brand's other short, mid and long-body injectors in the Injector Dynamics catalogue, alongside its wider range of performance car parts.

What you're buying

  • Part number 1050.34.14.14
  • One ID1050-XDS injector

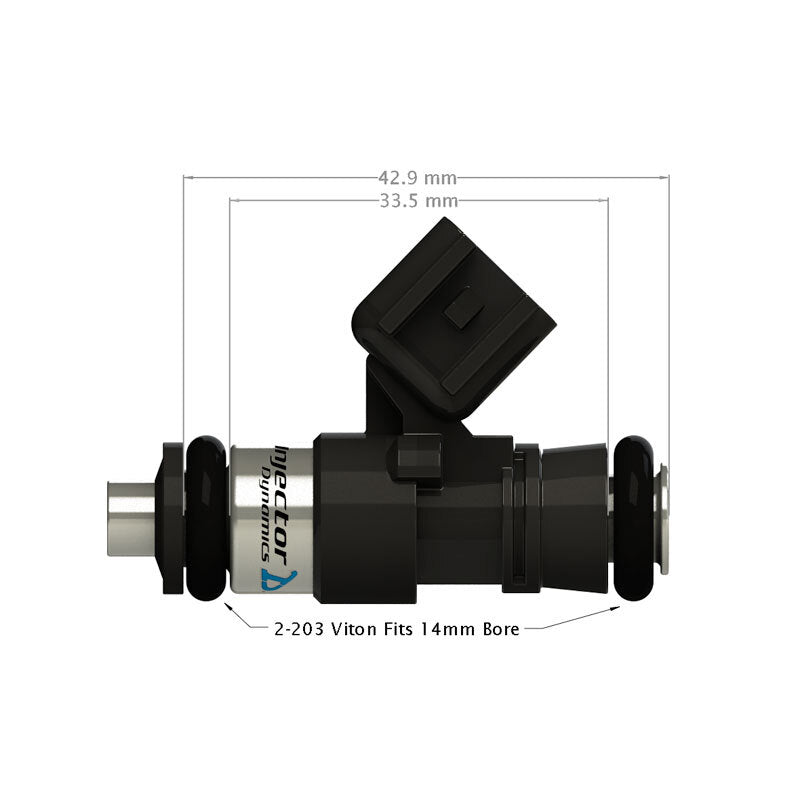

  • 34mm body length
  • 14mm top and lower O-rings

Rated flow, pressure and connector info is in the Technical Specifications panel below.

Short body, full feature set

The compact body is part of what lets the ID1050-XDS fit more than 200 applications, short-body engines included, according to Injector Dynamics. It keeps the full specification from its Bosch Motorsport development: a flow path that adds about 5% output, a magnetic circuit that stays stable to its rated pressure, corrosion-resistant internals for every known fuel, and a replaceable inlet filter.

Replacing one or all

Compare length and O-ring sizes with the injector coming out, and check the Vehicle Fitment tab, as some vehicles take more than one size. Doing a full V8 refresh instead? The ID1050-XDS 34mm set of eight has the same 14mm top and lower, and saves ordering them one by one.

Technical Specifications

  • Nominal Flow Rate: 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
  • Maximum Differential Fuel Pressure: 10.0 Bar (145.0 psi)
  • Fuel Compatibility: Compatible With All Known Fuels
  • Electrical Connector: USCAR
