 |  SKU: 1050.48.11.14

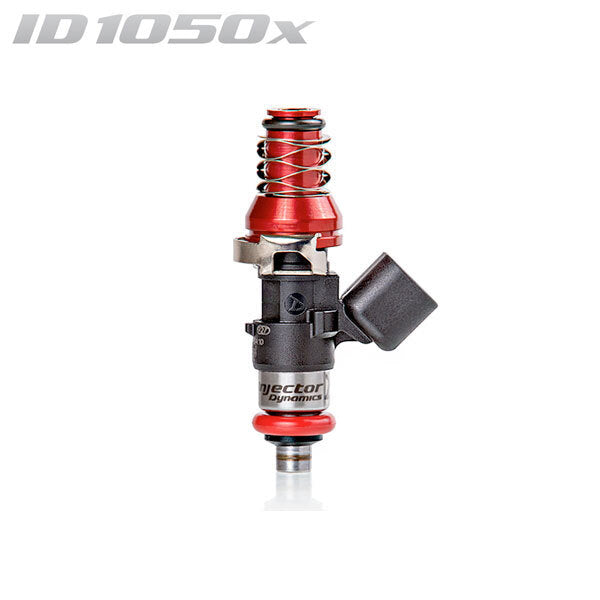

ID1050-XDS Injector Single, 48mm Length, 11mm Red Adaptor Top, 14mm Lower O-Ring

Universal
$244.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

One Injector Dynamics ID1050-XDS injector with a 48mm body, an 11mm red adaptor top and a 14mm lower O-ring, sold as a universal single. Use it to replace a failed injector, keep a spare in the toolbox, or build up a set one at a time.

Pro Speed Racing holds the official Main Wholesale Distributor role for Injector Dynamics across Australia and New Zealand. The Injector Dynamics range covers sets and other configurations, and sits with Pro Speed's other performance parts.

Single injector specs

  • Part number 1050.48.11.14
  • Quantity: 1
  • 48mm length

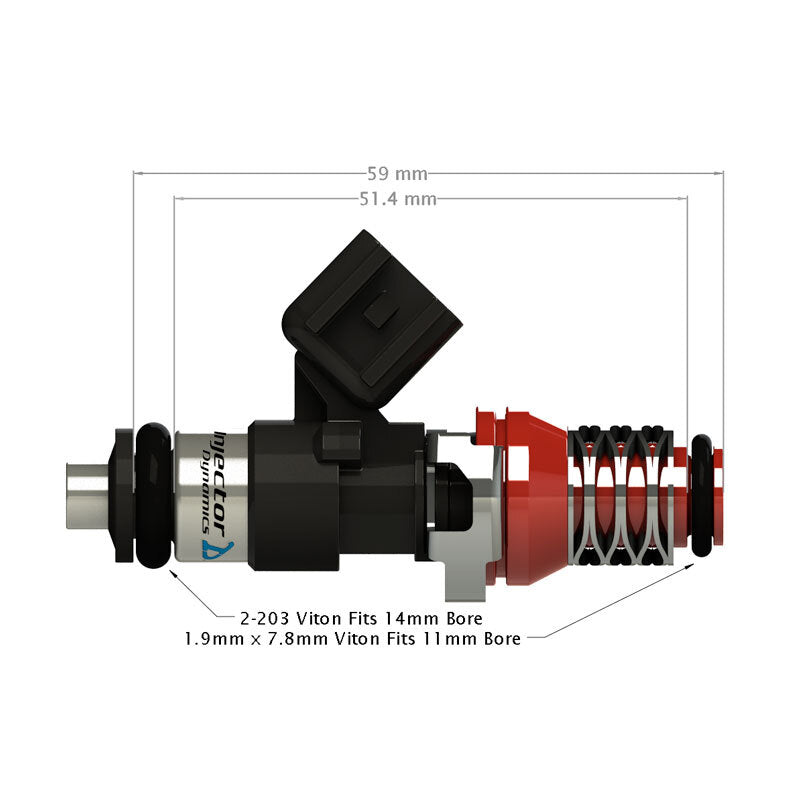

  • 11mm red adaptor top, 14mm lower O-ring

Flow rate, pressure rating and the connector type for this single are under Technical Specifications below.

Service life on any fuel

Injector Dynamics specifies corrosion-resistant internals for the ID1050-XDS, so it is compatible with all known fuels and built for extended service on corrosive ones like ethanol. The brand also made the inlet filter replaceable, which means a clogged screen doesn't retire the injector. The design came out of its Bosch Motorsport partnership, with a stronger magnetic circuit rated for stable running up to its maximum fuel pressure.

Getting the right one

Check the length and both seal sizes against the injector being replaced, and see the Vehicle Fitment tab, as some engines take more than one size. One wrong O-ring and you're back at the counter, so measure twice. Looking for more flow at 48mm? The ID1300-XDS 48mm single uses a 14mm grey adaptor top and 14mm lower O-ring, so confirm that top suits your fuel rail.

Technical Specifications

  • Nominal Flow Rate: 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
  • Maximum Differential Fuel Pressure: 10.0 Bar (145.0 psi)
  • Fuel Compatibility: Compatible With All Known Fuels
  • Electrical Connector: USCAR
