 |  SKU: 1050.60.11.14-O

Injector Dynamics ID1050-XDS 60mm Single Injector w/11mm Blue Adaptor Top, 14mm Lower O-Ring w/O-Ring Retainer

Universal
$244.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

This single Injector Dynamics ID1050-XDS injector combines a 60mm body, an 11mm blue adaptor top and a 14mm lower O-ring held by an O-ring retainer, sold as a universal part. It's a replacement or spare for engines that use the long body with this top and a retained lower seal.

Injector Dynamics is the manufacturer. Pro Speed Racing is the official Main Wholesale Distributor in Australia and New Zealand, with the full Injector Dynamics range available locally. Pro Speed's other performance parts are worth a browse too.

Body and seals

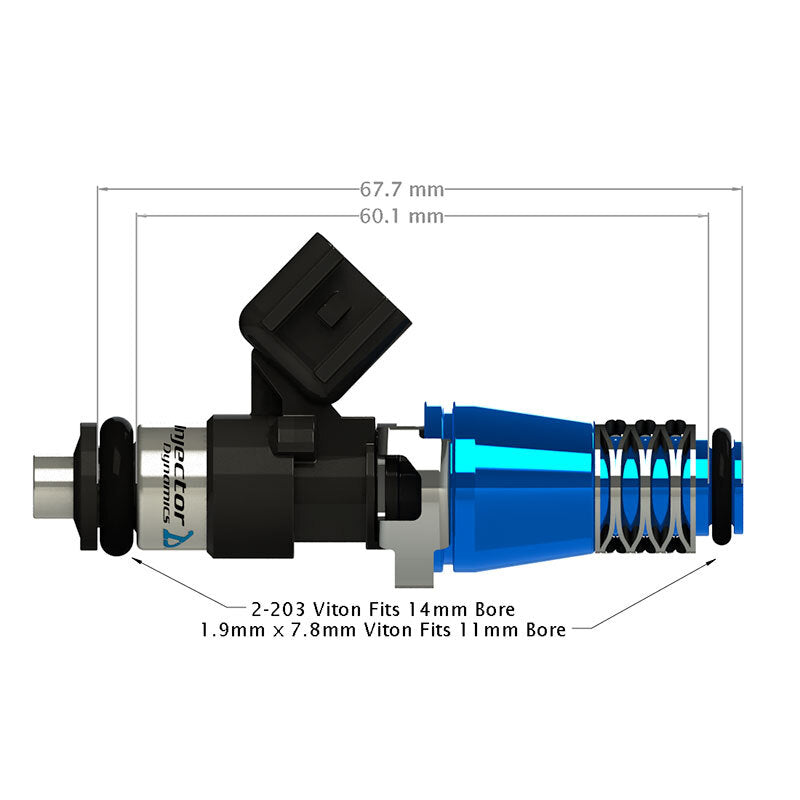

  • Part number 1050.60.11.14-O
  • One ID1050-XDS
  • 60mm length
  • 11mm blue adaptor top
  • 14mm lower O-ring with O-ring retainer

The Technical Specifications panel underneath lists flow rate, maximum fuel pressure and connector.

Inside the ID1050-XDS

Injector Dynamics calls the ID1050-XDS a built-to-spec motorsport injector rather than a modified production part. The magnetic circuit is stronger than before and stays stable up to its rated maximum pressure, and a reworked flow path brings about 5% more output without hurting low-flow precision. Corrosion-resistant internals give compatibility with all known fuels, and the replaceable inlet filter helps the injector go the distance. Long body, long service life.

Checks before ordering

Compare the length, top and lower against the injector being replaced, including whether it uses a retainer, and check the Vehicle Fitment tab, since some vehicles accept more than one size. If you're weighing up a bigger 60mm injector, the ID1300-XDS 60mm single with purple adaptor top uses a Denso-style lower cushion instead, so it isn't a straight swap for this one.

Technical Specifications

  • Nominal Flow Rate: 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
  • Maximum Differential Fuel Pressure: 10.0 Bar (145.0 psi)
  • Fuel Compatibility: Compatible With All Known Fuels
  • Electrical Connector: USCAR

Fitment Table
