 |  SKU: 1300.60.14.D.4

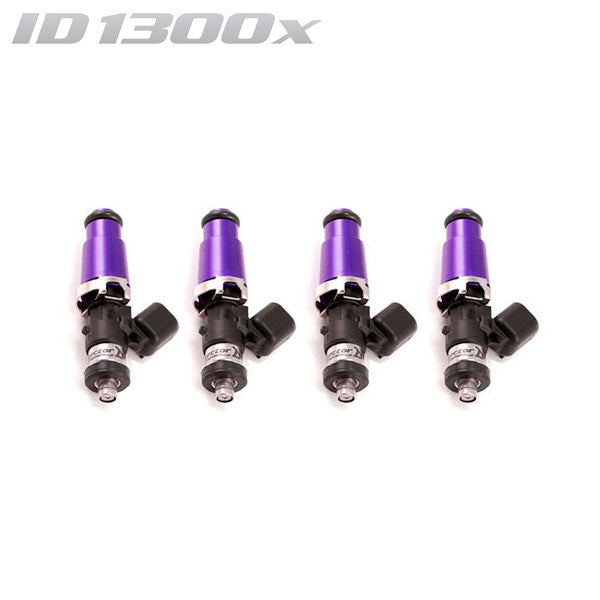

Injector Dynamics ID1300-XDS Direct Fit Injectors Set of 4

$952.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

If you already know your engine takes a 60mm injector with a 14mm top O-ring and a Denso-style lower cushion, this universal Injector Dynamics ID1300-XDS Direct Fit set of four covers a four-cylinder engine in one order, going by its part number. It is listed as universal rather than for one vehicle, so it suits builders who have already done their homework.

Every ID1300-XDS is designed and manufactured by Injector Dynamics, and Pro Speed Racing supplies them as the official Main Wholesale Distributor for Australia and New Zealand. More configurations sit in the Injector Dynamics range, next to Pro Speed's wider selection of performance parts.

Part 1300.60.14.D.4 decoded

  • Part number: 1300.60.14.D.4
  • 60: injector length in mm
  • 14: top O-ring size in mm
  • D: Denso-style lower cushion
  • 4: injectors in the set

Technical Specifications, below, lists the flow rating, maximum pressure and connector.

One injector, plenty of fuels

Injector Dynamics built the ID1300-XDS with Bosch Motorsport and calls it the most versatile injector in its line-up. The compact body fits more than 200 applications, and the internals are made to cope with alcohol while staying compatible with every known fuel.

Confirming direct fit

This set isn't tied to one vehicle, so two steps matter: check the Vehicle Fitment tab, and compare the length and lower seal type side by side with your current injectors. Five minutes with a ruler beats a return. Need a spare or a replacement later? The ID1300-XDS 60mm single with purple top and Denso cushion shares the 60mm length, 14mm top and cushion lower.

Technical Specifications

  • Nominal Flow Rate: 1335cc/min @ 3.0 Bar (43.5 psi) Using Iso Octane at 52 Degrees C (125 Degrees F)
  • Maximum Differential Fuel Pressure: 7.0 Bar (101.5 psi)
  • Fuel Compatibility: Compatible With All Known Fuels – (Designed Specifically for Alternative Fuels)
  • Electrical Connector: USCAR

Fitment Table
