 |  SKU: 2600.34.14.14.4

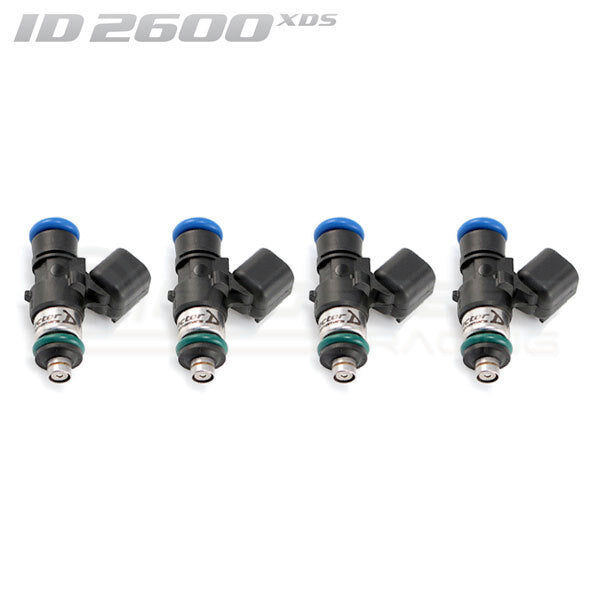

ID2600-XDS Injectors Set of 4, 34mm Length, 14mm Top O-Ring, 14mm Lower O-Ring

Universal
$2,334.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Four-cylinder engines making big power on ethanol or methanol, where an ID1700-class injector no longer keeps up, are what this universal Injector Dynamics ID2600-XDS set of 4 is for, with a 34mm body and 14mm top and lower O-rings.

Injector Dynamics developed the ID2600-XDS, and Pro Speed Racing is the official Main Wholesale Distributor for Injector Dynamics in Australia and New Zealand. Every size and set count is in the Pro Speed Racing Injector Dynamics catalogue. Any other aftermarket car parts for the build can go on the same order with Pro Speed Racing.

Set details: 2600.34.14.14.4

  • Part 2600.34.14.14.4
  • Four injectors
  • 34mm length
  • 14mm top O-ring
  • 14mm lower O-ring

Flow, pressure, minimum voltage and connector details for this set are under Technical Specifications below.

Dual Slope Matching

Four cylinders, four injectors, one even spread of fuel. With the ID2600-XDS, Injector Dynamics matches sets in both the linear and non-linear operating ranges, a method it calls Dual Slope Matching. Its older Slope Intercept approach, introduced in 2007, only evened out fuelling across the linear range. Injector Dynamics quotes average deviation in the non-linear range dropping from +/-5.1% to +/-1.4% on this injector, which keeps your cylinders closer together at short pulse widths.

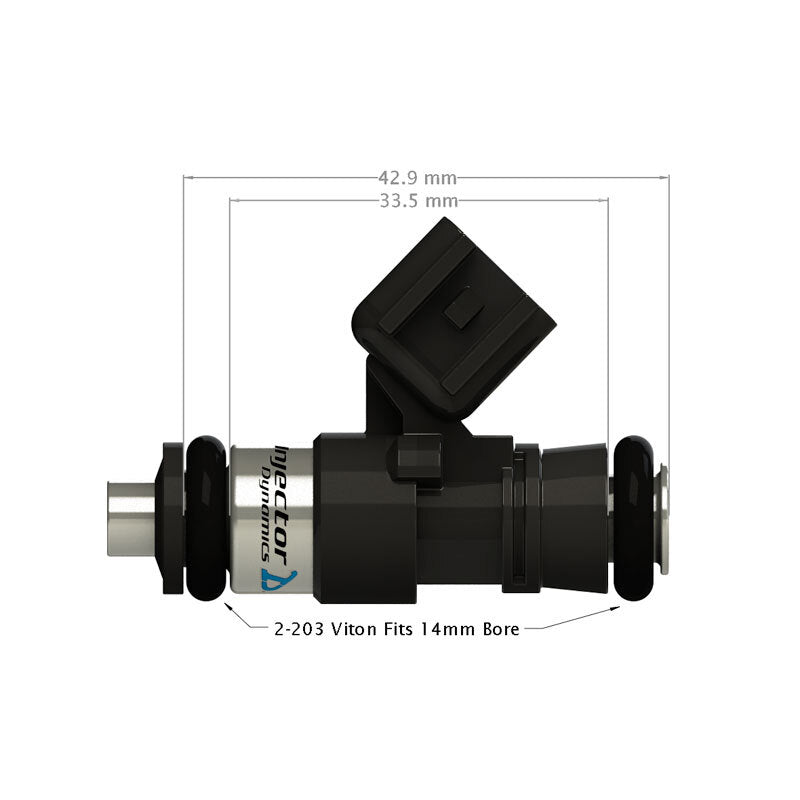

Right size, right fit

Compare the 34mm length and both O-rings with the injectors in your engine and check the Vehicle Fitment tab. If the ID2600-XDS is more fuel than your build needs, the ID1300-XDS set of 4 in the same format is the smaller choice in that 34mm layout.

Technical Specifications

  • Nominal Flow Rate: 2600cc/min @ 3.0 Bar (43.5 psi)
  • Maximum Differential Fuel Pressure: 9.0 Bar (130.5 psi) – Requires Minimum 11volt.
  • Fuel Compatibility: Compatible with Methanol/Ethanol/All Known Hydrocarbons. NOT Compatible with Ethers (MTBE, ETBE, TAME) or Nitro Methane
  • Electrical Connector: USCAR

Fitment Table
