 |  SKU: 2600.48.14.14.2

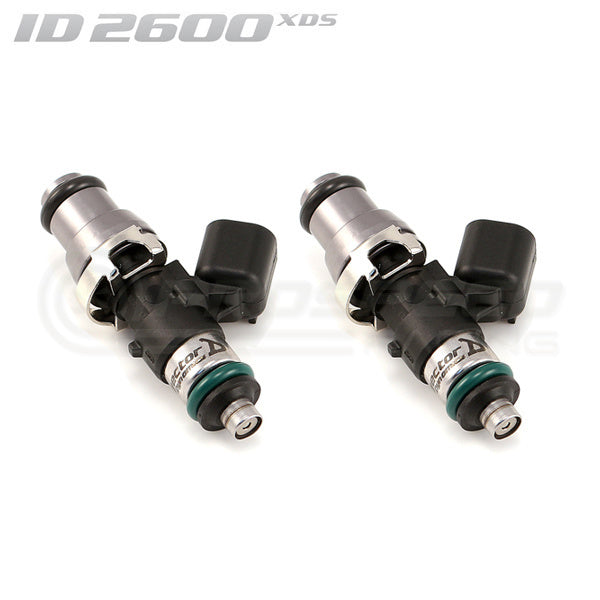

ID2600-XDS Injectors Set of 2 Direct Fit - Can Am Outlander ATV 1000cc

Can Am Outlander ATV 1000cc
$1,184.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

A direct-fit pair of Injector Dynamics ID2600-XDS injectors for the Can-Am Outlander ATV 1000cc. This is the largest size for the Outlander, intended for highly modified engines running ethanol or methanol. Overkill for most Outlanders, exactly right for a few.

Injector Dynamics designs these injectors, and Pro Speed Racing distributes them as Main Wholesale Distributor for Australia and New Zealand. See the Injector Dynamics collection for smaller sizes.

Pair fitment

  • Part number 2600.48.14.14.2
  • Two ID2600-XDS injectors

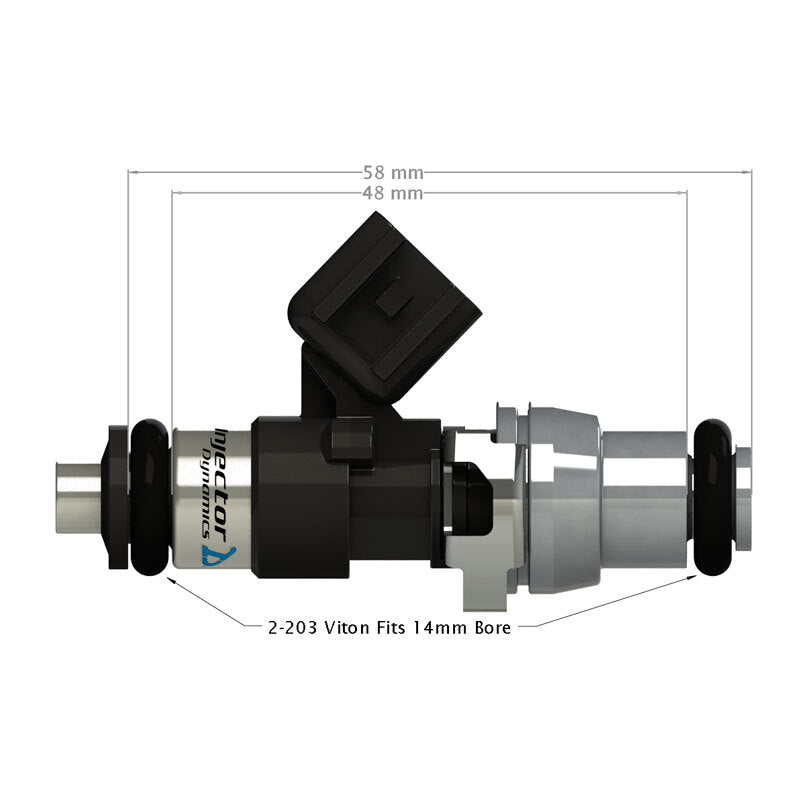

  • 48mm length
  • 14mm top O-ring
  • 14mm lower O-ring

Flow rate and pressure limits, plus the connector, are covered in Technical Specifications further down.

Matching across the range

Matching on static flow alone leaves large differences between injectors at short pulse widths. Injector Dynamics uses Dual Slope Matching on the ID2600-XDS, extending matching into the non-linear range, an approach conceived by Aaron Looft at Injector Dynamics. The injector also flows about 50% more than the ID1700 and has corrosion-resistant internals for ethanol and methanol. Injector Dynamics lists the 2008 Can-Am Outlander ATV 1000cc.

Fitment and ordering

Compare the length and O-ring sizes with your Outlander's current injectors and confirm on the Vehicle Fitment tab. A smaller option is the ID1750-XDS set of two.

Technical Specifications

  • Nominal Flow Rate: 2600cc/min @ 3.0 Bar (43.5 psi)
  • Maximum Differential Fuel Pressure: 9.0 Bar (130.5 psi) – Requires Minimum 11volt.
  • Fuel Compatibility: Compatible with Methanol/Ethanol/All Known Hydrocarbons. NOT Compatible with Ethers (MTBE, ETBE, TAME) or Nitro Methane
  • Electrical Connector: USCAR

Fitment Table
