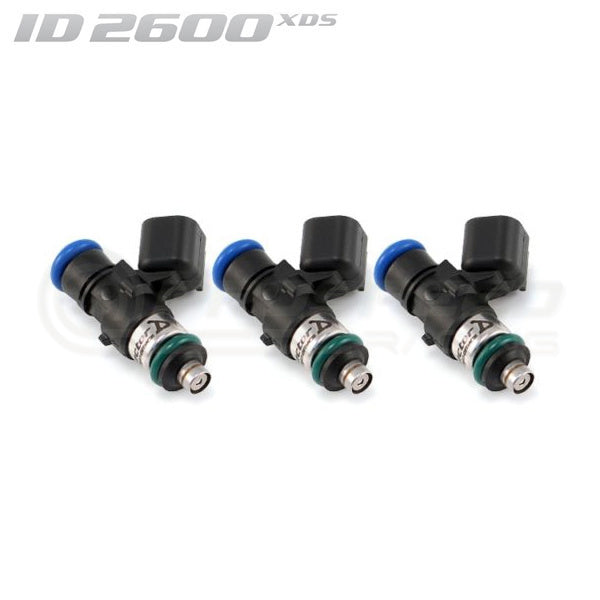

ID2600-XDS Injectors Set of 3 Direct Fit - Can Am Maverick X3 Inc Turbo

Can Am Maverick X3 Inc Turbo
$1,754.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Heavily built Can-Am Maverick X3 engines, Turbo models included, running ethanol or methanol are what this direct-fit set of three Injector Dynamics ID2600-XDS injectors is for. It is the biggest injector offered for the X3. The biggest hammer in the X3 toolbox.

Injector Dynamics is the maker, and Pro Speed Racing is its official Main Wholesale Distributor for Australia and New Zealand. Smaller Maverick sizes are in the Injector Dynamics catalogue, while Pro Speed's general range of performance parts is worth a look for the rest of the build.

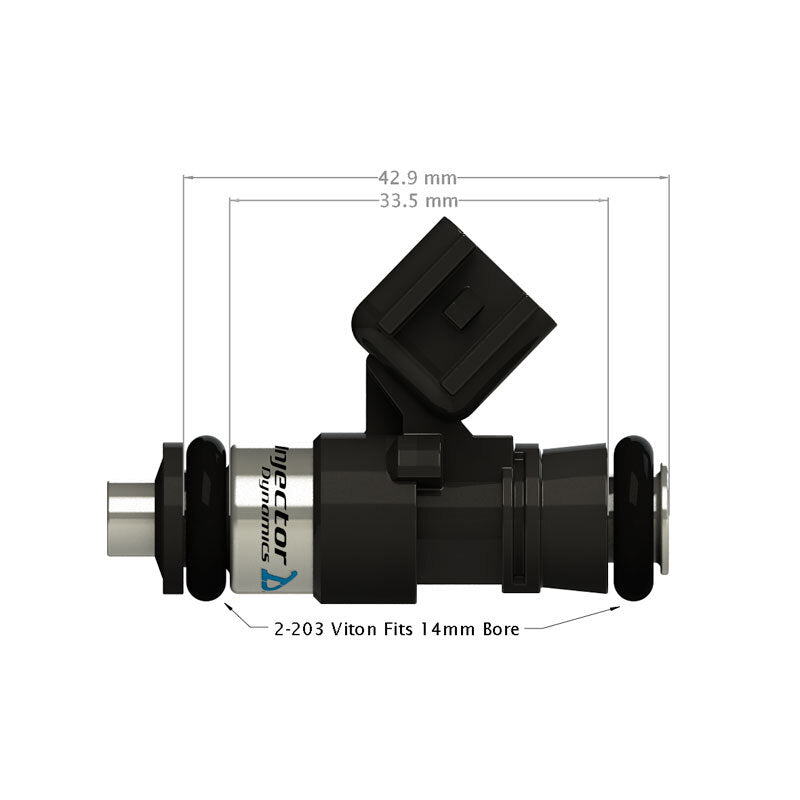

Three-injector specification

  • Part number 2600.34.14.14.3
  • Quantity: three ID2600-XDS
  • 34mm length
  • 14mm top O-ring
  • 14mm lower O-ring

Rated flow, the pressure ceiling and connector style are set out in the Technical Specifications panel below.

Even fuelling at small pulse widths

Big injectors often run well outside their linear range at idle and light load. Injector Dynamics matches each ID2600-XDS set using Dual Slope Matching, which approximates each injector's behaviour in the non-linear range and groups sets accordingly. Injector Dynamics quotes average deviation there at +/-1.4%, compared with +/-5.1% under its older Slope Intercept method. Fitment listed by Injector Dynamics covers the X3, X3 Max, X3 Turbo, X3 Turbo R and X3 Turbo RR.

Ordering the right size

Compare length and O-ring sizes with your current injectors and check the Vehicle Fitment tab. If the ID2600 is too large, the ID1050-XDS three-pack suits milder builds.

Technical Specifications

  • Nominal Flow Rate: 2600cc/min @ 3.0 Bar (43.5 psi)
  • Maximum Differential Fuel Pressure: 9.0 Bar (130.5 psi) – Requires Minimum 11volt.
  • Fuel Compatibility: Compatible with Methanol/Ethanol/All Known Hydrocarbons. NOT Compatible with Ethers (MTBE, ETBE, TAME) or Nitro Methane
  • Electrical Connector: USCAR

Fitment Table
