 |  SKU: 2600.48.14.15.8

Injector Dynamics ID2600-XDS Direct Fit Injectors Set of 8

Holden/HSV/GM LS2
$4,664.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

An eight-injector Injector Dynamics ID2600-XDS set for the Holden/HSV/GM LS2, built for alcohol fuels and the fuel flow of a big-power LS2. According to Injector Dynamics, it flows half as much again as the ID1700.

Pro Speed Racing supplies this set as the official Main Wholesale Distributor for Injector Dynamics in Australia and New Zealand, along with a broad range of performance car parts. Smaller sizes for the LS2 are in the Injector Dynamics collection.

Set contents for the LS2

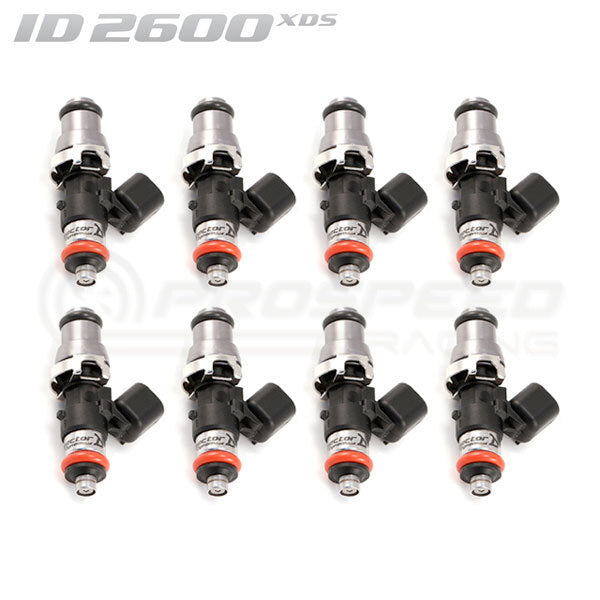

  • 8 x ID2600-XDS (2600.48.14.15.8)

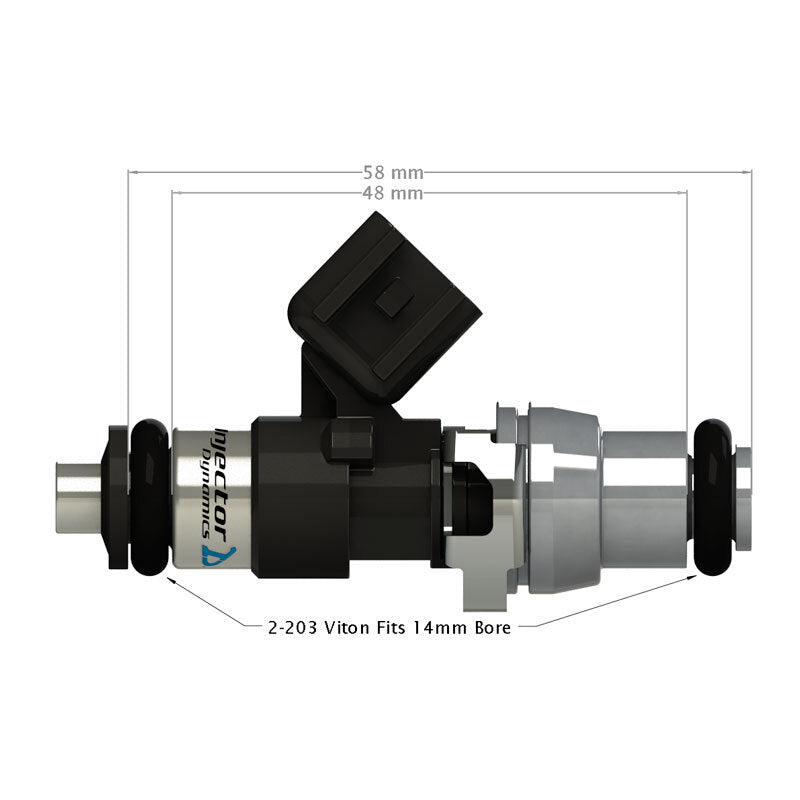

  • 48mm length
  • 14mm top and 15mm lower O-rings

Rated flow, pressure and the connector style are set out under Technical Specifications below.

Turbos, alcohol and the non-linear range

As turbo technology has moved on and alcohol fuels have become more common, injectors are often asked to work outside their linear range. Injector Dynamics answered with Dual Slope Matching, which extends set matching into that non-linear range, building on the Slope Intercept matching it introduced in 2007. The ID2600-XDS was developed with Bosch Motorsport for liquid fuels and has corrosion-resistant internals for long-term ethanol and methanol use.

Picking the LS2 size

Check the 48mm length and 15mm lower O-ring against your current injectors and on the Vehicle Fitment tab. Be honest about your fuel needs: if your build doesn't need the ID2600-XDS, the ID1750-XDS LS2 set is the better fit.

Technical Specifications

  • Nominal Flow Rate: 2600cc/min @ 3.0 Bar (43.5 psi)
  • Maximum Differential Fuel Pressure: 9.0 Bar (130.5 psi) – Requires Minimum 11volt.
  • Fuel Compatibility: Compatible with Methanol/Ethanol/All Known Hydrocarbons. NOT Compatible with Ethers (MTBE, ETBE, TAME) or Nitro Methane
  • Electrical Connector: USCAR

Fitment Table
