 |  SKU: 39040

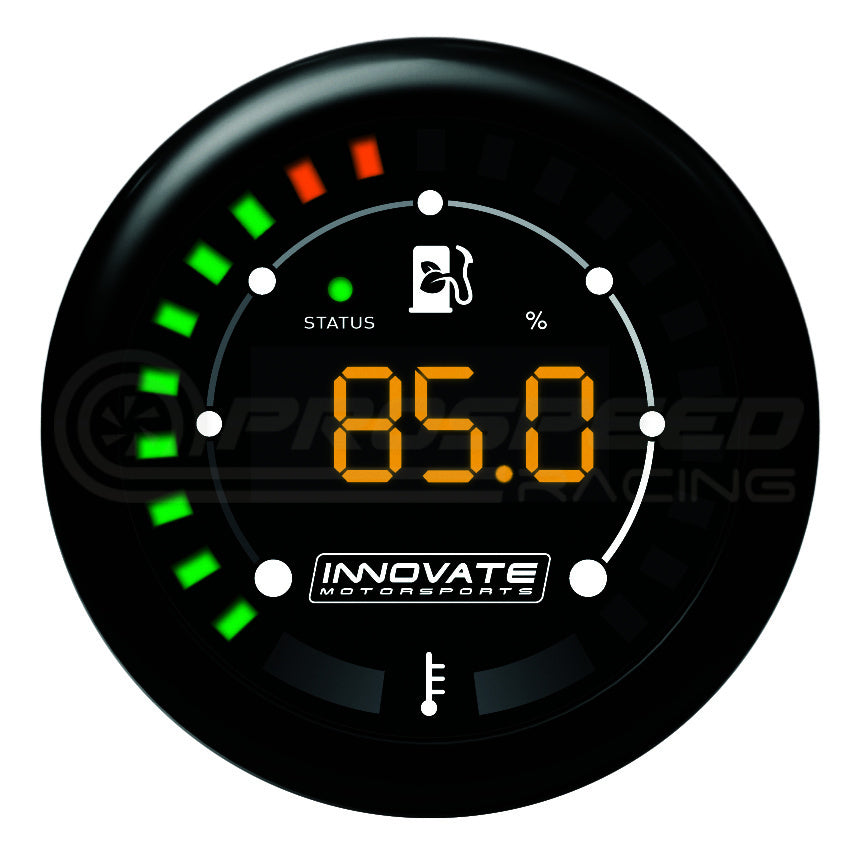

Innovate Motorsports MTX-D Digital Ethanol Content/Fuel Temp Dual Gauge Kit

$479.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description


Innovate Motorsports develops, manufactures, and supports universal digital tuning tools, including wideband air/fuel ratio meters, gauges, and data acquisitions systems. For engine data analysis, the Logworks software is available for download free of charge.



Innovate Motorsports MTX Digital Series “Dual Function” Gauges are 2 1/16” (52mm) gauges featuring interchangeable faceplates and bezels for a user-customized look, locking connectors for simplified installation, and MTS serial connections used to connect with other Innovate devices for logging.

MODULAR TUNING SYSTEM (MTS)

All Innovate products are completely modular, enabling you to build the perfect tuning system for your needs. The MTS is scalable, and all components share a common digital communications protocol. A simple and common configuration is an MTX-L PLUS gauge for A/F monitoring. An more complex setup might include an LC-2 on every cylinder, a LM-2 for recording, two TC-4 PLUS's for exhaust gas temperature, an SSI-4 PLUS for intake and turbo temp, speedo & TPS, and lastly an MTX-L PLUS to monitor the data in real-time.



Features:

  • Error reporting for ethanol content sensor (Digital Display)
  • Change exterior LED as a fill bar or light a single indicating LED
  • Programmable exterior LED ranges vs. color
  • Programmable unit of measure as °F or °C
  • Programmable fuel temperature warning (outer LED)
  • 2 Configurable Outputs: Ethanol Content: 0v = 0%, 5v = 100%, Fuel Temp: 0v = -40 °F, 5v = 257 °F (-40-125°C)
  • Ethanol Content %: 0-100%
  • Temp: -40-257 °F (-40-125°C)
  • MTX-D: Ethanol Content Percentage & Fuel Temp Gauge Kit, includes: Gauge (Black Faceplate, Black Bezel), Silver Bezel & White Faceplate, Harness, Program Cable (Serial), Ethanol Content Sensor, Quick Start Installation Guide.


Technical Specifications

Gauge Specifications:

  • Dial Colour: Black OR White
  • Lens Style: Flat, Clear
  • Bezel Colour: Black OR SILVER
  • Gauge Body Diameter (mm): 52
  • Gauge Backlight Type: Digital LED
  • Gauge Backlight Colour: Amber LED/Red Amber Green Segments
  • Gauge Movement Type: Digital
  • Gauge Display Range: 0 - 100% / -40 - 257 °F (-40 - 125°C)

Kit Includes:

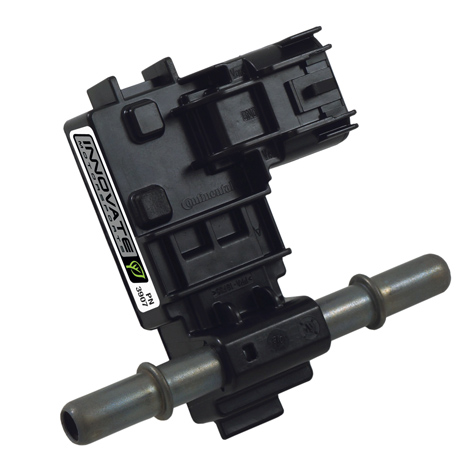

  • Included Sensor #: 3907
  • Included Adaptor/Fitting #: N/A, Not Included
  • Included Wiring Kit #: 3804

Fitment Table
