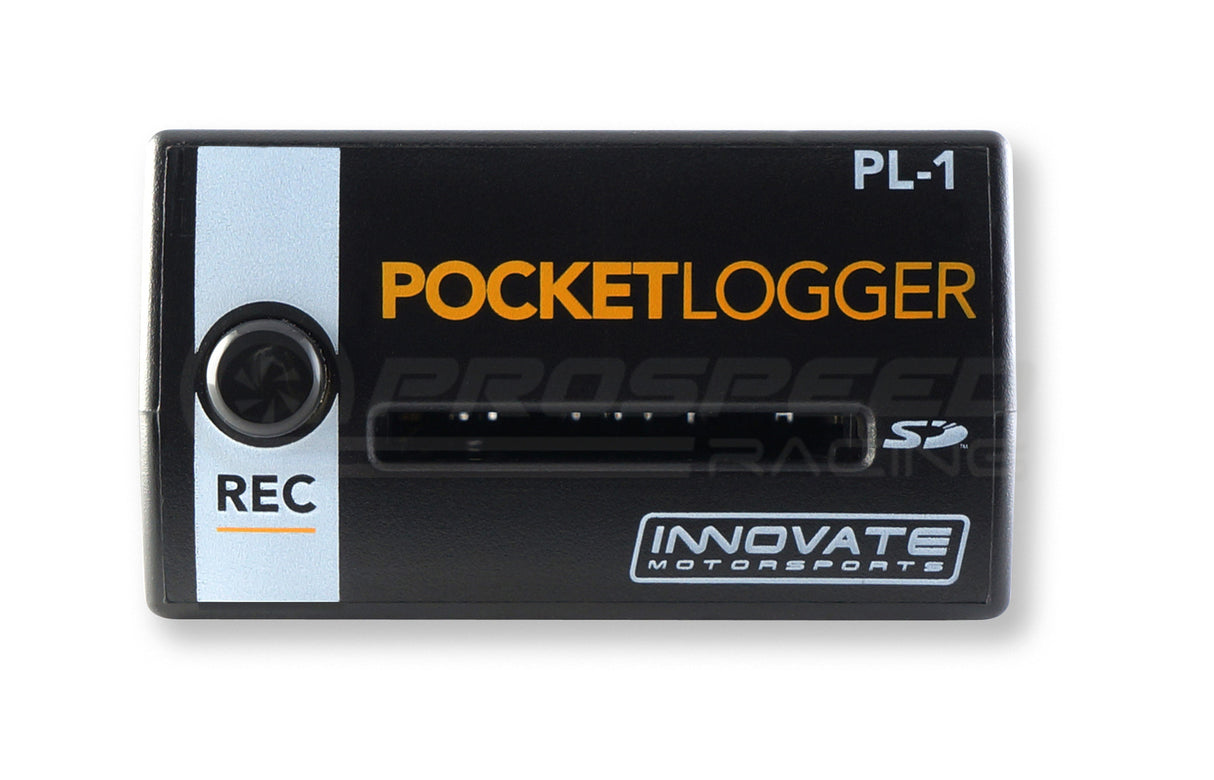

Innovate Motorsports PL-1 Pocket Logger Kit

Innovate Motorsports develops, manufactures, and supports universal digital tuning tools, including wideband air/fuel ratio meters, gauges, and data acquisitions systems. For engine data analysis, the Logworks software is available for download free of charge.

The PL-1 is the latest in Innovate Motorsports’ line-up of products to allow for easy data logging of your MTS (Modular Tuning System) compatible product. Whether you have an LC-2 & SSI-4 PLUS, MTX gauges, or any other combination of Innovate Motorsports MTS devices, the PL-1 integrates seamlessly to record all the data from the connected devices.

MODULAR TUNING SYSTEM (MTS)

All Innovate products are completely modular, enabling you to build the perfect tuning system for your needs. The MTS is scalable, and all components share a common digital communications protocol. A simple and common configuration is an MTX-L PLUS gauge for A/F monitoring. An more complex setup might include an LC-2 on every cylinder, a LM-2 for recording, two TC-4 PLUS's for exhaust gas temperature, an SSI-4 PLUS for intake and turbo temp, speedo & TPS, and lastly an MTX-L PLUS to monitor the data in real-time.

Features:

• Record up to 32-channels of Innovate MTS compatible devices
• Sample rate of 12 times per second (12 Hz)
• Log directly to SD card (included) 2GB SD = 580 hours of recording!
• Playback log data with powerful LogWorks software (available for download)
• Positive lock connectors for all connections
• Innovate MTS serial IN
• Trigger recording on PL-1 and/or with "optional" remote push button
• Complete kit includes:PL-1, Pocket Logger, 2GB SD Memory Card, SD Memory Card Reader, USB to PC, Power Cable - 12v, LogWorks 3.0 Software (available for download - CD not included), MTS Patch Cable (Locking 4-pin to 4-pin - for newer devices like the MTX gauges), MTS Patch Cable - 2.5mm to 4-pin (needed for LC-1, SSI-4, TC-4, & LMA-3)

Gauge Specifications:

• N/A

Kit Includes:

• Included Sensor #: N/A, Not Included
• Included Adaptor/Fitting #: N/A, Not Included
• Included Wiring Kit #: 3812, 3846, 3874
