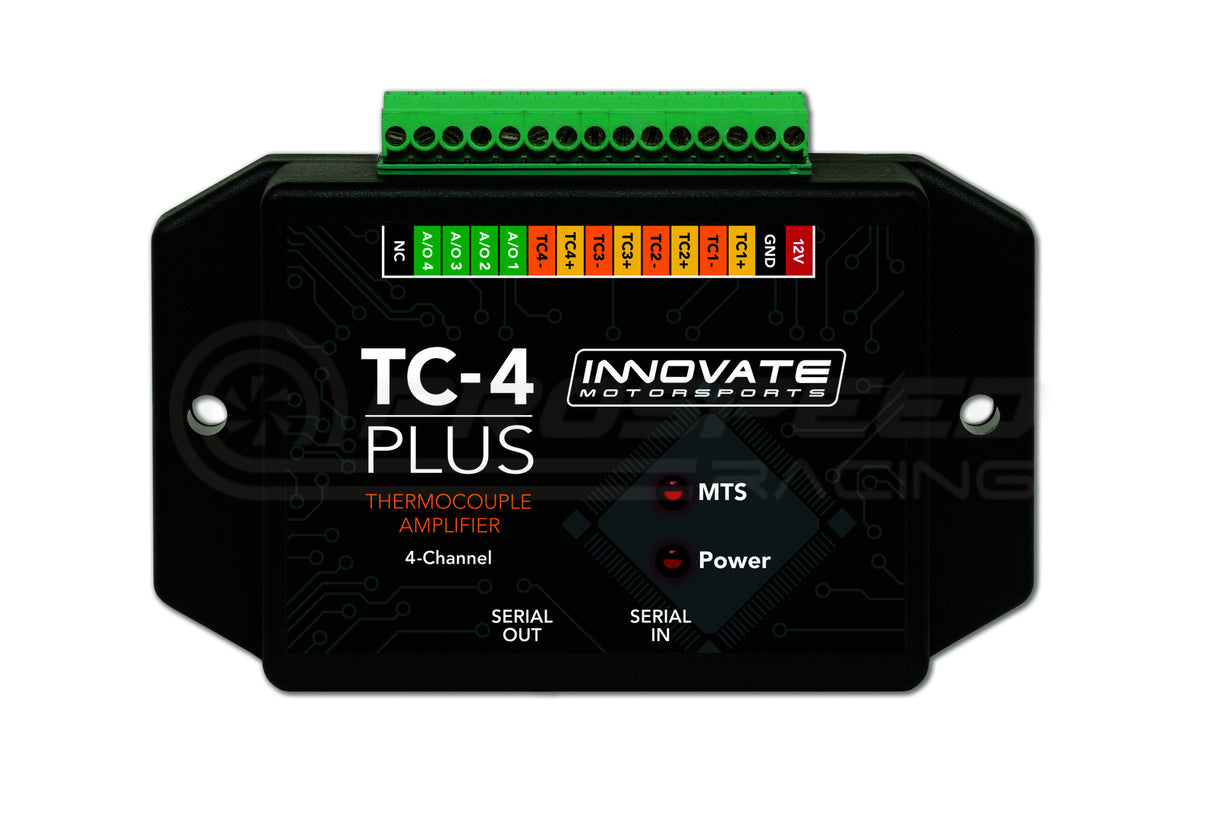

Innovate Motorsports TC-4 PLUS 4 Channel Thermocouple Sensor Interface

$259.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description


Innovate Motorsports develops, manufactures, and supports universal digital tuning tools, including wideband air/fuel ratio meters, gauges, and data acquisitions systems. For engine data analysis, the Logworks software is available for download free of charge.



The TC-4 PLUS is 4 channel type-K thermocouple amplifier device that can be used a stand-alone system or as part of a MTS (Modular Tuning System). The TC-4 PLUS includes a digital input/output, 4 full-programmable analog outputs, and is ideal for applications such as dynamometers, data acquisition systems, or standalone ECUs. The TC-4 is also a key component of Innovate Motorsports' Modular Tuning System (MTS). Using the TC-4 PLUS's serial ports you can daisy-chain other Innovate devices such as the MTX-L, LM-2, LC-2, and SSI-4 PLUS.

MODULAR TUNING SYSTEM (MTS)

All Innovate products are completely modular, enabling you to build the perfect tuning system for your needs. The MTS is scalable, and all components share a common digital communications protocol. A simple and common configuration is an MTX-L PLUS gauge for A/F monitoring. An more complex setup might include an LC-2 on every cylinder, a LM-2 for recording, two TC-4 PLUS's for exhaust gas temperature, an SSI-4 PLUS for intake and turbo temp, speedo & TPS, and lastly an MTX-L PLUS to monitor the data in real-time.



Features:

  • K-Type thermocouple amplifier that adds 4 temperature inputs to an MTS Log Chain
  • Temperature range 32-1999 deg F, 0- 1093 deg C
  • 4-Configurable linear 0-5V analog outputs (one per input)
  • The TC-4 PLUS can be used to measure other temperature metrics such as intercooler inlet, outlet temperature and catalytic converter
  • The TC-4 PLUS includes the TC-4 PLUS, Serial Program Cable, Molex to Molex Patch Cable (to daisy chain with other MTS compatible devices), and manual.


Technical Specifications

Gauge Specifications:

  • N/A

Kit Includes:

  • Included Sensor #: N/A, Not Included
  • Included Adaptor/Fitting #: N/A, Not Included
  • Included Wiring Kit #: 3840, 3846
