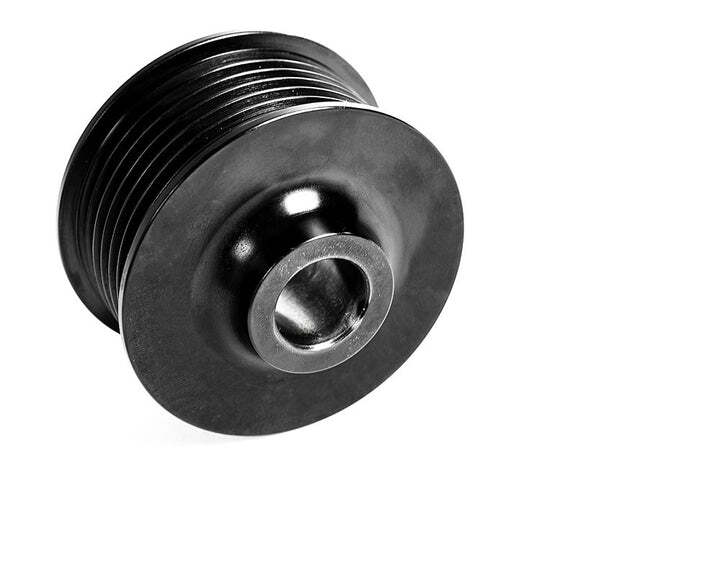

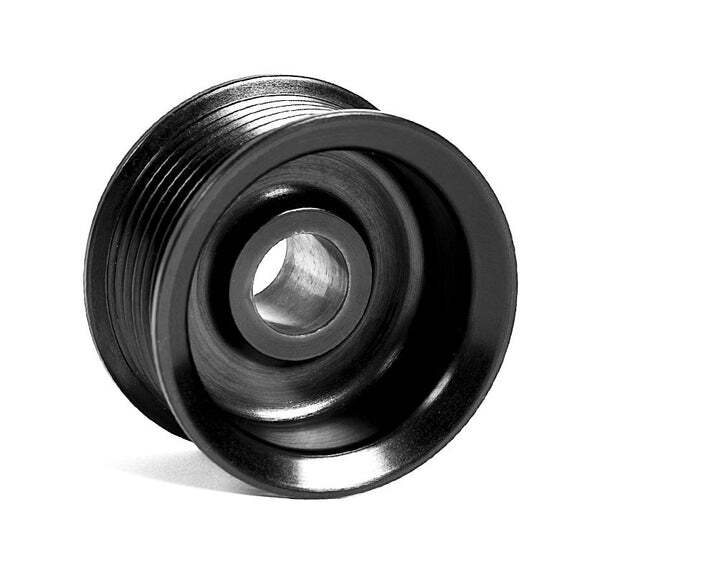

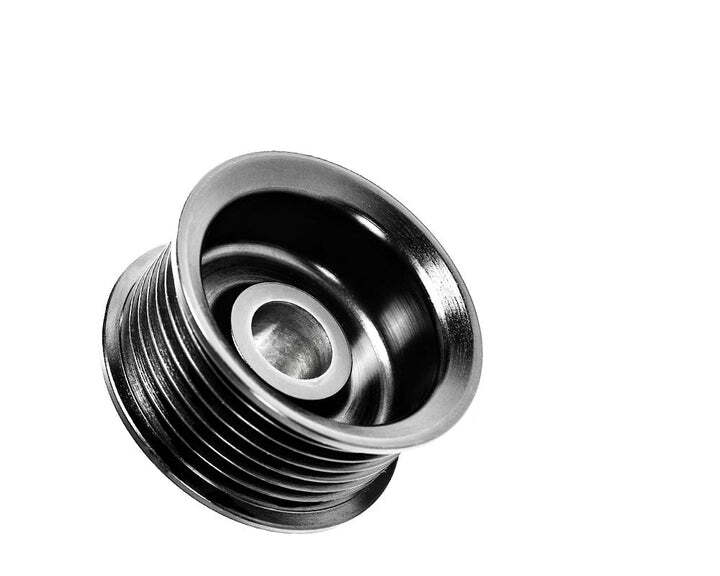

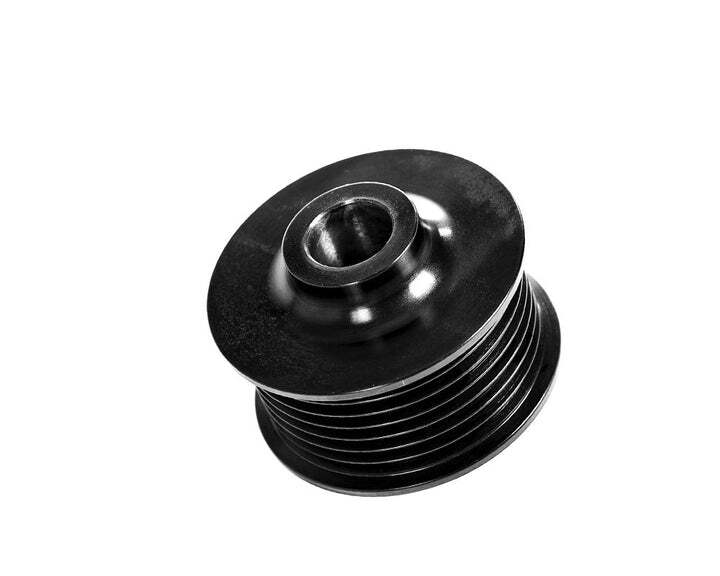

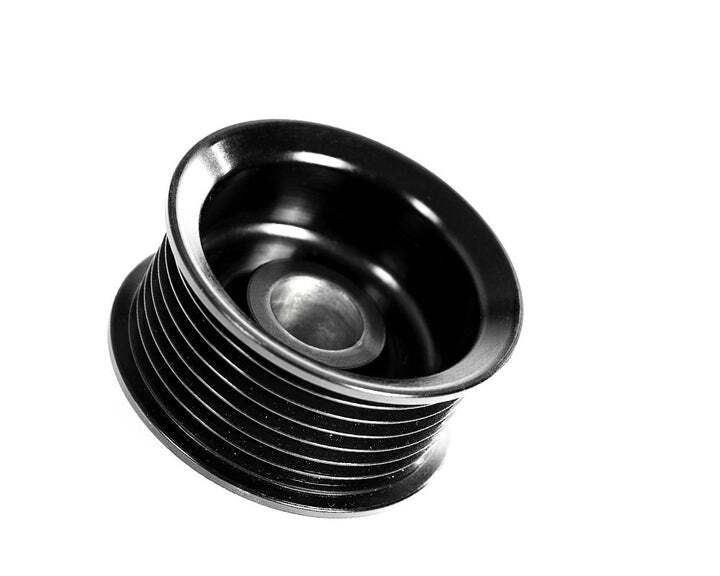

Integrated Engineering 57.5mm Press-Fit Supercharger Pulley Upgrade

Audi A6/A7 C7/S4/S5 B8/B8.5/Q5/SQ5 8R
$395.96
RRP $439.95 (Save 10%)
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

The IE supercharger pulley for 3.0T V6 Audi engines is a great mod to extract more power form your supercharger. Capable of up to 492HP on it's own with a IE stage 2 single pulley tune, or combine with IE 188mm crank pulley (IEBAVJ7) (Stage 2 dual pulley) for up to a massive 548HP! These power gains are achieved by spinning the supercharger unit significantly faster than stock for higher boost levels with pulleys and proper ECU tuning.

IE's Supercharger Pulley Upgrade for Audi 3.0T TFSI Engines found in B8/B8.5 S4, S5, Q5, SQ5 and C7 A6, A7 models increasing the supercharger RPM throughout the full powerband. At redline supercharger speed is increased by 1800 RPM. The IE pulley is reduces the size to 57.5mm in diameter, making it one of most aggressive and powerful on the market.



Vehicle Fitment:

  • 2010-2016 Audi A6 C7 3.0TFSI Supercharged (non-CREC)
  • 2010-2016 Audi A7 C7 3.0TFSI Supercharged (non-CREC)
  • 2008-2017 Audi Q5 8R 3.0TFSI Supercharged
  • 2008-2017 Audi SQ5 8R 3.0TFSI Supercharged
  • 2009-2016 Audi S4 B8/B8.5 3.0TFSI Supercharged
  • 2013-2015 Audi S5 B8.5 3.0TFSI Supercharged

Features and Benefits

  • Increases supercharger RPM by 10% for single pulley
  • Combine with IE 188mm crank pulley for 26% SC RPM increase
  • Increases supercharger boost levels for single & dual pulley tunes
  • CNC machined from billet steel
  • Inside bore precision honed at IE
  • Zinc plated to ensure no rust
  • Replaces stock pulley on Eaton TVS 1320 Superchargers
  • Engineered in-house using CAD modeling and FEA analysis

Technical Specifications

PULLEY TYPE SUPERCHARGER PULLEY DIAMETER     CRANK PULLEY DIAMETER     SUPERCHARGER RATIO
Stock Pulley 63.20 162.25 2.5672
Single pulley (SC pulley only) 57.5 162.25 2.8217
Dual Pulley (SC + 188mm crank pulley)     57.5 188 3.2695
Dual Pulley (207mm crank pulley) 63.20 207 3.2753

If you want to jump straight to Stage 2 dual pulley power, IE 207mm crank pulley IEBAVJ6 can be used instead without the need to purchase this smaller press-on SC pulley.

Included Components

The following items are included:

  • 1X) IE 57.5mm overdrive supercharger pulley

The following items are not included but required:

  • IE stage 2 single or dual pulley ECU tune
  • IE 3.0T supercharger pulley puller tool (IEBAVJ4)
