 |  SKU: IEINDA1

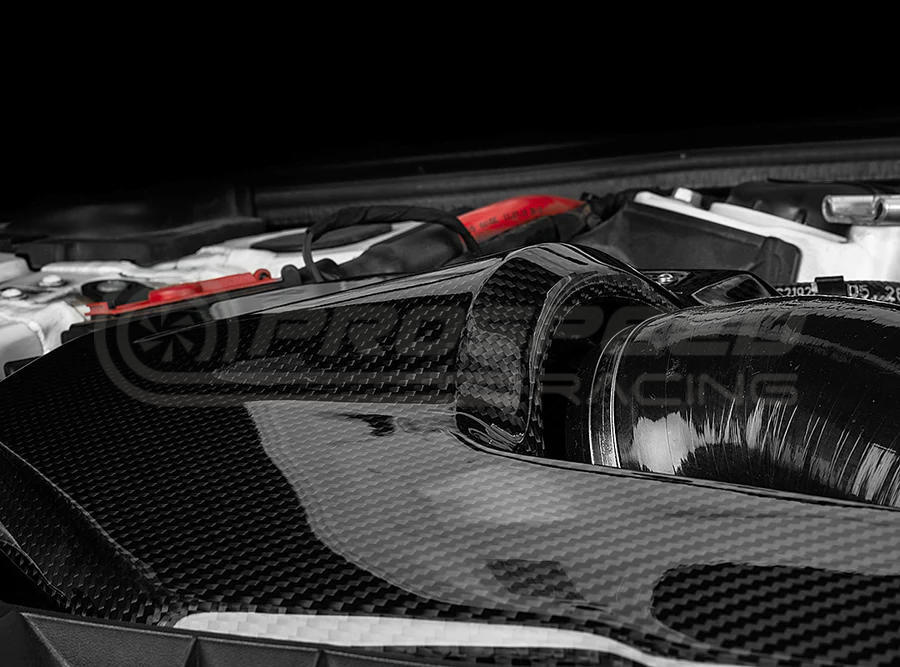

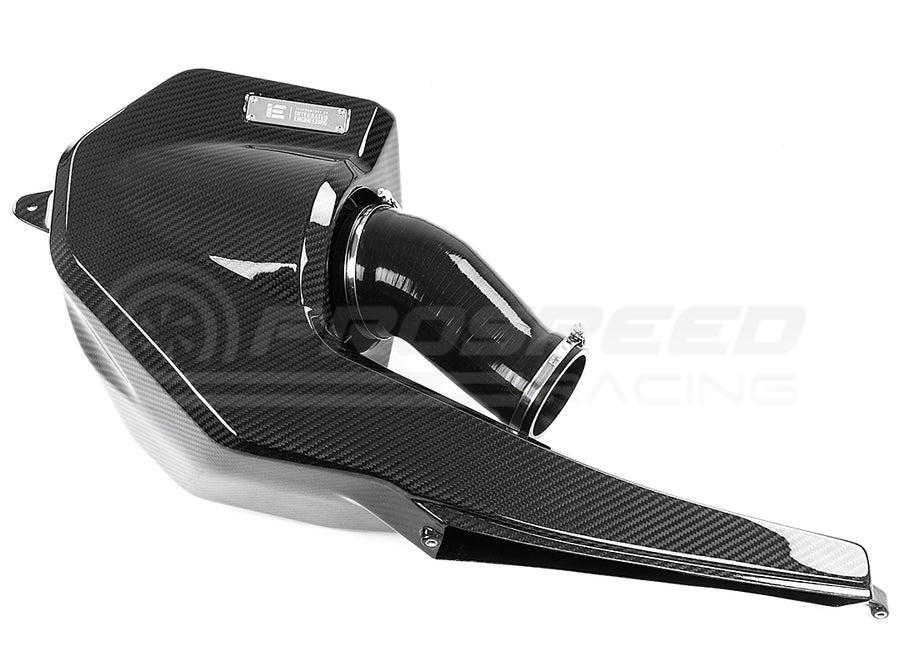

Integrated Engineering Carbon Fibre Intake System

Audi RS4 B9/RS5 F5 (2.9 TFSI)
$2,139.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

A one-piece carbon fibre airbox for the twin-turbo 2.9 TFSI that increases volume and airflow while managing intake temperatures, finished to suit an RS engine bay.

Key features

  • One-piece carbon fibre airbox
  • More volume and airflow for tuned cars
  • Factory-style bolt-in fitment

Vehicle fitment

2018+ Audi RS4 B9.5 and RS5 F5 (2.9 TFSI).

Part number: IEINDA1

In-stock Integrated Engineering parts are dispatched from our Somersby NSW warehouse with tracked shipping Australia-wide. Not sure it suits your car? Call the Pro Speed Racing team on (02) 4313 3123 before you order.

Features and Benefits

  • High-gloss genuine carbon fiber construction
  • Leak-free seamless 1-piece airbox
  • Up to 28HP & 26ft-lbs over stock (with IE turbo inlet)
  • Flow 27.75%% more than the stock intake system
  • Enhanced turbo & engine sound
  • High & low pressure air zones for any power level
  • Maximized turbo & engine efficiency
  • Massive 5" air filter & velocity stack for excellent laminar flow
  • Factory-style mounts for reliable & easy installation
  • Includes all stainless hardware
  • Multi-ply silicone with stop-flat edges
  • High-quality clamps
  • Powder-coated aluminum filter plate

Technical Specifications

PERFORMANCE VALIDATION

The IE Performance 2.9TT Air Intake System has been power tested to deliver impressive gains of up to 28HP and 26ft-lbs on tuned engines (with stock turbos)! Feel the surge of performance as you take command of the road, leaving ordinary RS5 and RS4s in the dust.


FLOW BENCH TESTING

Back-to-back flow bench results show constant and consistent CFM gains of up to 27.75% CFM over stock! This increase in flow details the intake design's efficiency over the factory parts and capability to provide any required airflow demands from ECU tunes and hybrid turbocharger upgrades.



FLOW REPORT

-IN. H20 STOCK INTAKE IE INTAKE

-5

191 CFM

244 CFM

-10

278 CFM

352 CFM

-15

346 CFM

435 CFM

-20

405 CFM

505 CFM

-25

452 CFM

570 CFM

-30

499 CFM

624 CFM


MAXIMUM INCREASE:

+27.75% @ -5 in. H20



The above gains are a result of various design details:

  1. The 5" air filter surface area and increased air volume improve turbo efficiency.
  2. The internal velocity stack provides a low-turbulence transition from the filter to the inlet.
  3. Carbon airbox high & low-pressure zones channel low-temp airflow quickly to the engine while protecting it from radiant engine heat.

Media

Installation Instructions

The installation process is quick and easy, requiring only a few basic hand tools. The airbox is a direct install and utilizes factory-style mounts that ensure a perfect, hassle-free fit.

Average install time: 20-30 minutes

Click to download PDF Instructions
