 |  SKU: IESOWB1

Integrated Engineering Performance TCU/DSG Flash

Audi S4 B9/S5 F5/SQ5 FY (ZF8 AL552)
$1,172.96
RRP $1,379.95 (Save 15%)
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Requires Integrated Engineering POWERLink OBDII Dongle. Select option to add if required.



PERFORMANCE MATCHED

IE's B9 3.0T ECU Tunes are fully realized performance calibrations that deliver incredible power figures. Without a matching TCU tune, the transmission can feel unmatched to the new ECU tune -leaving speed on the table. Furthermore, the TCU upgrade modifies shift speed, torque limit maps, line pressure, and launch control functions, to fully match your ECU calibration. As a result, horsepower and torque levels are raised and acceleration is greatly improved to create a complete ECU & TCU performance package.

IE’s ZF8 AL552 TCU tune is all-inclusive without any unnecessary upgrades or additional charges for future ECU Tune upgrades. All features and optimizations are included for any level of hardware or performance stage, one cost and you are covered for all and any future upgrades.

VARIABLE LAUNCH CONTROL

The IE ZF8 AL552 TCU Tune includes a variable launch control to deliver chest pounding launches from a stop. 3 different launch RPMs (street, aggressive, or race) are included to dial in the fastest launch for your vehicle and tire setup. With the optimized launch mode set in your TCU, you can launch to the moon knowing your tires will put down the maximum power needed for the fastest launch.

DRIVING ENHANCEMENTS

The factory transmission calibration has many performance short comings leaving much to be desired by the enthusiast driver. IE software engineers have completely reworked the transmission tune computer with performance driving in mind. This new transmission calibration keeps the engine and transmission in the proper gear throughout the power range in a sported driving scenario without any annoying gear-hunting situations.

RELIABILITY TESTING

IE's own tuning technology suite is used to completely reverse-engineer the factory transmission mapping, allowing our software engineers access to realign all safety protocols for the new TCU calibration. Every tune parameter undergoes months of testing on our in-house dyno systems to verify all correct conditions for peak power delivery and reliability. All driving behavioral maps undergo thousands of miles of testing and a variety of users were polled to develop the ideal driving behavior.

FAST DOWNSHIFTS

When engaging full throttle from a cruising speed, the factory TCU calibration has longer pauses when dropping multiple gears. This delay causes a large lag when you are asking for immediate power. IE's performance calibration removes these delays when dropping down multiple gears, delivering near-instant boost and power when you demand it.

GEAR OPTIMIZED RPM

The IE TCU Tune remaps each gear's RPM limits for the fastest possible acceleration. Every gear will shift at the optimal points to pull the car through the powerband as quickly as possible for the fastest conditions on road, track, or drag strip with incredible improvements in acceleration and G's. These optimized shift points occur when in drive mode, sport mode, and AMAX. The transmission limit remains 6500 RPM in all gears in manual mode, retaining complete manual control over the shift points.

TRANSMISSION GEAR SHIFT RPM
1st Gear 6150 RPM
2nd Gear 5850 RPM
3rd Gear 5600 RPM
4th Gear 5650 RPM
5th Gear 5650 RPM
6th Gear 5650 RPM



EASY INSTALL

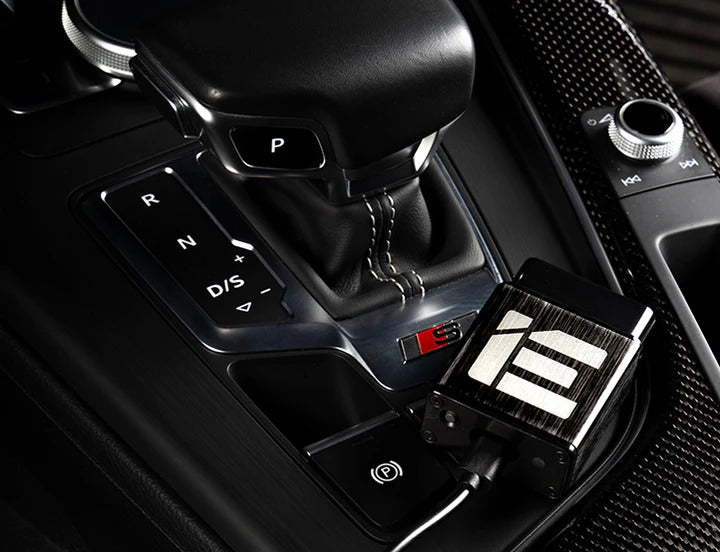

IE's POWERlink Cable and Flash Wizard software gives you the freedom to quickly flash your new IE ECU or TCU Tune. Simply plug your POWERlink into the vehicle's OBD-2 port and follow the on-screen directions, it's that easy!

If you are purchasing along with an IE ECU Tune, you do not need to purchase two POWERlink cables. One cable can flash both your ECU and TCU tunes.

LEADING FEATURES

  • Performance matched calibration for all IE B9 3.0T tunes
  • Enables launch control in drive, sport, and manual modes
  • Includes user-adjustable launch control
  • Lightning-fast shift speed
  • "Drag" optimized gear ratios for the fastest acceleration
  • Enables 6500 RPM limit in all gears in manual
  • Increases torque limits
  • Enables downshifting into 1st gear without coming to full stop
  • Refined drive for the automotive enthusiast
  • Reduces time for double-downshifting gears
  • Line pressure increased to protect against trans slip
  • Direct port OBDII at-home flashing



VEHICLE FITMENT

Suitable only for vehicles with AL552 ZF8 Automatic Transmission

  • 2017-2020 Audi S4 B9 3.0TFSI (Pre-Facelift Only)
  • 2017-2020 Audi S5 F5 3.0 TFSI (Pre-Facelift Only)
  • 2017-2020 Audi SQ5 FY 3.0 TFSI (Pre-Facelift Only)

Once a tune purchase is applied to your vehicle's ECU, the tune is permanently registered to the vehicle and non-transferable to other vehicles. Tune can be transferred to a second party in the event of vehicle transfer of ownership only.

Try IE software for 45 days from shipment date, if for any reason you are unsatisfied the tune may be removed and refunded risk-free.

Fitment Table
