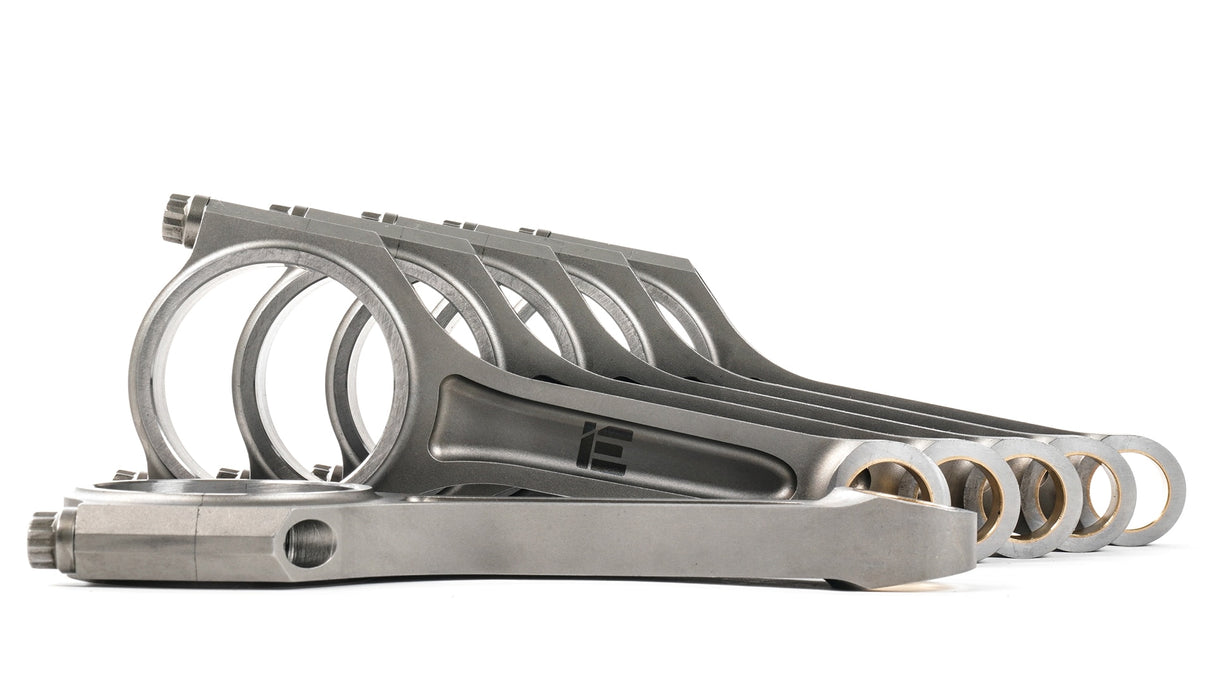

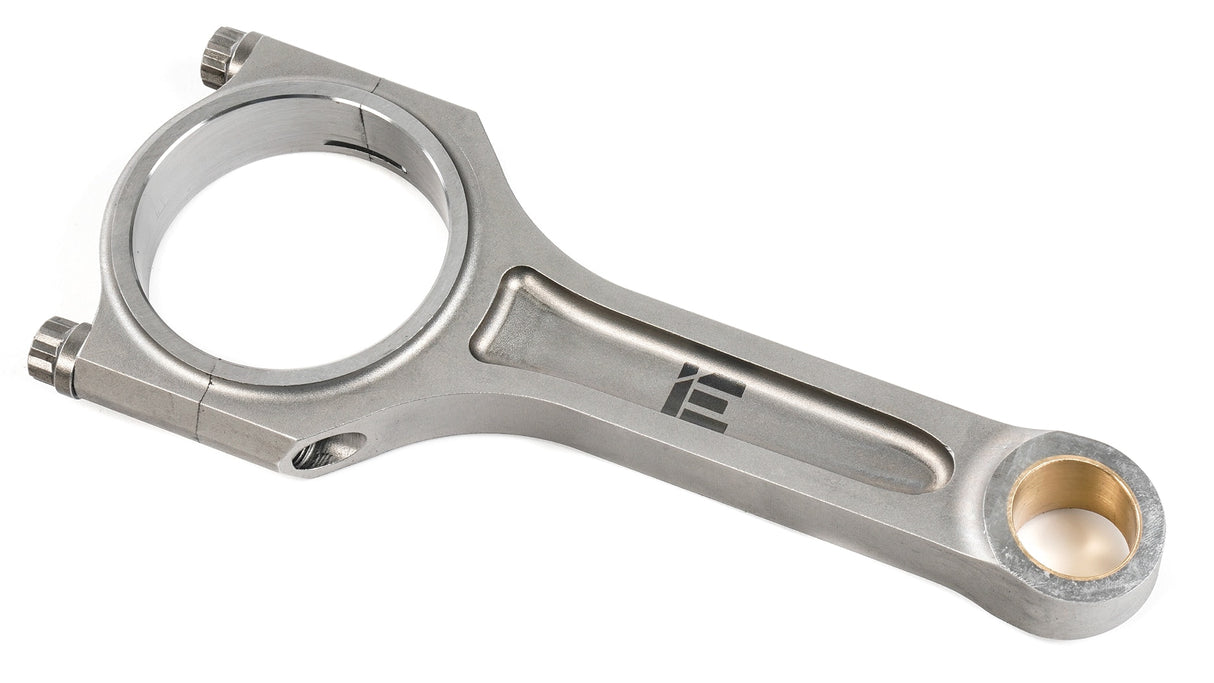

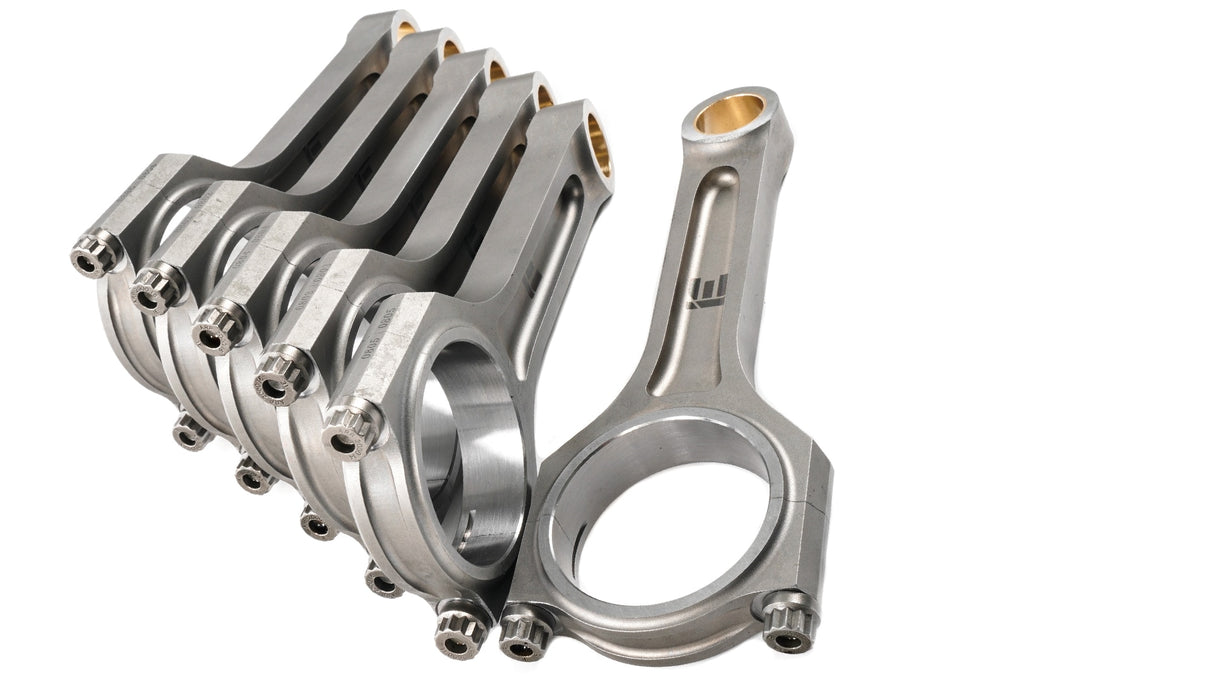

Integrated Engineering Tuscan Connecting Rods

Audi S4 B9/S5 F5 3.0T
$2,199.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

iE TUSCAN ADVANTAGE
The iE Tuscan I-Beam design is a premium connecting rod technology, that delivers unparalleled bottom-end strength for your high-boost build. Utilizing advanced software and design practices, these rods have been in-house engineered to target the weak points of the factory-installed rods specific to the Audi 3.0L EA839 engine. The outcome is an advanced connecting rod design that offers exceptional resistance to bending, optimized bearing stability, and extended fatigue life, ensuring dependable performance under demanding conditions.

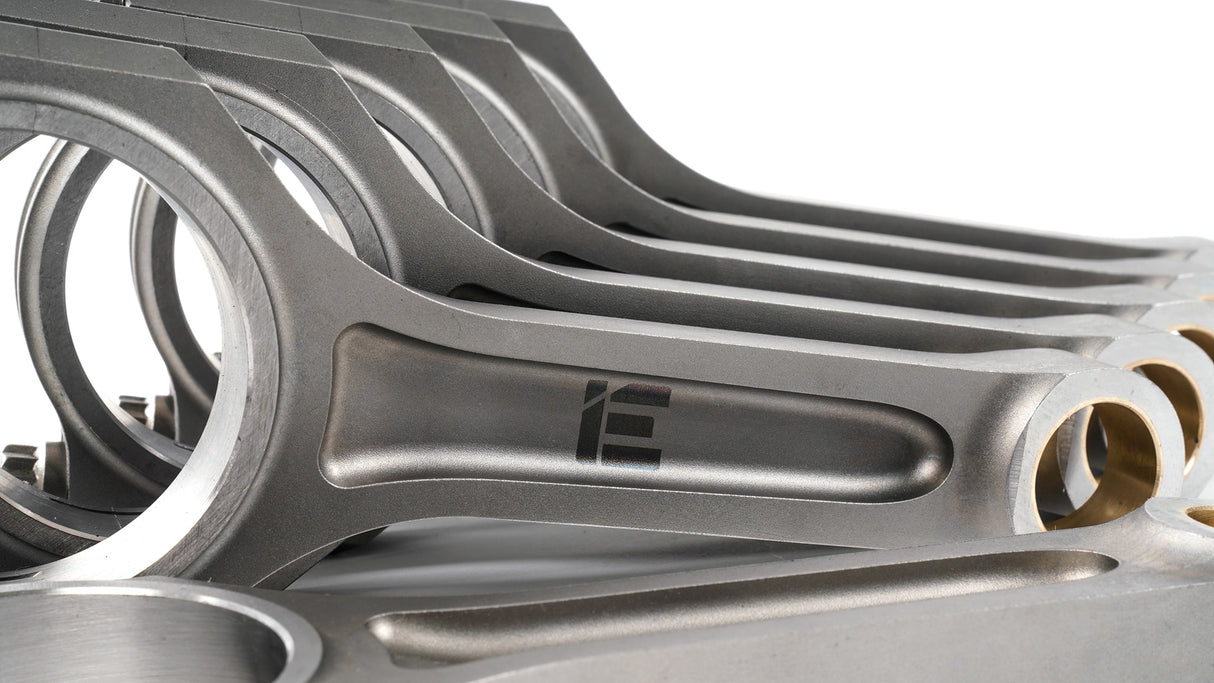

OPTIMIZED WEIGHT

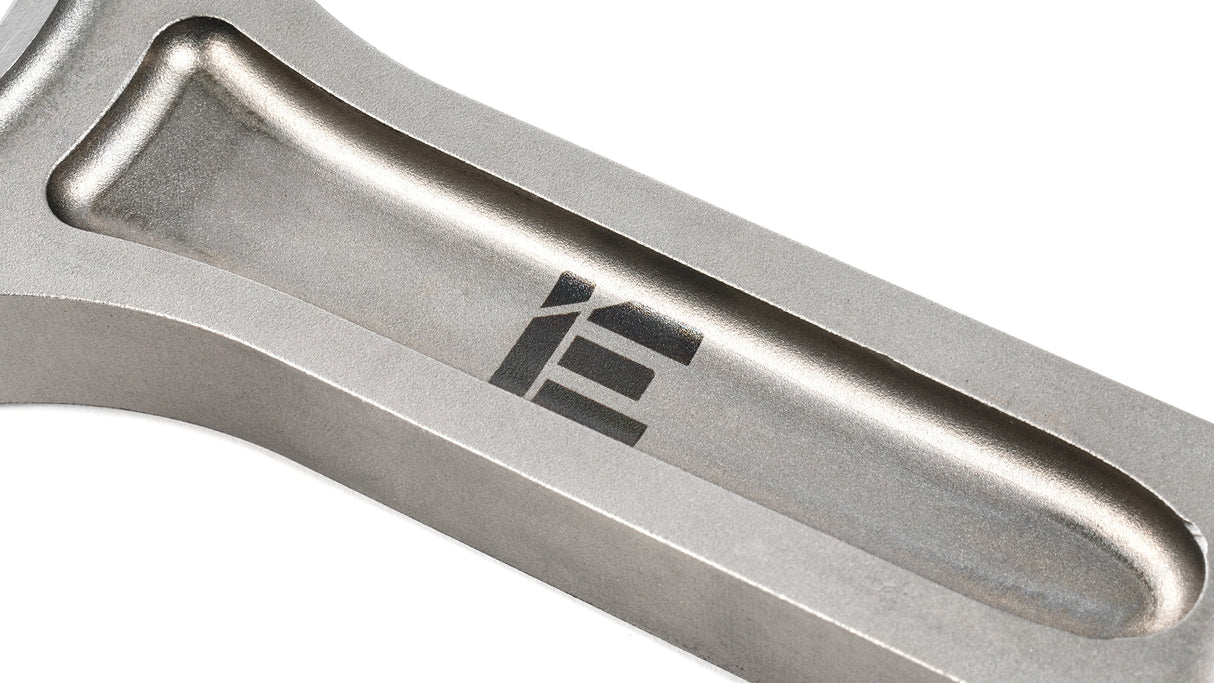

Creating a strong rod is one thing. The real challenge is crafting a robust beam while maintaining a lightweight design. iE's unique I-Beam shape results from an extensive process to identify the high-stress areas placed on the rod in a high-performance 3.0T engine. The resulting design evenly distributes these high-compressive loads across the strongest parts of the beam. This painstakingly iterative practice puts the material strength where it's needed, and trims the fat where it's not. Enjoy the confidence in an incredibly strong rod that won't slow down your rotating assembly with unnecessary weight.

PRECISION MANUFACTURING
Strength lies in the details. iE Tuscan connecting rods are forged from vacuum-drawn 4340 chrome moly steel, then surface-peened for enhanced fatigue strength. Each casting undergoes rigorous dimensional and magnaflux inspections to ensure top-quality forgings. Precision machining and diamond honing achieve critical tolerances of approximately 250 millionths of an inch. Finally, the rod sets are meticulously balanced to match weights within +/- 1 gram of each other, delivering a high-quality connecting rod set straight out of the box.

iE SPEC JE PISTONS
To complement the strength of our connecting rod design, iE has collaborated with the experts at JE Pistons to produce an equally robust iE Spec forged piston set (JE-30T-389543). Extensive testing revealed that the factory piston compression ratio in the EA839 engine is susceptible to excessive knock in very large turbo/high-boost builds. In response, JE developed a performance 3.0T piston forging with iE's optimized 10:1 compression ratio. These pistons boast additional features for high-performance builds, including Tuff Skirt coating, robust ring supports, sturdy 983M material forgings, and large 22mm wrist pins.



IMPORTANT NOTES:

  • Do not exceed rod bolt stretch/torque. If bolt stretch is exceeded, replace rod bolts with new ones.
  • Do not install bolts dry or with any other lubricant than the supplied ARP assembly lube.

Technical Specifications

  • Max torque: 1000ft-lbs (per set of 6)
  • Big end diameter: 58.74mm
  • Small end diameter: 22mm
  • Center to center: 155mm
  • Journal width: 20.04mm

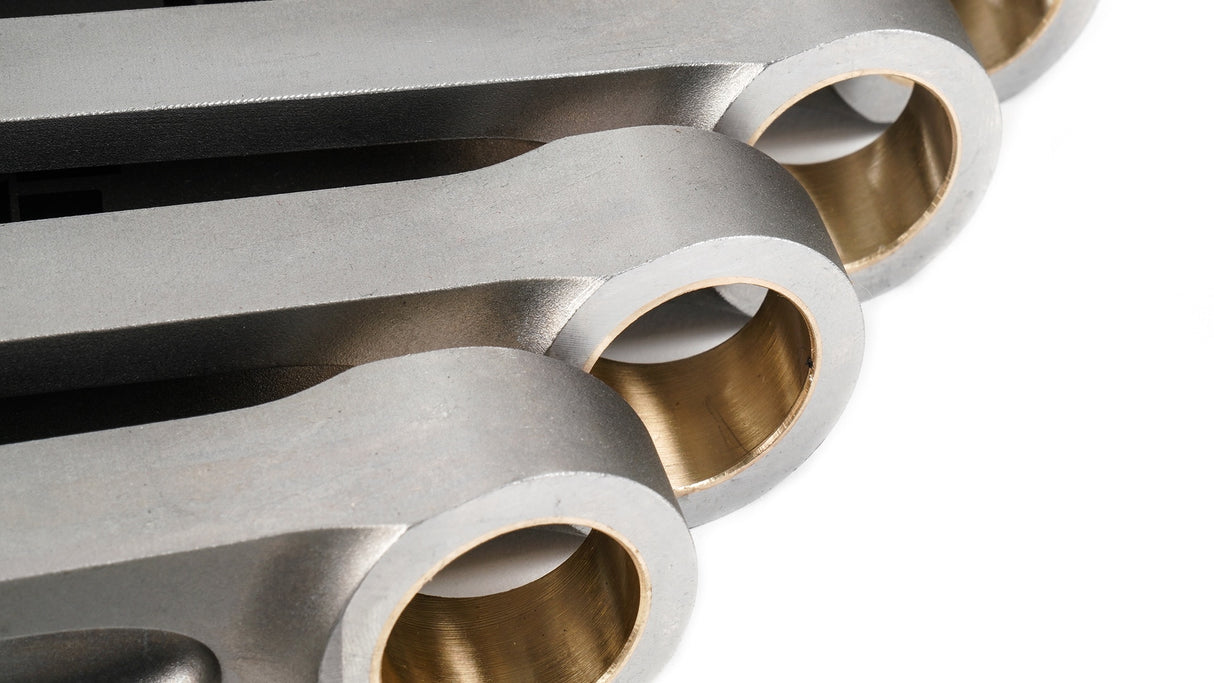

  • Small end style: Tapered
  • Material: 4340 chrome moly
  • Bolt: Genuine ARP 2000 3/8-1.5"
  • Weight (w/bolts): 630 grams average
  • Compatible bearings: Genuine Audi 3.0T

Installation Instructions

TORQUE PROCEEDURE
Accurate rod bolt pre-load is required to ensure proper bore clearances and roundness of the connecting rod big end for both measuring and final installation of your connecting rods. Before you begin, clean the rod mating surfaces and remove all packaging oil from the threads and rod bolts.



STEP 1 -PRE-TORQUE:
Before you final stretch your rod bolts, it's important the bolt and rod threads are fully seated.

  • Install rod bearings
  • Align matching printed numbers on the rod and cap
  • Assemble cap to rod
  • Apply ARP assembly lube to bolt threads
  • Hand-tighten bolts
  • Using a quality calibrated torque wrench, torque bolts to 50 ft/lbs
  • Break bolts loose, and again torque to 50 ft/lbs
  • Break bolts loose, then torque to 50 ft/lbs one final time


STEP 2 -FINAL TORQUE:
The final torque spec is .006" (stretch gauge) or 50 ft/lbs (torque wrench) with ARP assembly lube.

Stretch Gauge

  • Loosen bolt and zero stretch gauge
  • Tighten bolt to .006" stretch
  • Loosen second bolt and zero stretch gauge
  • Tighten second bolt to .006" stretch

Torque Wrench
Loosen bolt

  • Tighten bolt to 50 ft/lbs
  • Loosen second bolt
  • Tighten second bolt to 50 ft/lbs
