 |  SKU: 353834

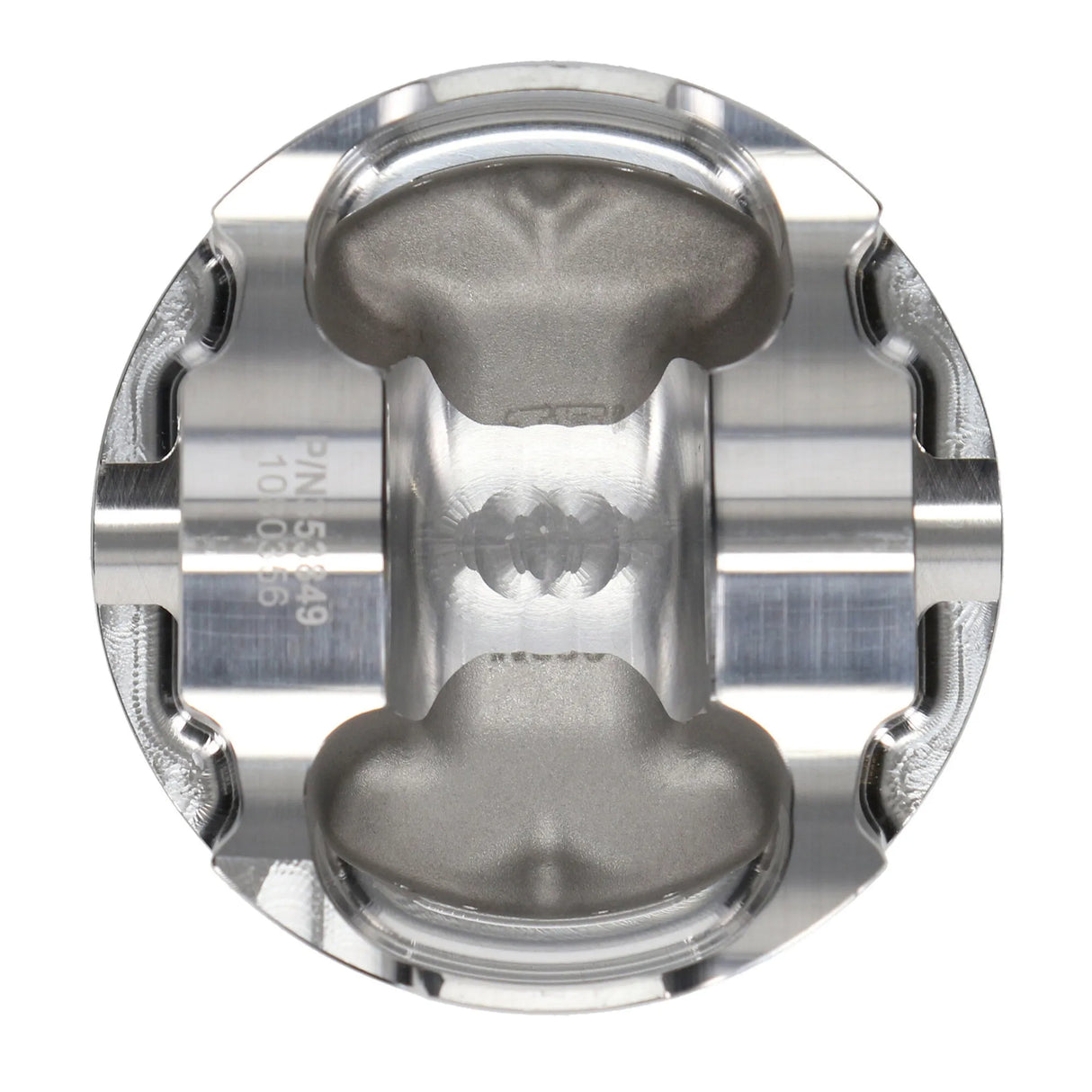

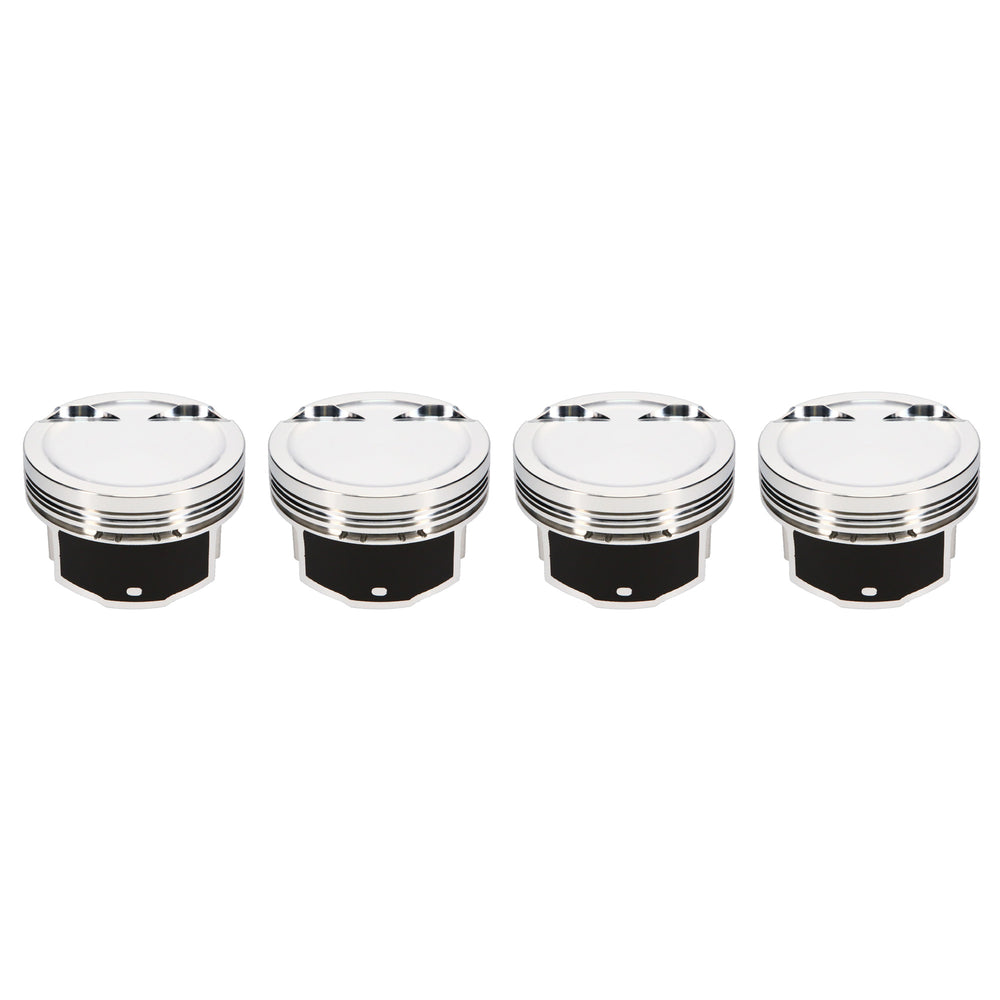

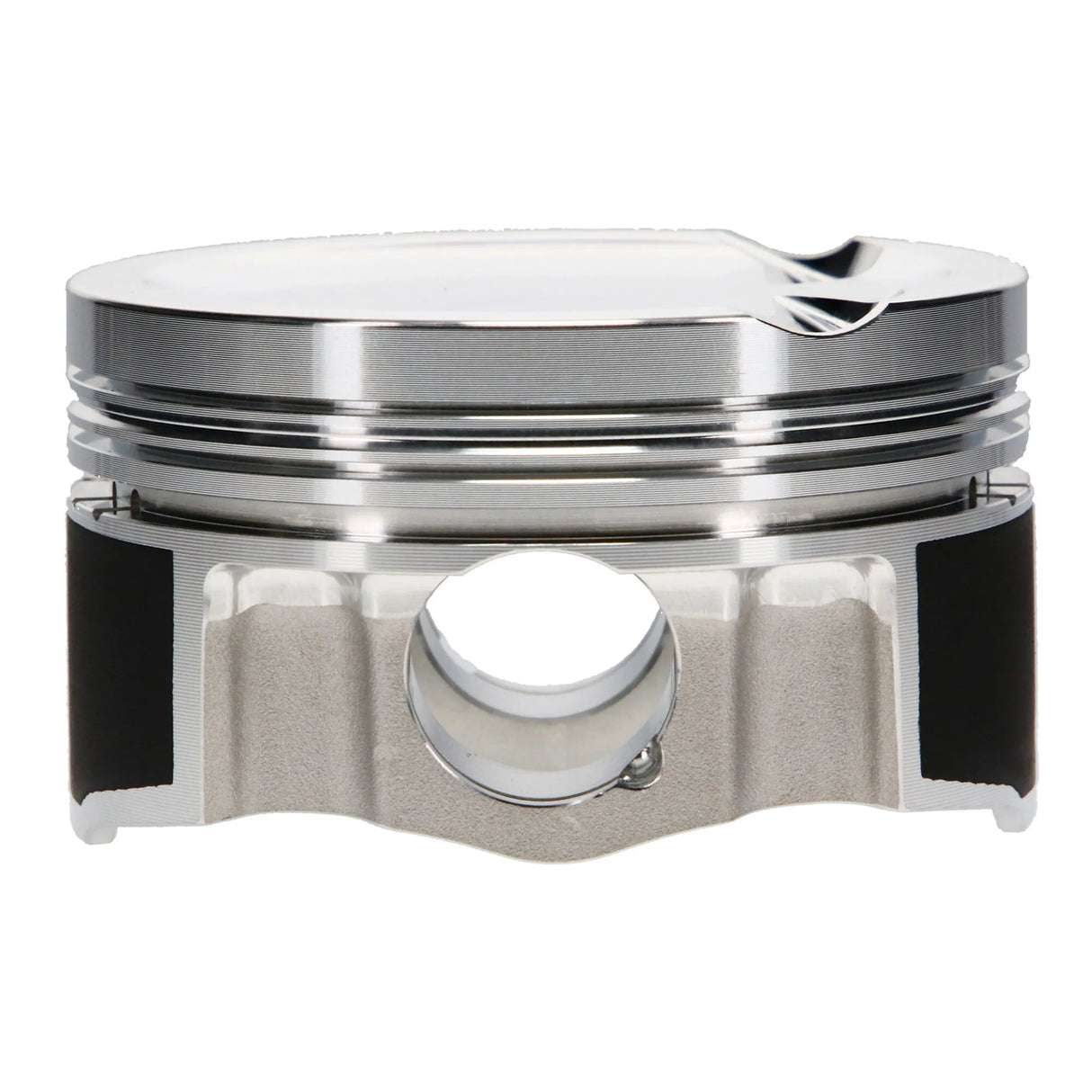

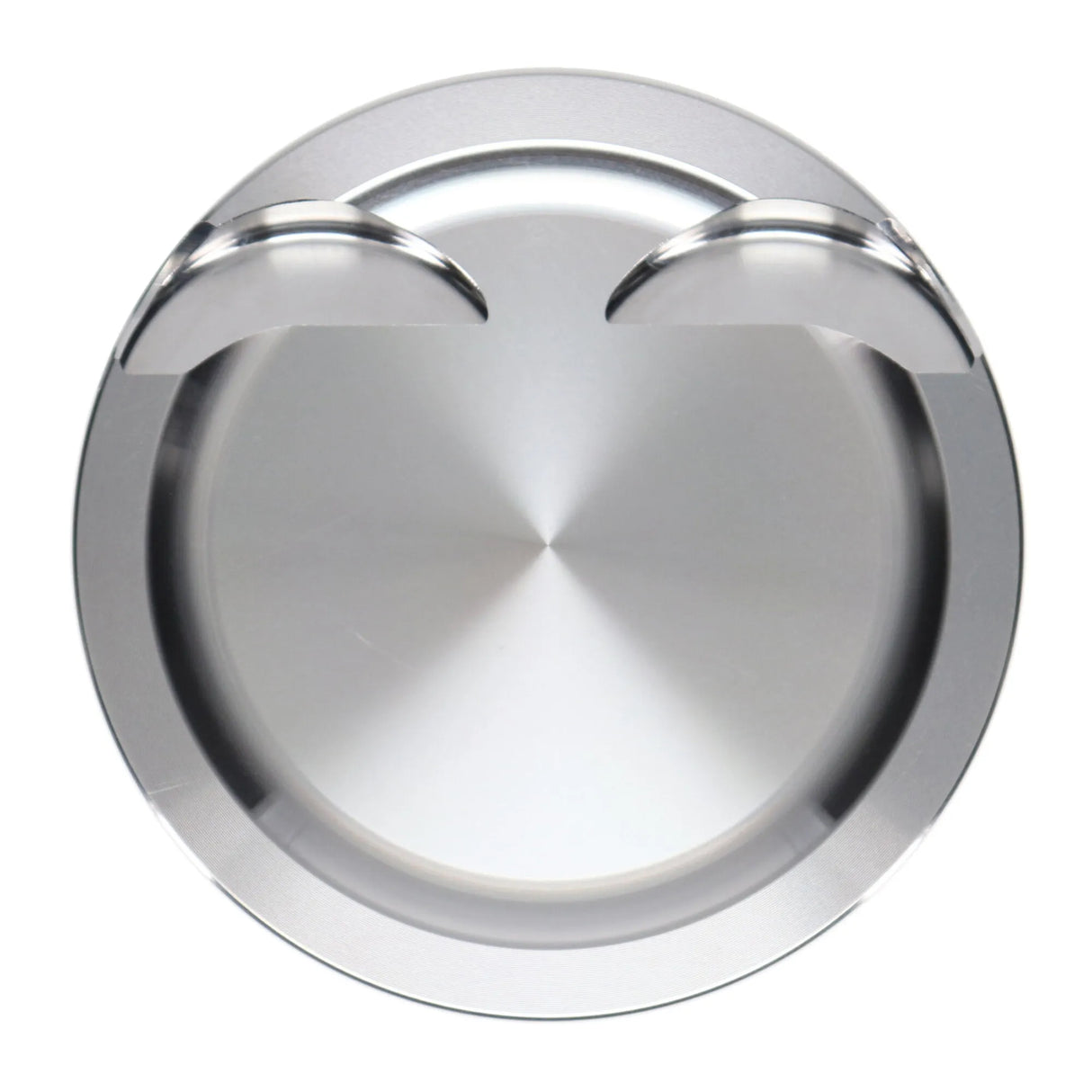

JE Pistons Forged Piston Set 83mm Bore w/20mm Pin

Audi/VW 2.0T FSI EA113 Engines
$1,829.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

With a history of proven performance and racing championships a mile wide, Audi and Volkswagen are known forces to be reckoned with. Their huge following of builders, tuners, and enthusiasts demand the best, and JE pistons brings nothing less to the table. JE's Audi and Volkswagen pistons are designed to take the abuse of racing, big boost, high RPM, and increased horsepower in stride. They feature our patented Perfect Skirt ® piston coating, an advanced Forged Side Relief (FSR) forging and are significantly bolstered in key areas such as the ring lands and crown for increased rigidity. All piston set includes carbon steel wrist pins, premium carbon steel gas nitrided piston rings, and locks.

Technical Specifications

  • Piston Series: JE Pistons
  • Cylinder Head: 2.0 TFSI
  • Bore Diameter: 83.00 MM
  • Piston Head Type: Dish
  • Compression Height: 1.165 IN
  • Piston Volume: -11.20 CC
  • Piston Material: 2618
  • Piston Quantity: 4
  • Forging Type: FSR
  • Ring Set Included: Yes
  • Top Compression Ring Thickness: 0.0400 IN
  • Second Compression Ring Thickness: 0.0480 IN
  • Oil Ring Thickness: 0.111 IN
  • Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
  • Wrist Pin Length: 2.250 IN
  • Wrist Pin Wall Thickness: 0.180 IN
  • Engine Detail: 2.0T FSI 04-08 20 mm Pin

Fitment Table
