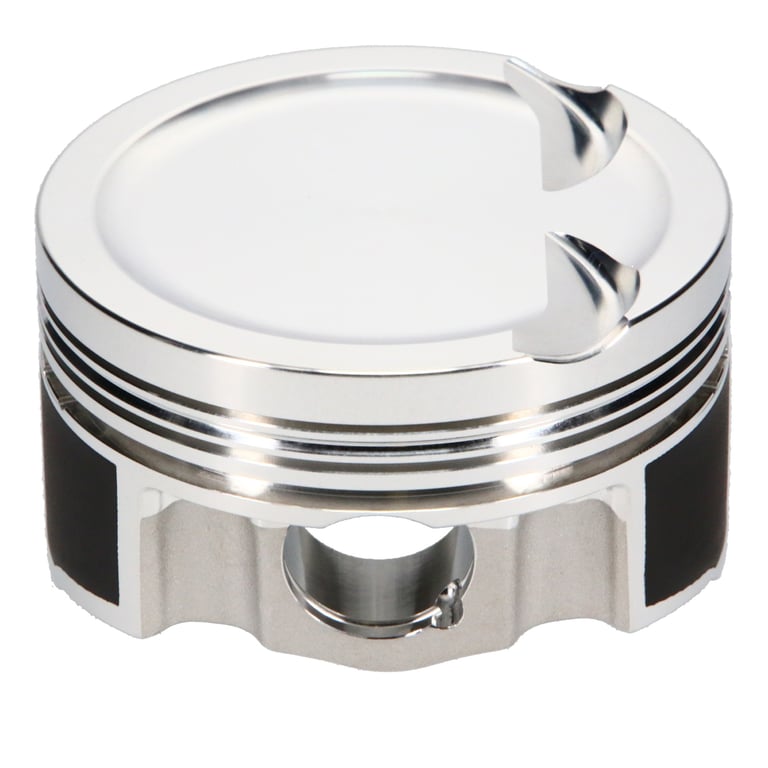

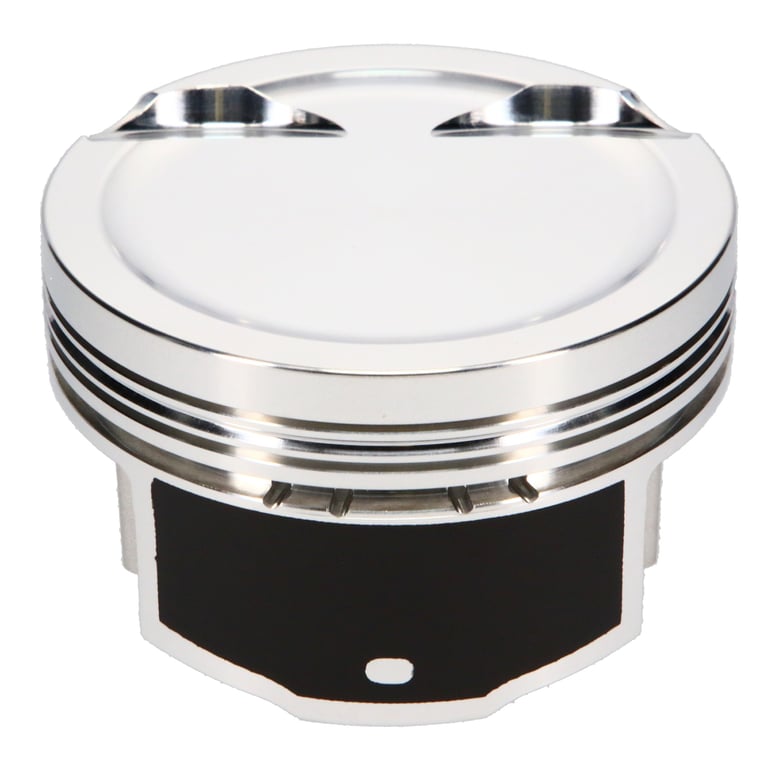

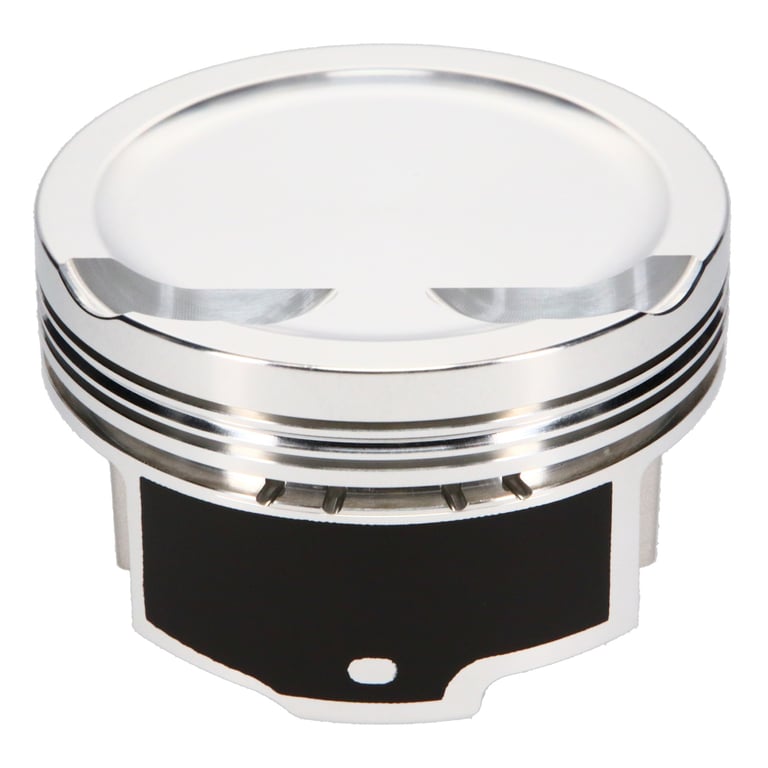

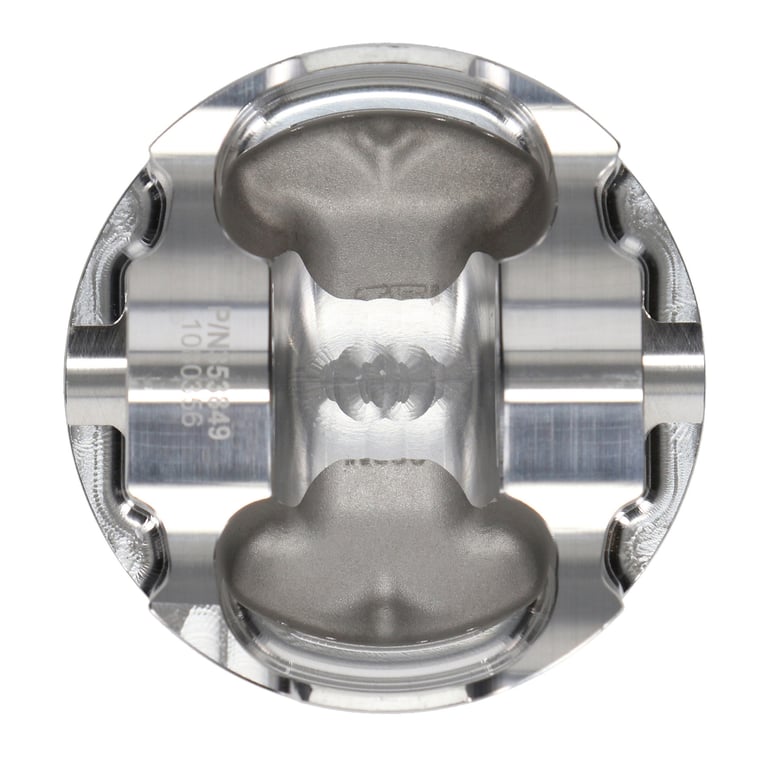

JE Forged Racing Pistons Set of 4 82.5mm

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

• Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
• Designed specifically for each engine and use application to provide optimized performance durability
• Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
• Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
• Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
• Includes high-quality wrist pins, locks, and JE Pro Seal premium piston ringsMade 100% in the USA

• Engine: 2.0T TSI 2013-2015 22 mm Pin
• Cylinder Head: 2.0 TSI
• Forging Type: FSR
• Bore Diameter: 82.50mm
• Compression Height: 1.165
• Compression Ratio: 9.6:1
• Piston Head Type: Dish
• Piston Material: 2618
• Piston Volume: -7.10
• Piston Quantity: 4
• Ring Set Included: Yes
• Second Compression Ring Thickness: 0.0480
• Top Compression Ring Thickness: 0.0400
• Wrist Pin Length: 2.250
• Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
• Wrist Pin Outer Diameter: 0.866
• Wrist Pin Wall Thickness: 0.150
• Oil Ring Thickness: 0.111
