| SKU:
353853

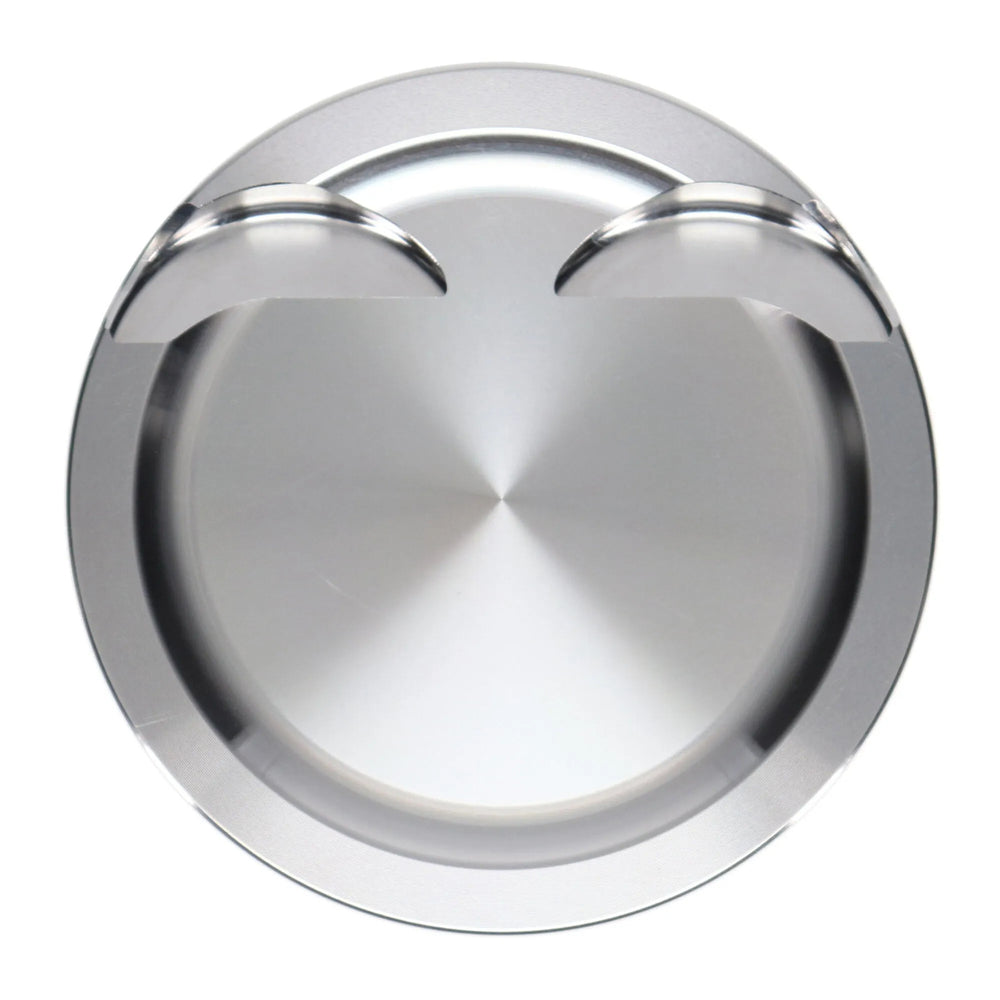

JE Forged Racing Pistons w/22mm Pin Set of 4
Audi A3, S3 8V/TT 8S/VW Golf GTI, R Mk7 Mk7.5 (EA888)
$1,499.00
Unit price
/
Unavailable
Earn [points_amount] when you buy this item.
-
International Shipping
We ship Worldwide
-
AUSSIE OWNED
-
FAST DISPATCH
-
WE PRICE MATCH
-
FLAT RATE SHIPPING
Description
Description
JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.
Technical Specifications
Technical Specifications
| Engine | 2.0T TSI 2013-2015 22MM PIN |
|---|---|
| Bore Diameter | 83.00 |
| Compression Height | 1.165 |
| Piston Head Type | Dish |
| Piston Volume | -5.2 |
| Cylinder Head | 2.0 TSI |
| Pin Part Number | 866-2250-15-51C |
| Piston Pin Outside Diameter | 0.866 |
| Piston Pin Inside Diameter | 0.566 |
| Piston Pin Length | 2.250 |
| Piston Pin Wall Thickness | 0.150 |
| Piston Pin Material | 5115 |
| Retainer Lock Part Number | 866-063-MW |
| Ringset Included | Yes |
| Ringset Number | JG1001-3268 |
| Top Compression Ring Thickness | 0.04 |
| Second Compression Ring Thickness | 0.048 |
| Oil Ring Thickness | 0.111 |
| Piston Material | 2618 |
| Forging Type | FSR |
