| SKU:
345819

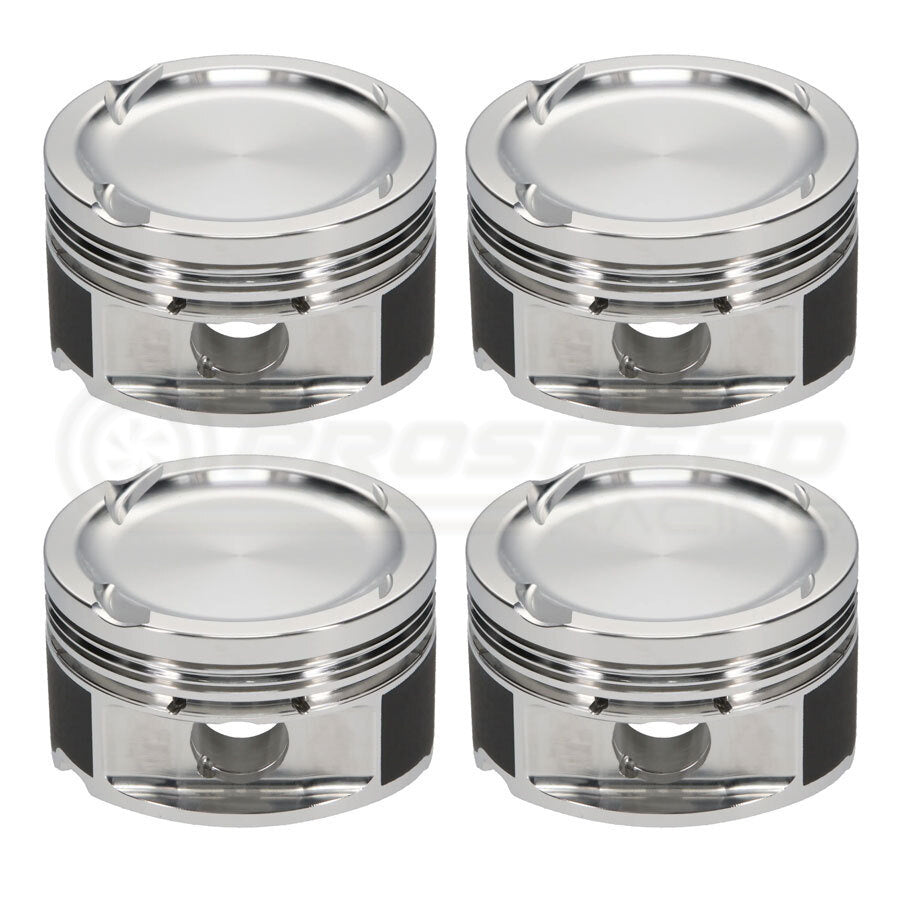

JE Pistons Forged Piston Set 83.0mm Bore 9.6:1 CR
Audi/VW (2.0 TFSI/TSI EA888)
-
International Shipping
We ship Worldwide
-
AUSSIE OWNED
-
FAST DISPATCH
-
WE PRICE MATCH
-
FLAT RATE SHIPPING
Description
Description
With a history of proven performance and racing championships a mile wide, Audi and Volkswagen are known forces to be reckoned with. Their huge following of builders, tuners, and enthusiasts demand the best, and JE pistons brings nothing less to the table. JE’s Audi and Volkswagen pistons are designed to take the abuse of racing, big boost, high RPM, and increased horsepower in stride. They feature our patented Perfect Skirt ® piston coating, an advanced Forged Side Relief (FSR) forging and are significantly bolstered in key areas such as the ring lands and crown for increased rigidity. All piston set includes carbon steel wrist pins, premium carbon steel gas nitrided piston rings, and locks.
Technical Specifications
Technical Specifications
| Bore (in) | 3.268 |
|---|---|
| Bore (mm) | 83. |
| Top Compression Ring Thickness | 0.0400 |
| Second Compression Ring Thickness | 0.0480 |
| Oil Ring Thickness | 0.111 |
| Forging Type | Round |
| Volume (cc) | -7.80 |
| Series | JE Pistons |
| Piston Head Type | Inv Dome/Dish |
| Pin Diameter (IN) | 0.905 |
| Compression Height | 1.165 |
| Make | AUDI / VOLKSWAGEN |
| Wrist Pin Style - floating or press fit | Floating |
| Wall Type | CHAMFERED |
| Wall Thickness (IN) | 0.150 |
| Ringset Part Number | JG1001-3268 |
| Ring Brand | ProSeal |
| Ringset Included | Yes |
| Retainer Thickness | 0.073 |
| Retainer Lock Style | Wire Lock |
| Retainer Lock Part Number | 905-073-MW |
| Retainer Diameter (IN) | 0.905 |
| Replacement Single Piston | 345819S |
| Piston Pin Inside Diameter | 0.605 |
| Piston Pin Material | 5115 LOW CARBON STEEL, CASE HARDENED |
| Piston Material | 2618 |
| Piston Pin Length (IN) | 2.250 |
| Pin Offset | Yes |
| Pin Brand | JE Pistons |
| Pin Part Number | 905-2250-15-51C |
| Pin Included | Yes |
| Pin Diameter (mm) | 23.00 |
| Oil Rail Support Included | No |
| Deck Clearance | 0.000 |
| Brand | JE Pistons |
