Kelford Performance Camshafts

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

Profiles:

184-C

• VVL lobe spec: 314 °/308 ° | 12.50mm/11.80mm Valve Lift
• Primary lobe spec: Intake: 250 °/10.2mm | Exhaust: 246 °/8.3mm
• Naturally aspirated racing cams to suit well modified engines.
• Suits engines with high compression, ported cylinder head and good intake and exhaust systems.
• Mild idle on plenum style intake manifold.
• VVL crossover around 5.5k rpm depending on engine.
• VVL will pull to around 9.5k rpm depending on engine.
• Kelford Cams recommend KVS10-BT valve spring kit.

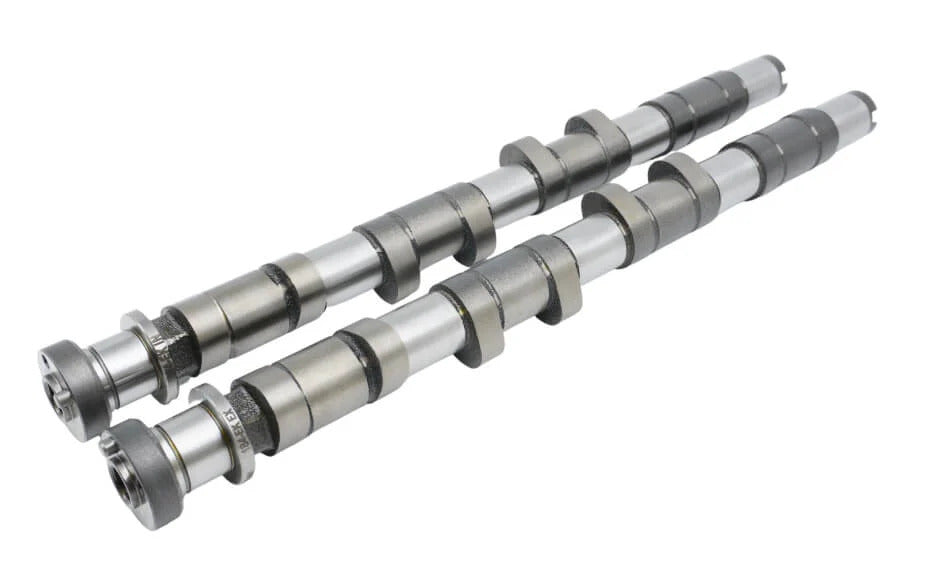

184-C4

• VVL lobe spec: 314 °/308 ° | 12.50mm/11.80mm Valve Lift
• Primary lobe spec: Intake: 272 °/10.2mm | Exhaust: 254 °/10.2mm
• Naturally aspirated track and drag racing cams to suit well modified engines.
• Suits engines with high compression, ported cylinder head and good intake and exhaust systems.
• Great with stroker kits and ITB intake. Rough idle on plenum style intake manifold.
• Large low lobe spec for strong mid-range power.
• VVL crossover around 6k rpm depending on engine.
• VVL will pull to around 10k rpm depending on engine.
• Kelford Cams recommend KVS10-BT valve spring kit.

184-D

• VVL lobe spec: 300 °/300 ° | 12.00mm/11.90mm Valve Lift
• Primary lobe spec: Intake: 250 °/10.2mm | Exhaust: 246 °/8.3mm
• The ultimate street naturally aspirated cams for SR16VE/SR20VE engines.
• Nissan N1 main lobe with 20V spec side lobes.
• Still maintains good street drivability and mild idle off-VVL.
• The 184-D VVL lobes open up top end power in the 5.5k-9k rpm range for track use or spirited driving.
• Must have basic intake and exhaust system upgrades.
• Kelford Cams recommend KVS10-BT valve spring kit.

184-E

• VVL lobe spec: 318 °/308 ° | 13.00mm/11.80mm Valve Lift
• Primary lobe spec: Intake: 272 °/10.2mm | Exhaust: 254 °/10.2mm
• Naturally aspirated track and drag racing cams to suit professionally built engines running on race fuel.
• Great with stroker kits and ITB intake.
• Ideal in a lightweight car with close ratio gears.
• Not for street cars.
• VVL will pull to around 10k+ rpm.
• Kelford Cams recommend KVS10-BT valve spring kit.

184-EK

• VVL lobe spec: 318 °/308 ° | 13.00mm/11.80mm Valve Lift
• Centre lobe removed, large lobe profile on outer lobes to allow for VVL system to be removed for less valvetrain mass.
• Naturally aspirated track and drag racing cams to suit professionally built engines running on race fuel.
• Great with stroker kits and ITB intake.
• Ideal in a lightweight car with close ratio gears.
• Not for street cars.
• Cams will pull to around 10k+ rpm.
• Kelford Cams recommend KVS10-BT valve spring kit.

184-LT

• VVL lobe spec: 274 °/274 ° | 10.60mm/10.60mm Valve Lift
• Primary lobe spec: Intake: 250 °/10.2mm | Exhaust: 246 °/8.3mm
• The ultimate street turbo cams to suit 350-550hp SR16VE/SR20VE engines.
• Suits turbo sizing 48-58mm.
• Valve timing of primary and VVL lobes is optimised for turbo setups helping produce a broader power band compared to OEM cams.
• These cams will give excellent throttle response more mid-range and more top end power than OEM. Still maintains good street drivability.
• Kelford Cams recommend KVS10-BT valve spring kit.

184-ST

• VVL lobe spec: 290 °/290 ° | 10.60mm/10.60mm Valve Lift
• Primary lobe spec: Intake: 250 °/10.2mm | Exhaust: 246 °/8.3mm
• The ultimate street/track turbo cams to suit 400-700hp SR16VE/SR20VE engines.
• Suits turbo sizing 54-67mm.
• 184-ST has the same primary lobes as the smaller 184-LT so maintains good street drivability off-VVL.
• VVL activates around 5.5k rpm pulling to around 9k rpm depending on engine. Great with E85.
• Kelford Cams recommend KVS10-BT valve spring kit.

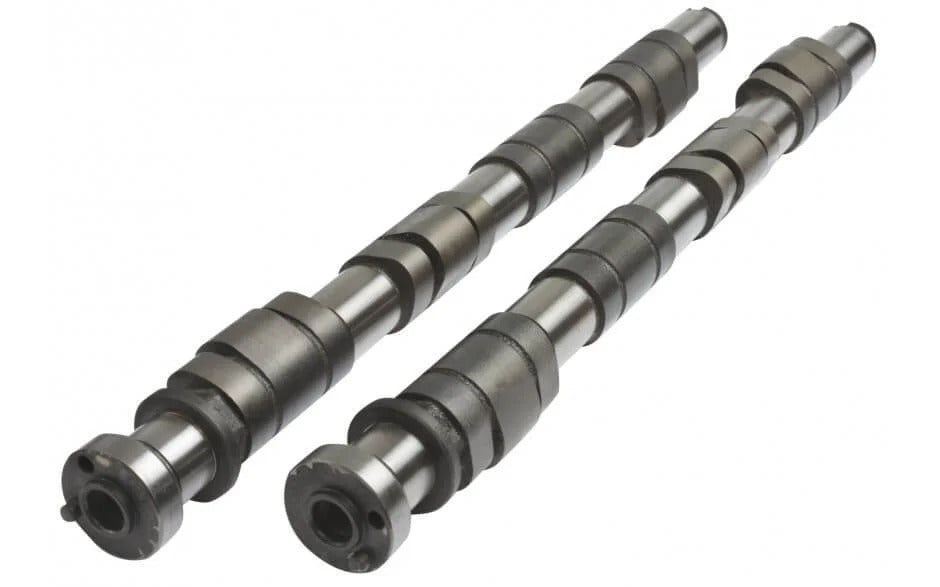

184-STK

• VVL lobe spec: 290 °/290 ° | 10.60mm/10.60mm Valve Lift
• Centre lobe removed, large lobe profile on outer lobes to allow for VVL system to be removed for less valvetrain mass
• Racing cams to suit 400-700hp turbocharged SR16VE/SR20VE engines.
• Suits turbo sizing 54-67mm.
• These will make power to around 9k rpm. Great with E85.
• Kelford Cams recommend KVS10-BT valve spring kit.

184-T

• VVL lobe spec: 292 °/308 ° | 11.40mm/11.40mm Valve Lift
• Primary lobe spec: Intake: 60 °/10.2mm | Exhaust: 260 °/10.15mm
• Track and drag racing cams to suit high rpm turbocharged 700hp-1000hp+ SR16VE/SR20VE engines.
• Suits 67mm+ turbo.
• Great with alcohol based fuels.
• Large off-VVL lobes for improved mid-range power,
• VVL lobes will pull to 10k+ rpm.
• Kelford Cams recommend KVS10-BT valve spring kit.

184-TK

• VVL lobe spec: 292 °/308 ° | 11.40mm/11.40mm Valve Lift
• Centre lobe removed, large lobe profile on outer lobes to allow for VVL system to be removed for less valvetrain mass.
• Drag racing cams to suit high rpm turbocharged 700hp-1000hp+ SR16VE/SR20VE engines.
• Suits 67mm+ turbo. Great with alcohol based fuels. 10k+ rpm.
• Kelford Cams recommend KVS10-BT valve spring kit.

184-TK2

• VVL lobe spec: 296 °/302 ° | 12.50mm/12.50mm Valve Lift
• Centre lobe removed, large lobe profile on outer lobes to allow for VVL system to be removed for less valvetrain mass.
• Drag racing cams to suit high rpm turbocharged 1100hp+ SR16VE/SR20VE engines.
• Suits 72mm+ turbo. Great with alcohol based fuels. 10k+ rpm.
• Kelford Cams recommend KVS10-BT valve spring kit.
