Kelford Performance Camshafts
Mitsubishi Evo 1-3 (Solid Lifter)
This product is in stock & ready to be dispatched.
This product has very limited stock remaining.
Product will be in stock soon.
This product is not ready for immediate dispatch and will ship in the timeframe displayed.
This product is not available at this time. Request ETA Information
Earn [points_amount] when you buy this item.
Description
Description

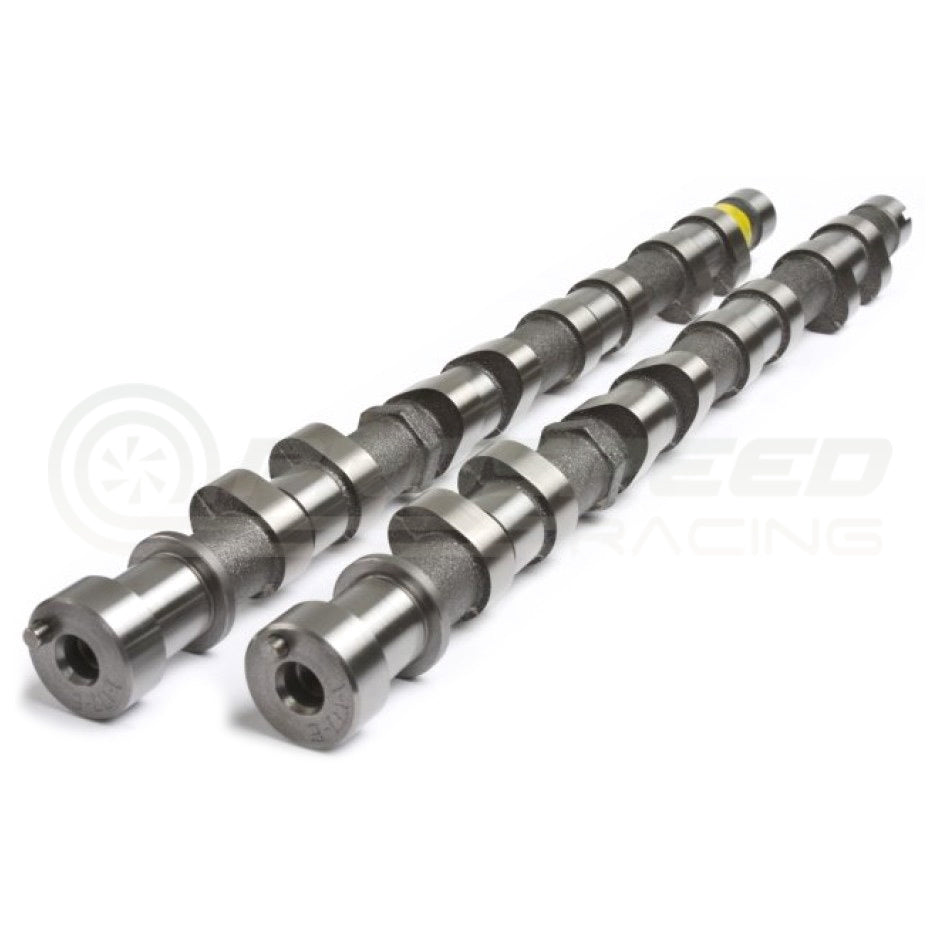

Kelford Cams' camshafts for Mitsubishi 4G63 DOHC engines are renowned worldwide for their superior results. This range is for the first generation of the DOHC 4G63T, from the VR4 Galant through to the Evolution 3, with a solid lifter conversion. All of the cams in this range are ground on our Toyoda CNC masterless cam grinder to consistently deliver the highest quality product.
Due to popular demand, we now offer a range of catalogue designs to cater for 4G63 engines with a solid lifter conversion; this range is ideal for those serious motorsport applications where use of aggressive limiters for launch, shift and anti-lag may cause hydraulic lifter pump up.
We have developed a proven range of camshafts for this engine to suit most applications. However, if you can't find your perfect camshaft within our range, designing custom profiles is our specialty! Simply order the custom camshaft and provide us all the details of your build. Confidential development for race teams is also available.
Camshaft Profiles - Click "Specifications" Tab for profile data:
1-SLX260:
- 260/264 Degree advertised duration, 10.50mm/10.50mm lift.
- Cams for Mitsubishi 4G63 VR4 Evolution 1-3 engines with solid lifter conversion, to suit 32-40mm restrictor plate and GPA rally engines.
1-SLX272:
- 272/274 Degree advertised duration, 11.00mm/11.00mm lift
- Cams for Mitsubishi 4G63 VR4 Evolution 1-3 engines with solid lifter conversion. This is the solid version of our mega popular TX272 design.
1-SLX282:
- 282/288 Degree advertised duration, 11.50mm/11.50mm lift.
- Cams for Mitsubishi 4G63 VR4 Evolution 1-3 engines with solid lifter conversion. High HP racing cams, suits well built time attack and drag racing engines. Ideal for motors over 700hp using E85.
1-SLX294:
- 294/300 Degree advertised duration, 12.00mm/12.00mm lift.
- For Mitsubishi 4G63 VR4 Evolution 1-3 engines. Drag Racing cams to suit extreme boost, high RPM engines that use Ethanol / Methanol and/or nitrous.
Technical Specifications
Technical Specifications
1-SLX260
Engine Make: | Engine Model: | Part Number: | |||||
MITSUBISHI | 4G63 EVO 1-3 | 1-SLX260 | |||||
Valve Clearance: | Intake: | 0.20mm | Set | COLD | at the | CAM | |
Exhaust: | 0.20mm | Set | COLD | at the | CAM | ||
Cam Lift: | Intake: | 6.27mm | Exhaust: | 6.27mm | |||
Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
Nett Valve Lift: | Intake: | 10.50mm | Exhaust: | 10.50mm | |||
Advertised Duration @ | Intake: | 260 | Exhaust: | 264 | |||
Duration @ | 1.00mm VALVE LIFT | Intake: | 212 | Exhaust: | 220 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 1 ATDC | EVO: | 43 BBDC | ||
IVC: | 33 ABDC | EVC: | 3 BTDC | ||||
Suggested Centre Lines: | Intake: | 107 | Exhaust: | 113 | |||
VALVE | Lift @ TDC | Intake: | 0.97mm | Exhaust: | 0.79 |
1-SLX272
Engine Make: | Engine Model: | Part Number: | |||||
MITSUBISHI | 4G63 EVO 1-3 | 1-SLX272 | |||||
Valve Clearance: | Intake: | 0.20mm | Set | COLD | at the | CAM | |
Exhaust: | 0.20mm | Set | COLD | at the | CAM | ||
Cam Lift: | Intake: | 6.56mm | Exhaust: | 6.56mm | |||
Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
Nett Valve Lift: | Intake: | 11.00mm | Exhaust: | 11.00mm | |||
Advertised Duration @ | 0.10mm | Intake: | 272 | Exhaust: | 274 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 228 | Exhaust: | 230 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 6 BTDC | EVO: | 50 BBDC | ||
IVC: | 42 ABDC | EVC: | 0 TDC | ||||
Suggested Centre Lines: | Intake: | 108 | Exhaust: | 115 | |||
VALVE | Lift @ TDC | Intake: | 1.46mm | Exhaust: | 0.99 |
1-SLX282
Engine Make: | Engine Model: | Part Number: | |||||
MITSUBISHI | 4G63 EVO 1-3 | 1-SLX282 | |||||
Valve Clearance: | Intake: | 0.20mm | Set | COLD | at the | CAM | |
Exhaust: | 0.20mm | Set | COLD | at the | CAM | ||
Cam Lift: | Intake: | 6.85mm | Exhaust: | 6.85mm | |||
Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
Nett Valve Lift: | Intake: | 11.50mm | Exhaust: | 11.50mm | |||
Advertised Duration @ | 0.10mm | Intake: | 282 | Exhaust: | 288 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 240 | Exhaust: | 244 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 11 BTDC | EVO: | 58 BBDC | ||
IVC: | 49 ABDC | EVC: | 6 ATDC | ||||
Suggested Centre Lines: | Intake: | 109 | Exhaust: | 116 | |||
VALVE | Lift @ TDC | Intake: | 2.04mm | Exhaust: | 1.35 |
1-SLX294
Engine Make: | Engine Model: | Part Number: | |||||
MITSUBISHI | 4G63 EVO 1-3 | 1-SLX294 | |||||
Valve Clearance: | Intake: | 0.20mm | Set | COLD | at the | CAM | |
Exhaust: | 0.20mm | Set | COLD | at the | CAM | ||
Cam Lift: | Intake: | 7.14mm | Exhaust: | 7.14mm | |||
Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
Nett Valve Lift: | Intake: | 12.00mm | Exhaust: | 12.00mm | |||
Advertised Duration @ | 0.10mm | Intake: | 294 | Exhaust: | 300 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 252 | Exhaust: | 258 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 16 BTDC | EVO: | 67 BBDC | ||
IVC: | 56 ABDC | EVC: | 11 ATDC | ||||
Suggested Centre Lines: | Intake: | 110 | Exhaust: | 118 | |||
VALVE | Lift @ TDC | Intake: | 2.50mm | Exhaust: | 1.81 |
