 |  SKU: 264-A

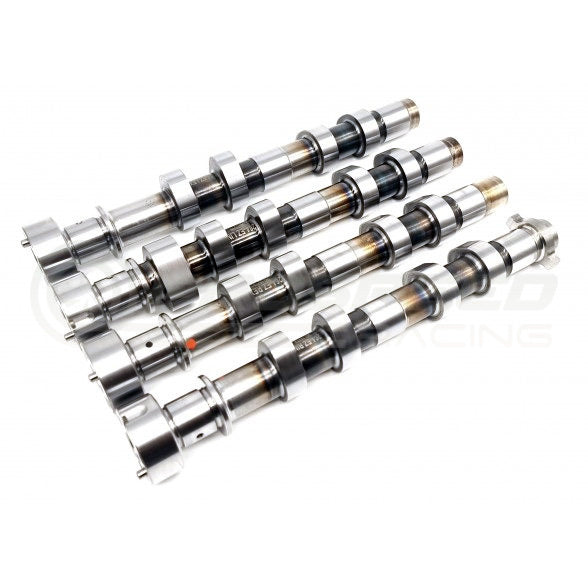

Kelford Performance Camshafts

Subaru WRX VA (FA20)
In Stock :

This product is in stock & ready to be dispatched.
Very low inventory :

This product has very limited stock remaining.
Incoming :

Product will be in stock soon.
Usually Ships In :

This product is not ready for immediate dispatch and will ship in the timeframe displayed.
Sold Out - Out of stock :

This product is not available at this time. Request ETA Information

$1,667.95
Camshaft Profile

Earn [points_amount] when you buy this item.

Description


This range of Kelford Camshafts suit the Subaru FA20F engine which is found in the 2015+ WRX and other later Subaru models. Developed for a range of performance stages we have a cam set for every application, from street cars through to professional built drag cars. If you need help selecting the best cam for your build, get in touch with our friendly technical support team at sales@kelfordcams.com.



Camshaft Profiles - Click "Specifications" Tab for profile data:

264-A:

  • 272/276 Degrees advertised duration. 11.60mm/11.60mm lift.
  • 272° Performance cams to suit most motorsport applications, designed for 450hp-600hp engines. Requires KVS87-DT valve spring and retainer set. Piston to valve clearance must be checked.

264-B:

  • 280/286 Degrees advertised duration. 11.80mm/11.80mm lift.
  • 280°/286° High power, High RPM Drag racing cams. Requires KVS87-DT valve spring and retainer set. Piston to Valve clearance must be checked.

264-EZ:

  • 262/264 Degrees advertised duration. 11.40mm/11.40mm lift.
  • Drop-in cam to suit factory valve springs. Good upgrade in power across the entire rev range, keeping almost OEM response. Must retain stock rev limit if OEM spring is used.


Technical Specifications

264-A

Engine Make: Engine Model: Part Number:
SUBARU FA20F Turbo 2015+ WRX 264-A
Valve Clearance: Intake: 0.15mm Set COLD at the CAM
  Exhaust: 0.20mm Set COLD at the CAM

Cam Lift:   Intake: 6.82mm Exhaust: 6.75mm
Rocker Ratio:   Intake: 1.74 Exhaust: 1.77
Nett Valve Lift:   Intake: 11.60mm Exhaust: 11.60mm
Advertised Duration @ 0.10mm Intake: 272 Exhaust: 276
Duration @ 1.00mm VALVE LIFT Intake: 228 Exhaust: 232
Timing @ 1.00mm VALVE LIFT IVO:   EVO:
    IVC:   EVC:
Suggested Centre Lines:   Intake: VARI Exhaust: VARI
  Lift @ TDC Intake:   Exhaust:





 264-B

Engine Make: Engine Model: Part Number:
SUBARU FA20F Turbo 2015+ WRX 264-B
Valve Clearance: Intake: 0.15mm Set COLD at the CAM
  Exhaust: 0.20mm Set COLD at the CAM

Cam Lift:   Intake: 6.93mm Exhaust: 6.87mm
Rocker Ratio:   Intake: 1.74 Exhaust: 1.77
Nett Valve Lift:   Intake: 11.80mm Exhaust: 11.80mm
Advertised Duration @ 0.10mm Intake: 280 Exhaust: 286
Duration @ 1.00mm VALVE LIFT Intake: 238 Exhaust: 244
Timing @ 1.00mm VALVE LIFT IVO:   EVO:
    IVC:   EVC:
Suggested Centre Lines:   Intake: VARI Exhaust: VARI
  Lift @ TDC Intake:   Exhaust:





 264-EZ

Engine Make: Engine Model: Part Number:
SUBARU FA20F Turbo 2015+ WRX 264-EZ
Valve Clearance: Intake: 0.15mm Set COLD at the CAM
  Exhaust: 0.20mm Set COLD at the CAM

Cam Lift:   Intake: 6.70mm Exhaust: 6.64mm
Rocker Ratio:   Intake: 1.74 Exhaust: 1.77
Nett Valve Lift:   Intake: 11.40mm Exhaust: 11.40mm
Advertised Duration @ 0.10mm Intake: 262 Exhaust: 264
Duration @ 1.00mm VALVE LIFT Intake: 214 Exhaust: 218
Timing @ 1.00mm VALVE LIFT IVO:   EVO:
    IVC:   EVC:
Suggested Centre Lines:   Intake: VARI Exhaust: VARI
  Lift @ TDC Intake:   Exhaust:

Fitment Table
