 |  SKU: 225-A

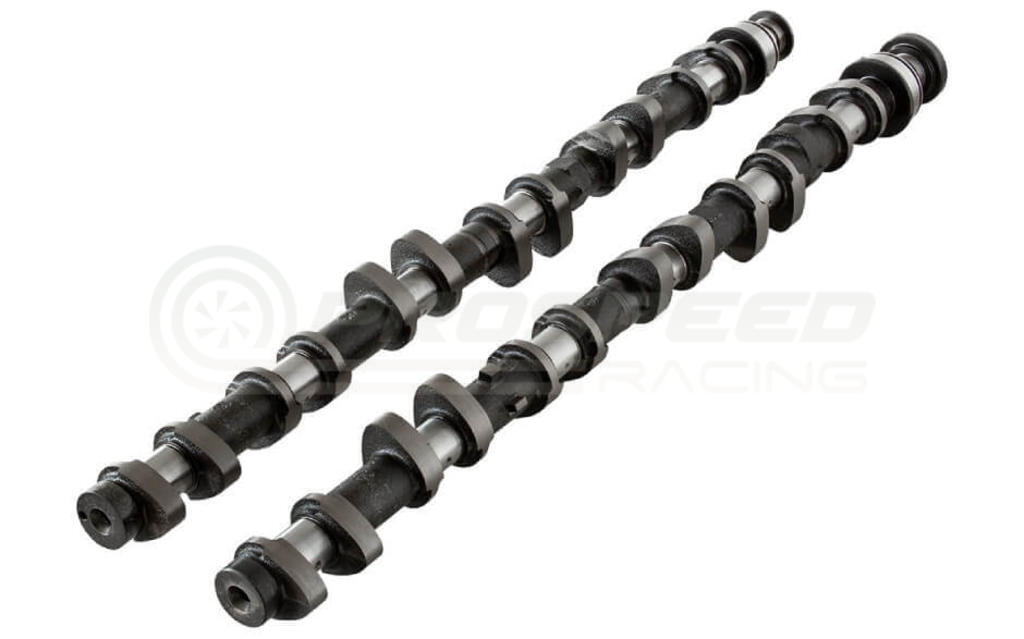

Kelford Performance Camshafts

Toyota Landcruiser (1FZ-FE)
In Stock :

This product is in stock & ready to be dispatched.
Very low inventory :

This product has very limited stock remaining.
Incoming :

Product will be in stock soon.
Usually Ships In :

This product is not ready for immediate dispatch and will ship in the timeframe displayed.
Sold Out - Out of stock :

This product is not available at this time. Request ETA Information
$1,599.95
Camshaft Profile

Earn [points_amount] when you buy this item.

Description

The Kelford range of cams for the Toyota 1FZ-FE 24 valve, 4.5L DOHC engine, caters for everything from near stock engines right through to serious, high HP stoker engine builds. You will mostly find our 1FZ-FE camshafts and valve springs used in Toyota Land Cruisers, raced on and off road by our good friends in the U.A.E.



Camshaft Profiles - Click "Specifications" Tab for profile data:



225-A:

  • 264/264 Degrees advertised duration. 9.70mm/9.65mm lift.
  • Stage 1 mild performance cams to suit a near stock engine.

225-B:

  • 270/270 Degrees advertised duration. 9.65mm/9.65mm lift.
  • Stage 2 cams to suit mildly modified engines.

225-C:

  • 284/284 Degrees advertised duration. 10.60mm/10.55mm lift.

225-T1:

  • 276/284 Degrees advertised duration. 10.35mm/10.55mm lift.
  • 1FZ-FE Turbo cams for high HP engine builds.



Vehicle Fitment:

  • Toyoto Landcruiser 70 Series, 79 Series, 80 Series, 100 Series (1FZ-FE 4.5L 6cyl)

Technical Specifications

225-A:



225-B:



225-C:



225-T1:

Fitment Table
