 |  SKU: 100-0176

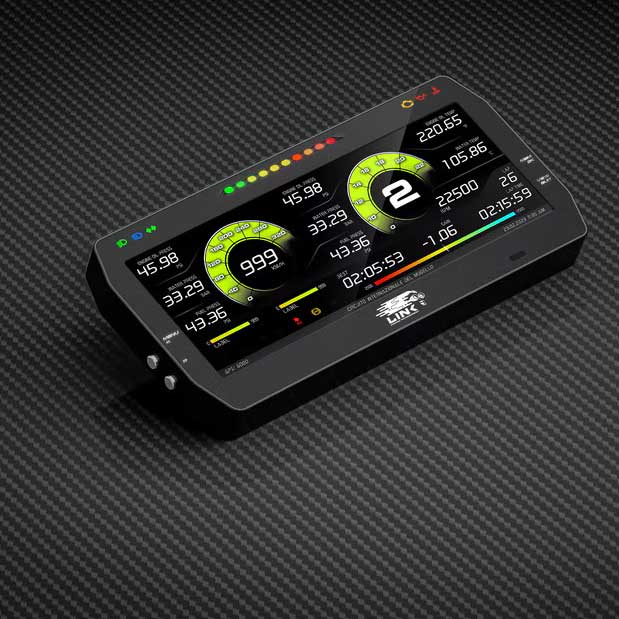

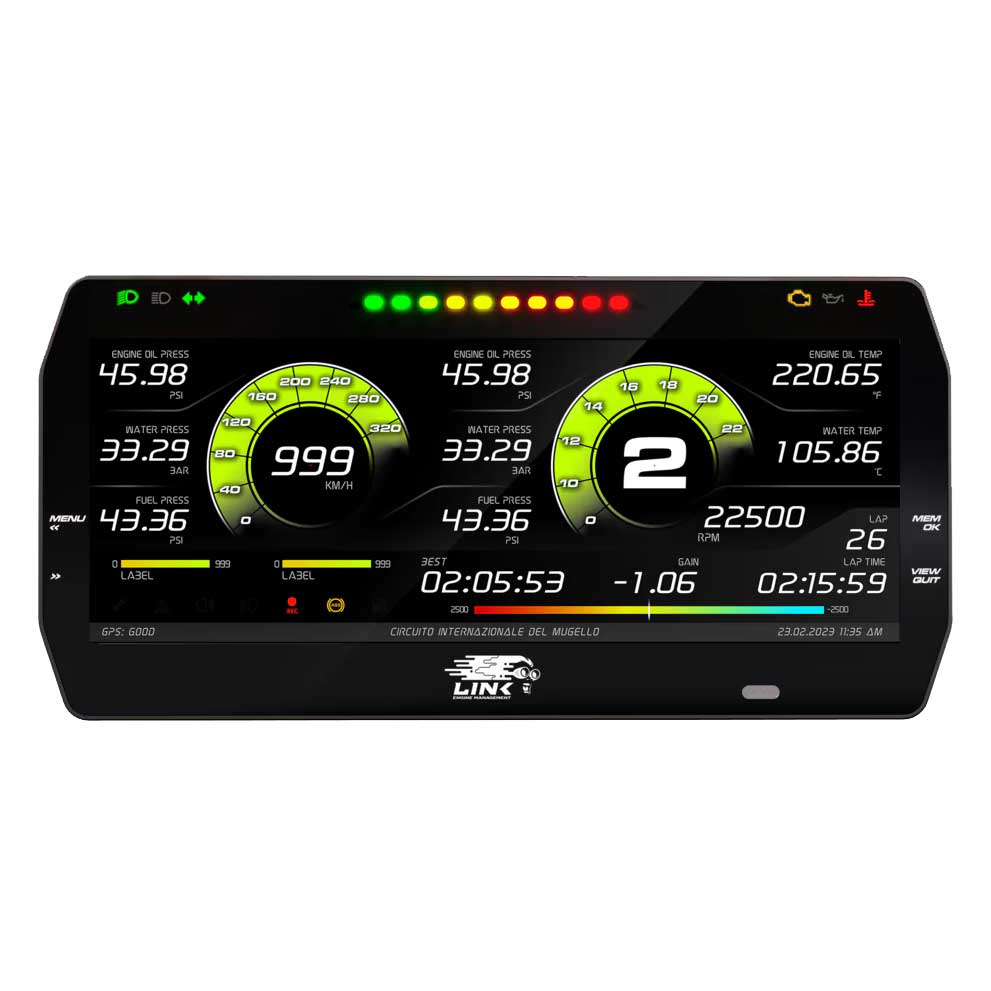

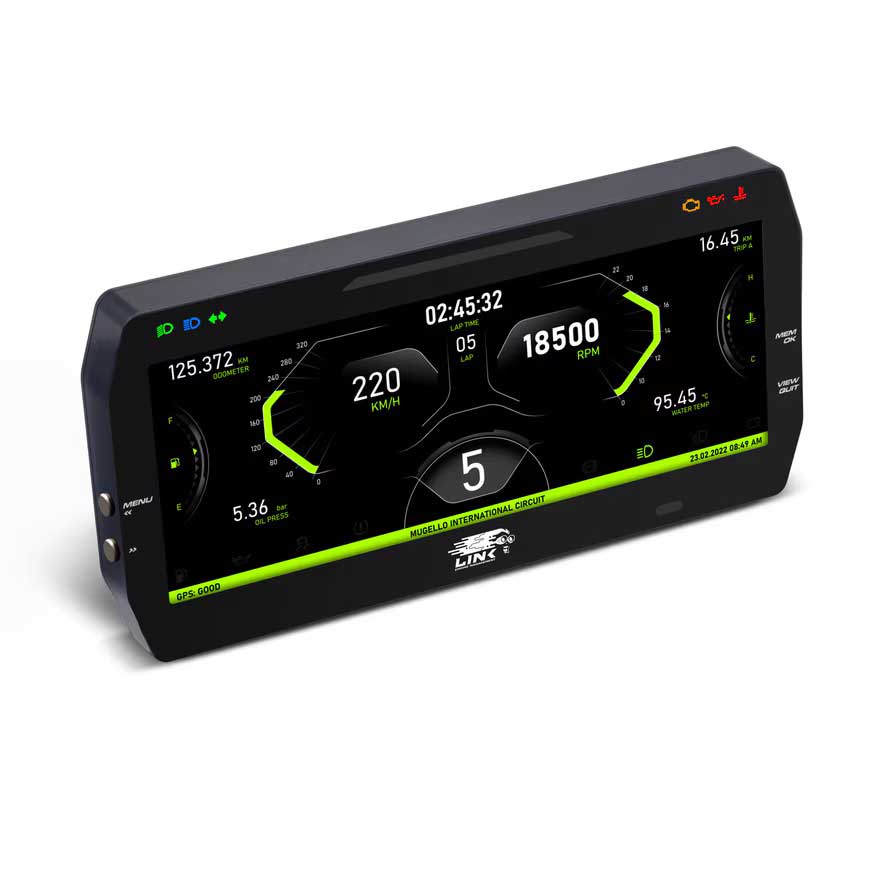

Link ECU AiM MXT Strada 10-inch Digital Dash Display - Street Edition

$2,970.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

The Link ECU AiM MXT Strada 10-inch Digital Dash Display - Street Edition is designed for those who want a high-quality, legal road-use display.

Featuring a vibrant 10-inch TFT screen, this dash delivers essential real-time data from Link G4+/G4X/G5 ECUs. It includes ten programmable RGB shift lights and street indicators to enhance your driving experience.

The Strada edition is distinct from the Race edition, focusing on street use while still providing top-notch performance. It is also available in smaller 5-inch and 7-inch variants.

Experience optimal readability at all times thanks to an integrated ambient light sensor that automatically adjusts the display brightness. With user-friendly side buttons, you can easily switch between various preset styles and layouts.

Customize shift lights according to your preferences, marking specific RPM thresholds for each gear. Street icons, such as turn signals and fuel warnings, keep you informed while driving.

Connecting the dash to your Link ECU is straightforward, using the included pin kit and wiring. Personalisation is further enhanced with Link’s PCLink and Aim Technologies Race Studio 3 software, both of which are free to download.

Features and Benefits

  • High-contrast 10-inch TFT display for optimal visibility.
  • Ten RGB shift lights to customise RPM thresholds.
  • Easy navigation with side buttons for preset display styles.
  • Real-time data display for critical metrics like RPM and speed.
  • Ambient light sensor for automatic brightness adjustment.

Technical Specifications

  • Display: 10-inch TFT
  • Resolution: 1280x480 pixels
  • Brightness: 700 cd/m² - 1,100 Lumen
  • Power consumption: 0.4 A
  • Dimensions: 27.8 x 13.5 x 4.3 cm
  • Weight: 1.2 kg
  • Waterproof rating: IP65

Included Components

  • Link MXT Strada 10-inch Dash
  • USB cable
  • 14 pin standard wiring
  • 23 pin connector + contacts

Fitment Table
