$1,479.50
Unit price /
Unavailable
Bidit helps you and Pro Speed Racing agree on a price. You set the price and Pro Speed Racing checks if they can accept your offer. You aren't competing with anyone else.

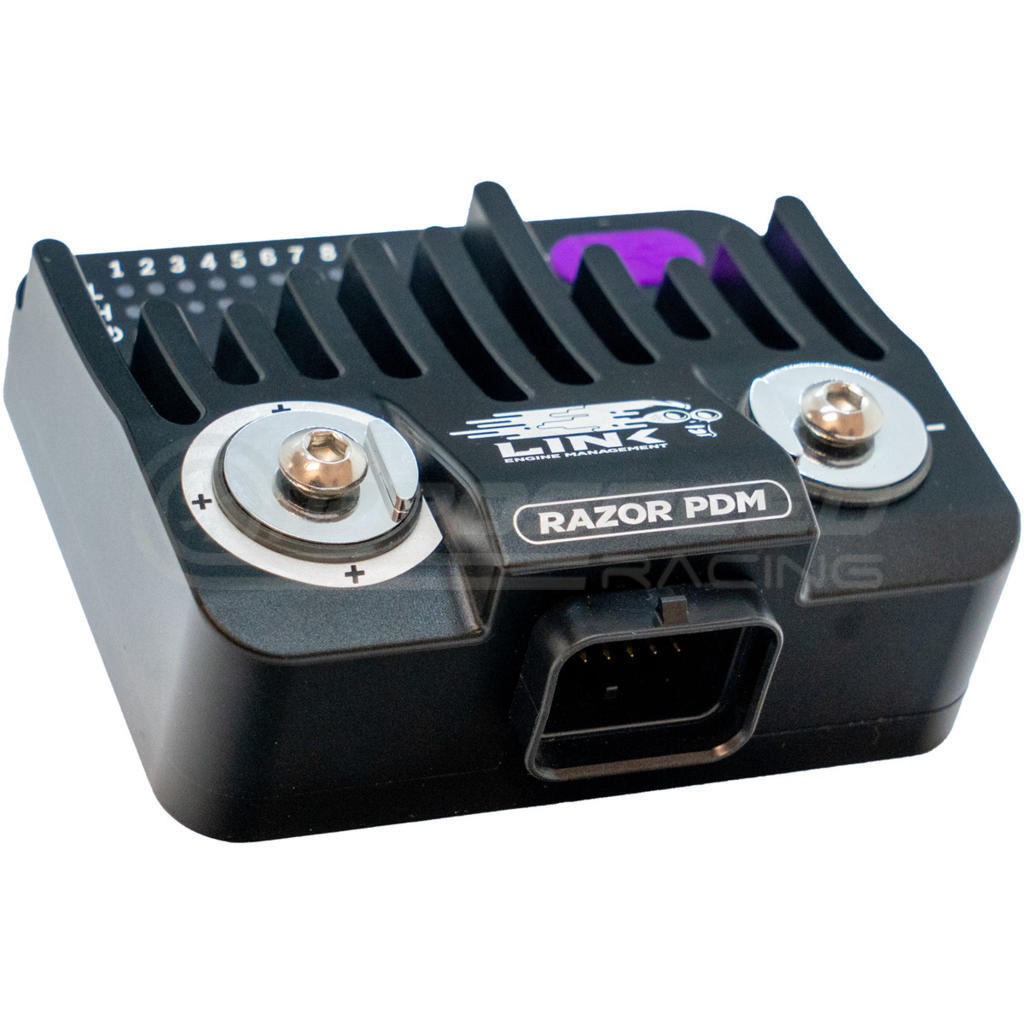

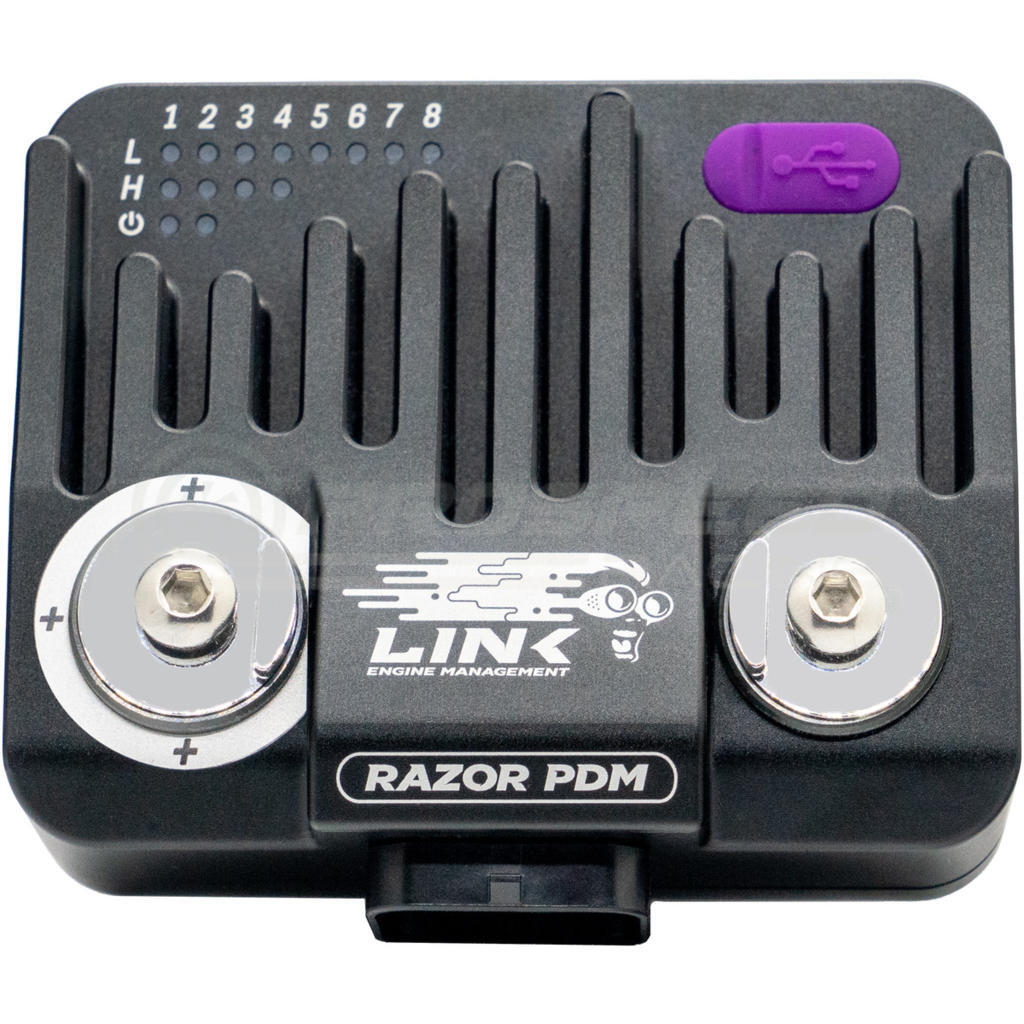

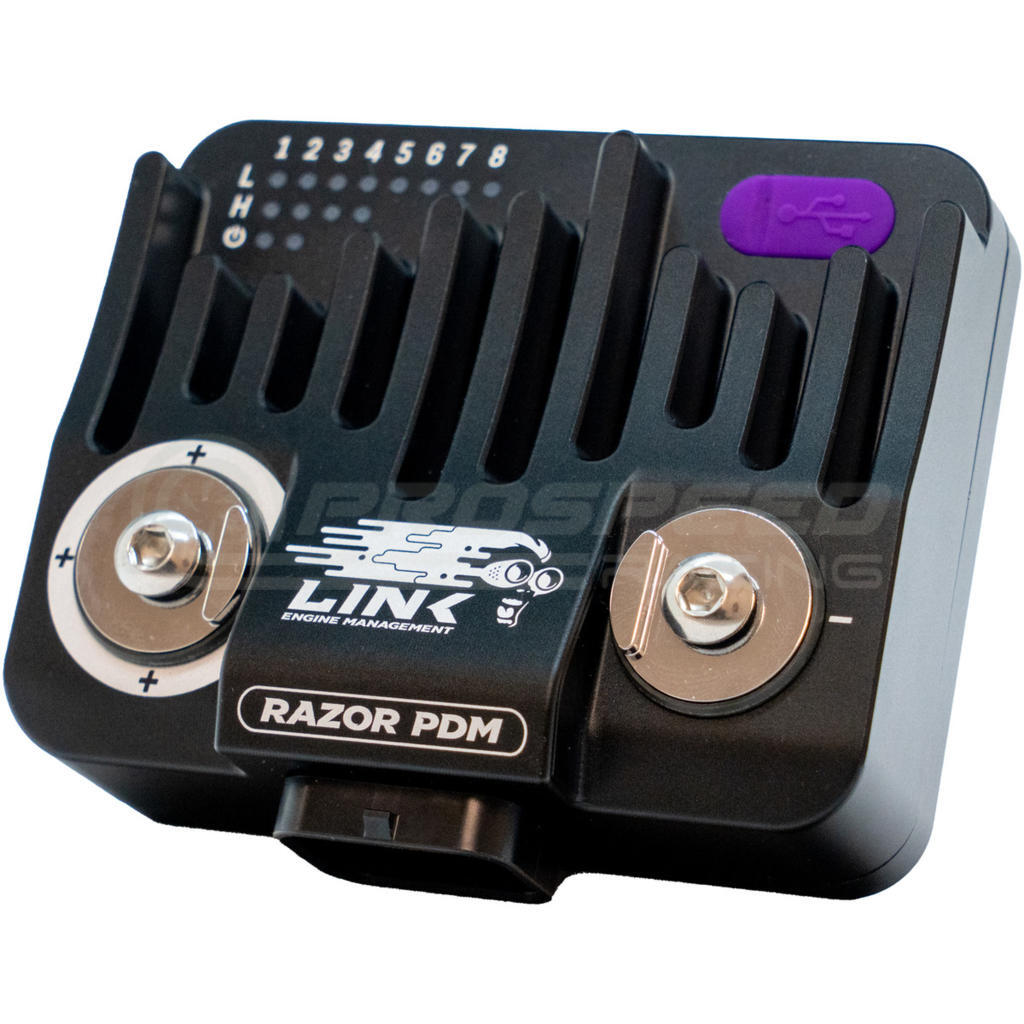

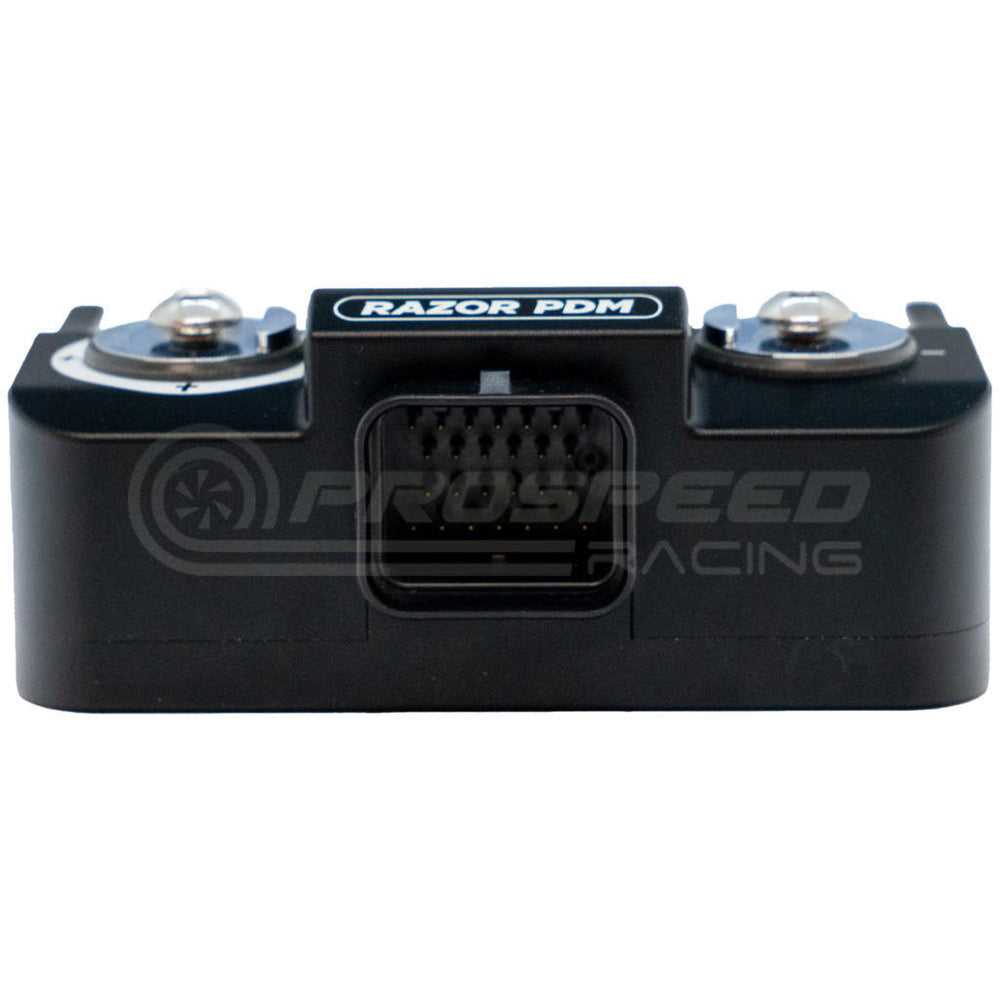

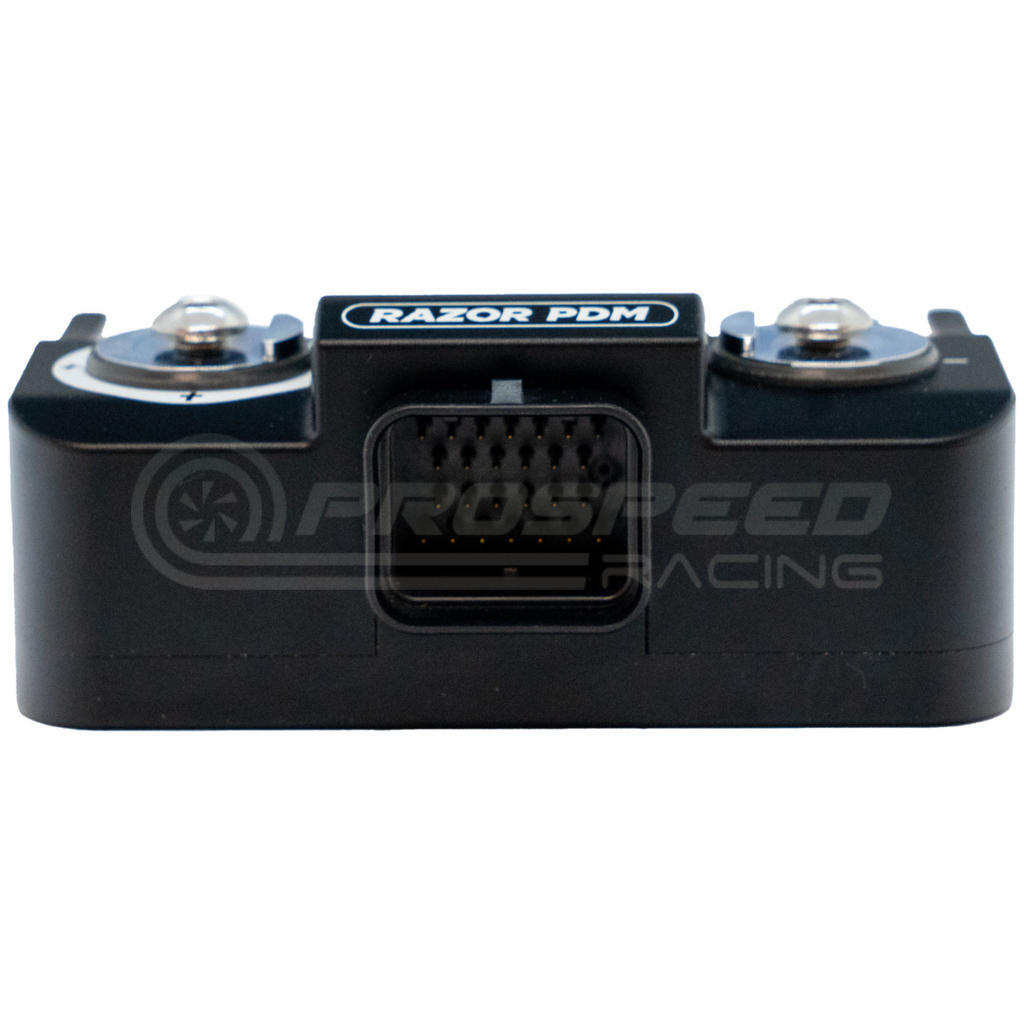

Link's highly anticipated PDM, the Razor PDM, is an intelligent Power Distribution Module that replaces traditional fuses and relays, putting you in complete control of your setup.
The Razor PDM is a programmable device that uses logic for the smart control of any outputs you have connected, meaning events and commands can be triggered when your vehicle hits specific parameters. The device will allow you to manage things such as fuel pumps, radiator fans, electronic throttles, servos, lights and more, as well as monitoring analog or digital sensor signals.
You can gain full control by using an Analog Switch Panel, CAN Keypad or ECU to switch output channels, as well as increasing reliability and protecting your critical components from damage. With superior thermal performance, the Razor PDM has been designed with vehicle protection in mind, while allowing for a more efficient, cleaner, and reliable build.
It may be small and compact, but the Razor PDM can handle up to 100 Amps of continuous combined current, as well as 160A of non-repetitive maximum current. If you need to manage even more power, you can easily add multiple Razor PDM’s via CAN or use as a CAN Expander to increase your inputs and outputs. The Razor PDM has the ability to connect with many other ECU brands and CAN devices when using a custom CAN stream. Those of you with a Link ECU will be pleased to know that our software comes with a pre-configured stream, so your Link products will work with the device straight out of the box.
Features and Benefits
Can be used in conjunction with a Link ECU or as a completely standalone device
4 high power outputs capable of 25A continuous, PWM, high side drive, low side drive, or paired for H-bridge actuator motor control
8 Universal A/D I/O pins, capable of 8A output each or as analog or digital inputs. Software controlled pull-ups and adjustable switching thresholds when used as inputs
Over-Current and Short Circuit Protection, with configurable trip and resettable fuse parameters
Flexible and powerful control strategies including internal general purpose PID control, math functions, logic expressions and CAN keypad functions
CAN keypad integration and flexible button logic, buttons can control PDM or Link ECU functions (G4X or G4+ with some limitations)
Logging support via CAN or USB
Multiple PDM support - Add additional units and simply connect via CAN
USB Configuration via PDM Link software (Windows only)
Step 1: Choose message placement
Click the button below and then hover over your page to select a placement.
Step 2: Paste and save
You have copied the placement for the Product Page.
Go back to the App Embeds section, and in the Paypal Advanced Settings, paste the copied value into the
Product Page field and click the 'Save' button in the top right corner.
| SKU:
135-1000
