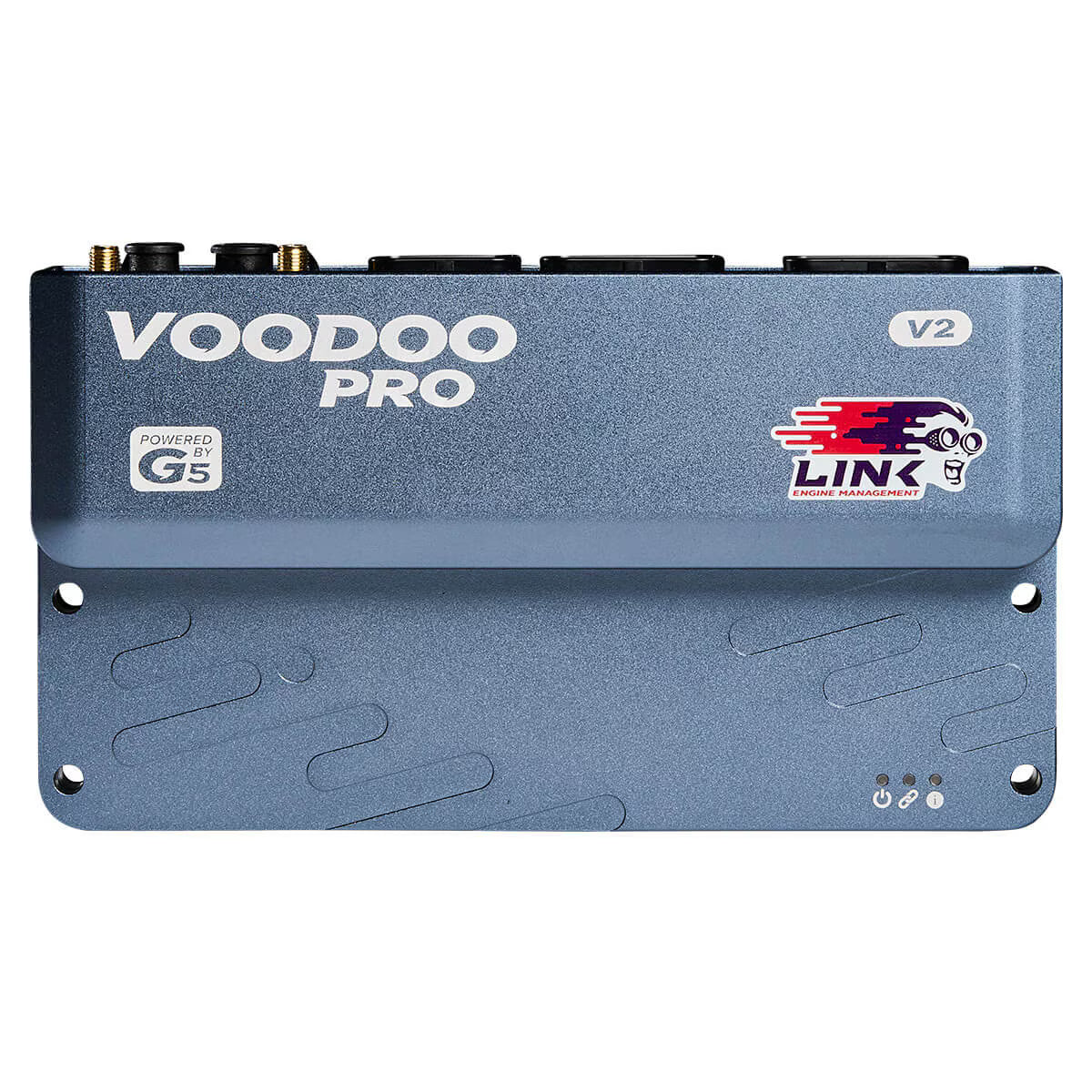

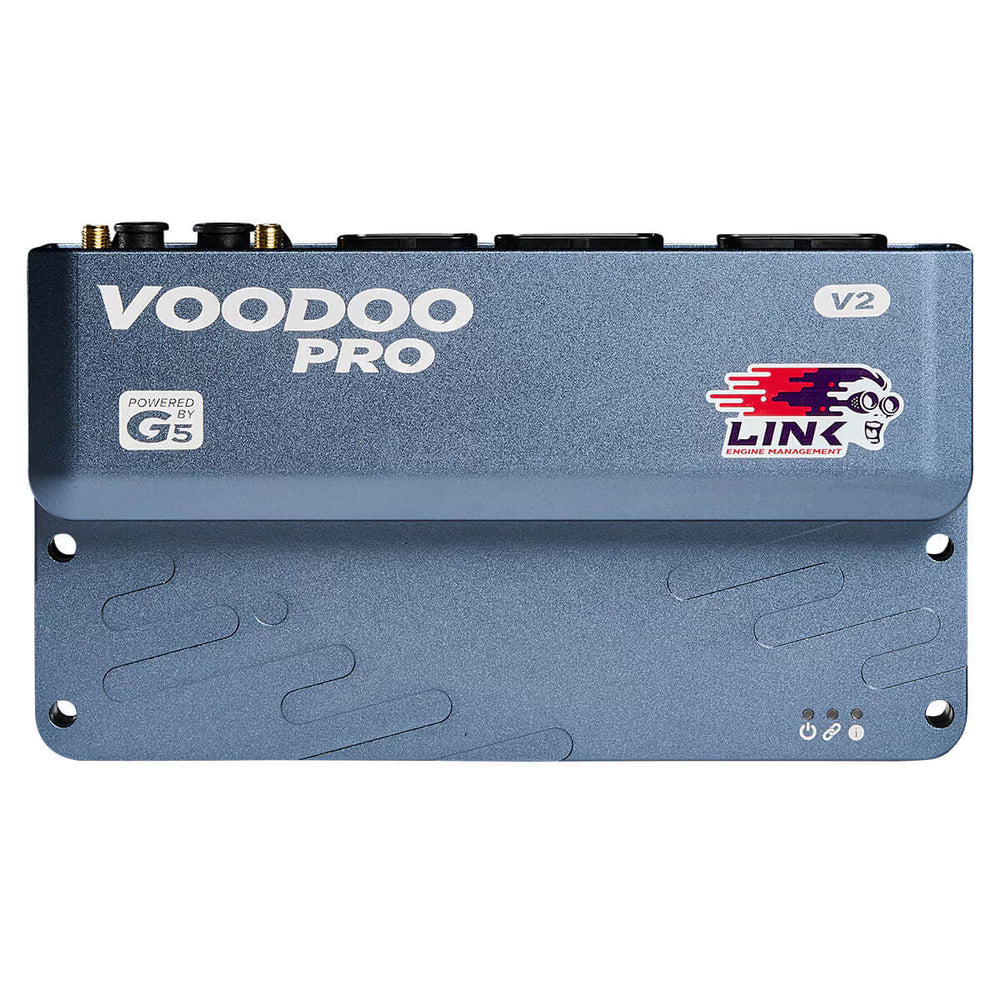

Link G5 Voodoo Pro V2 Wire In ECU

$5,164.50
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Introducing the Link G5 Voodoo Pro V2 Wire In ECU, an advanced upgrade that enhances the capabilities of its predecessor. This state-of-the-art ECU offers unparalleled control, supporting sequential injection and direct spark for up to 12 cylinders, or advanced staged injection for 8 cylinders.

The G5 Voodoo Pro V2, based on the innovative G5 Voodoo Neo architecture, is designed for the modern automotive enthusiast. It incorporates myriad enhancements such as improved injector and ignition drives, dual e-throttle, and robust communications features including GPS and Wi-Fi connectivity.

Revolutionary hardware improvements include a high-speed communications module with Ethernet support and dual wideband capability. With 1GB of onboard data logging, the G5 Voodoo Pro ensures that every moment of your drive is captured.

Features and Benefits

  • Supports up to 12 injector drives and 8 ignition drives.
  • Dual onboard H-Bridges for E-Throttle and E-Wastegates.

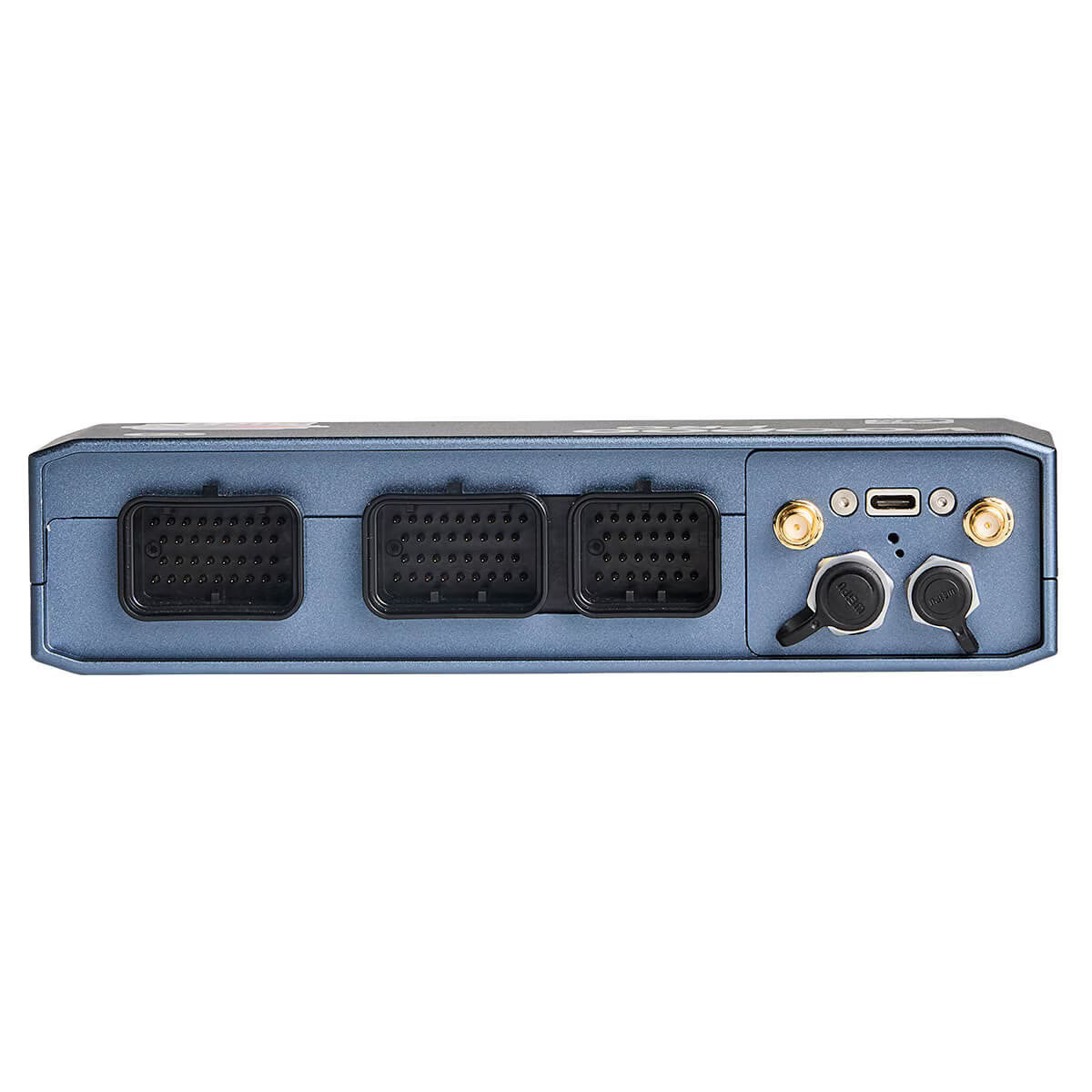

  • Built-in Wi-Fi and Ethernet for seamless connectivity.
  • 1GB of onboard data logging memory for comprehensive tracking.
  • Highly customisable IO with eight ADIO pins.
  • Direct Injection control available for maximum efficiency.

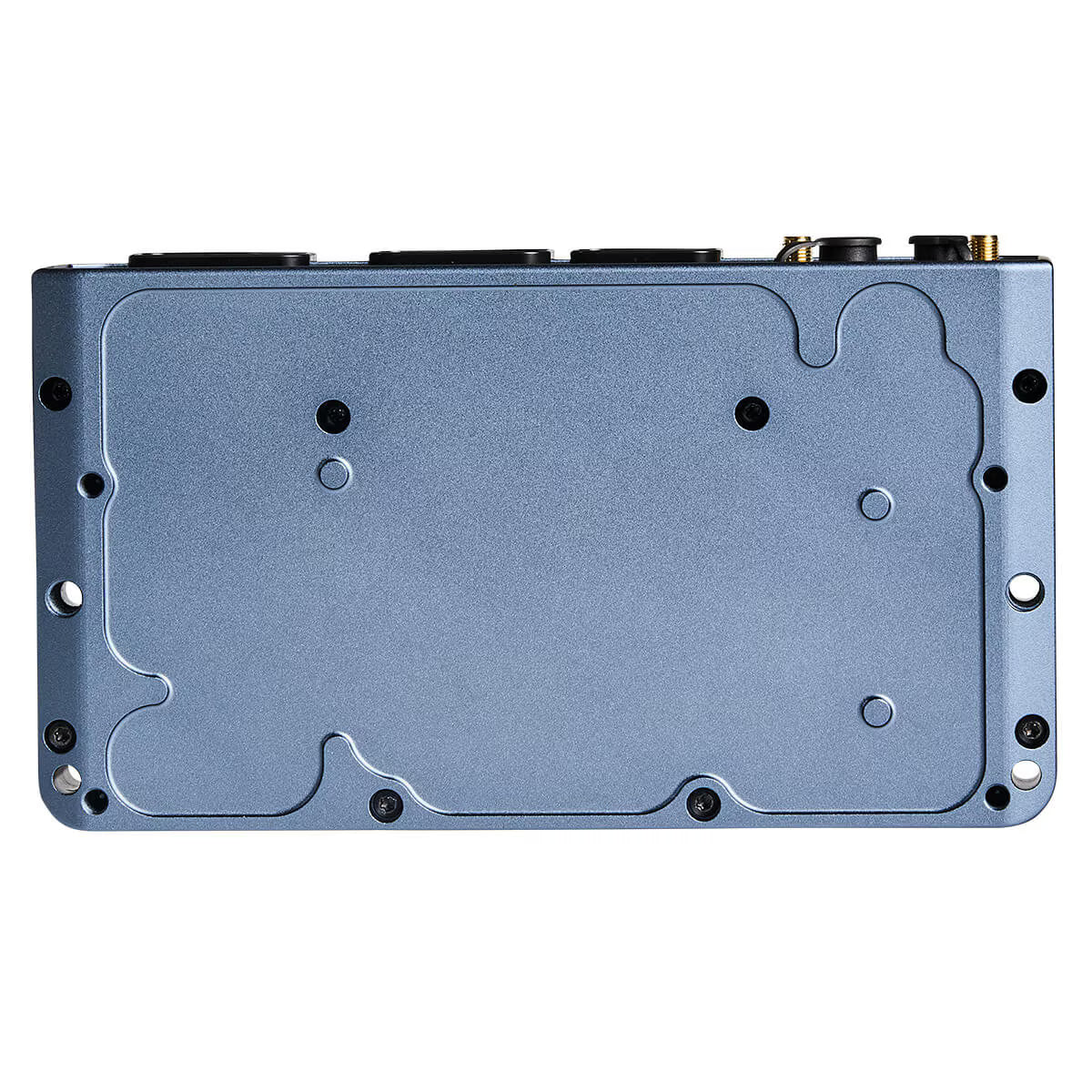

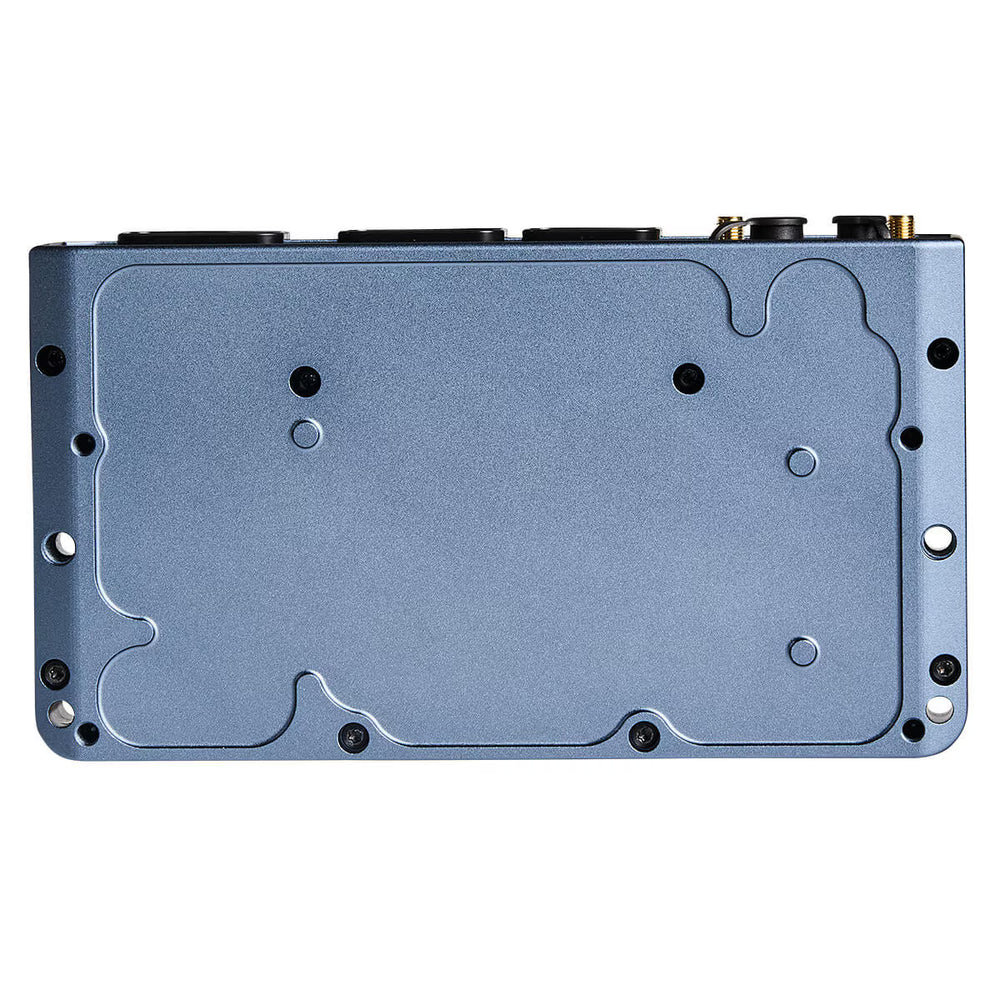

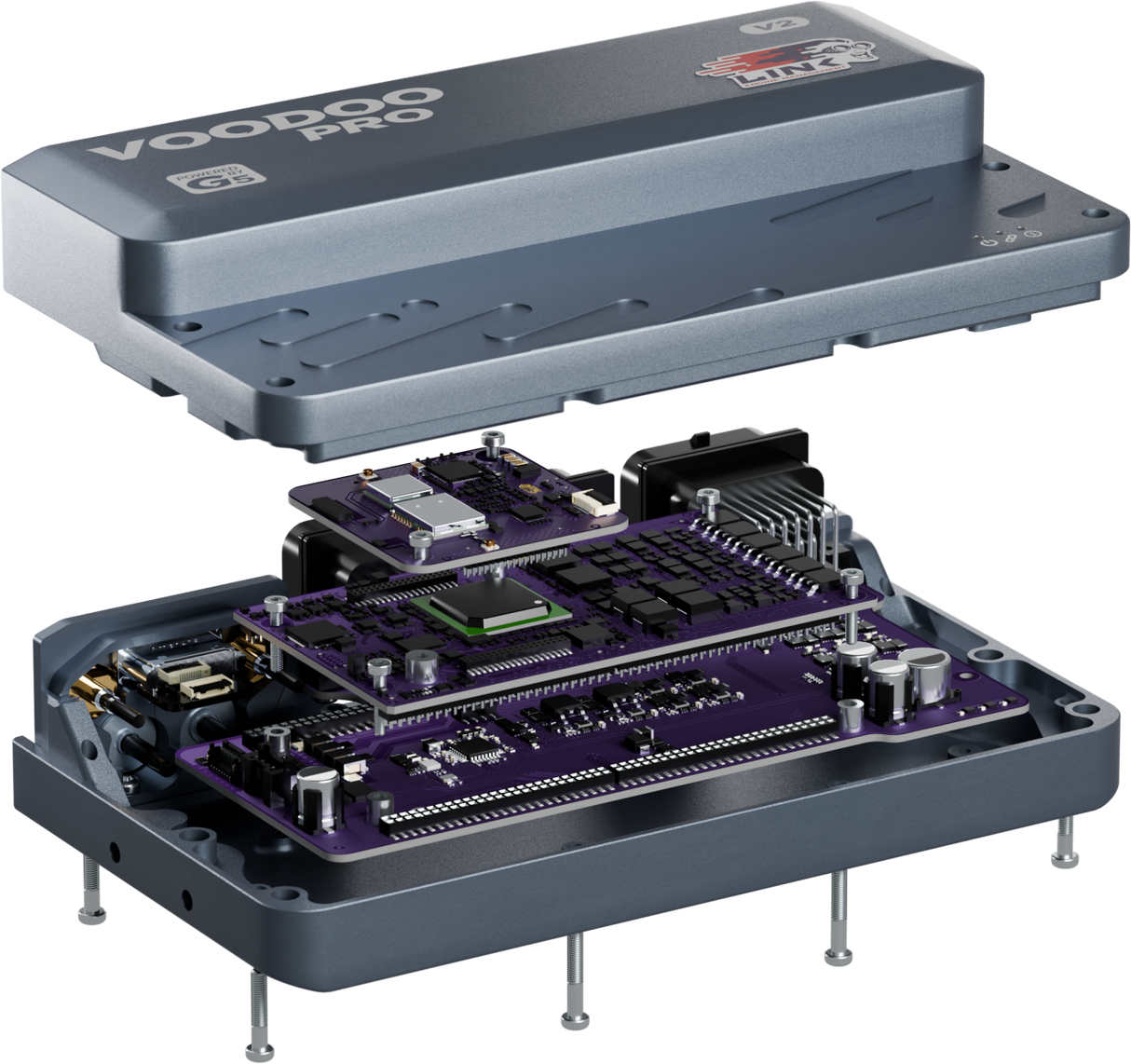

  • CNC case with a sealed enclosure for durability.

Technical Specifications

  • Depth: 10.9 cm
  • Width: 19.4 cm
  • Max height: 4.5 cm
  • Weight: 0.8 kg

Included Components

  • G5 Voodoo Pro ECU

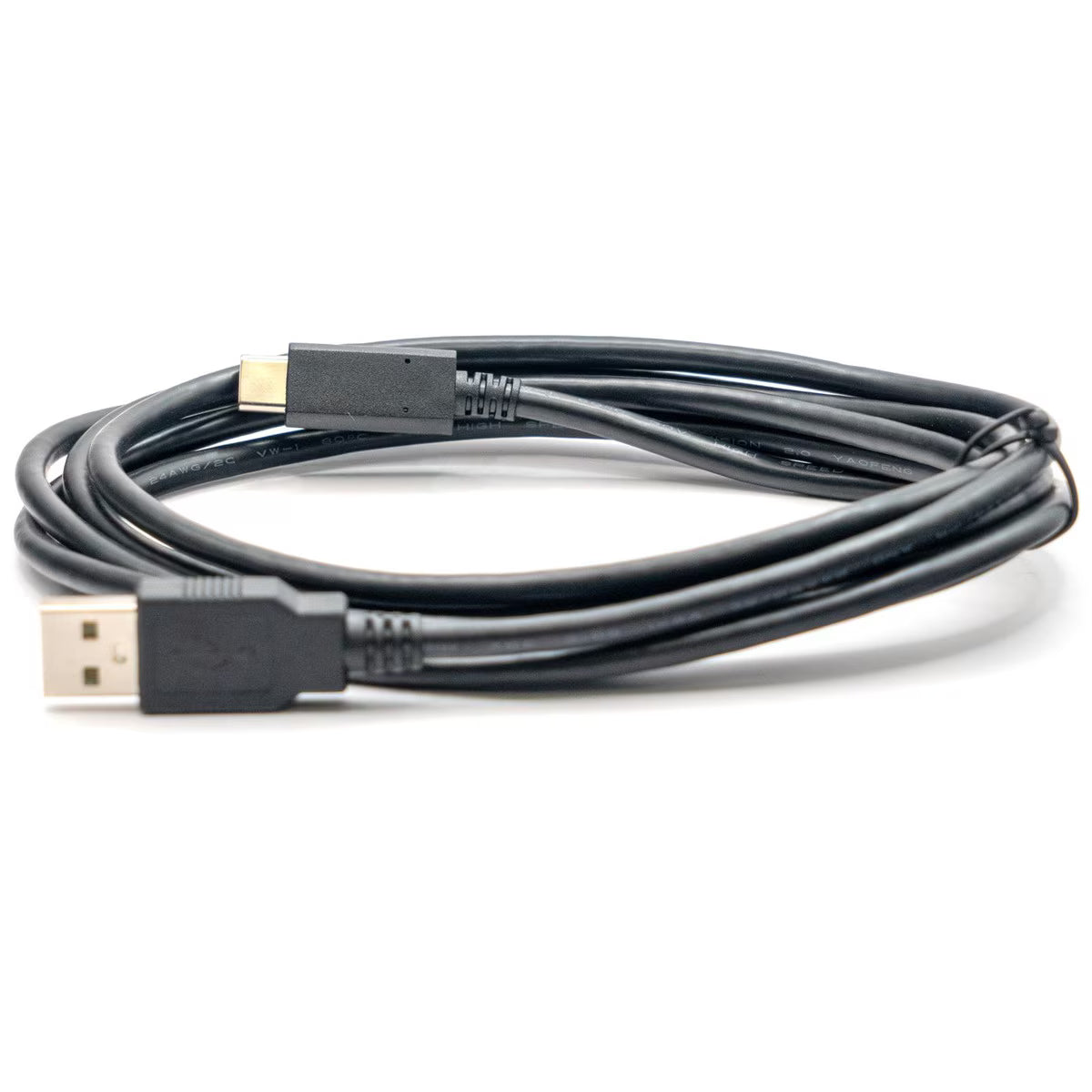

  • USB-C Connection Cable

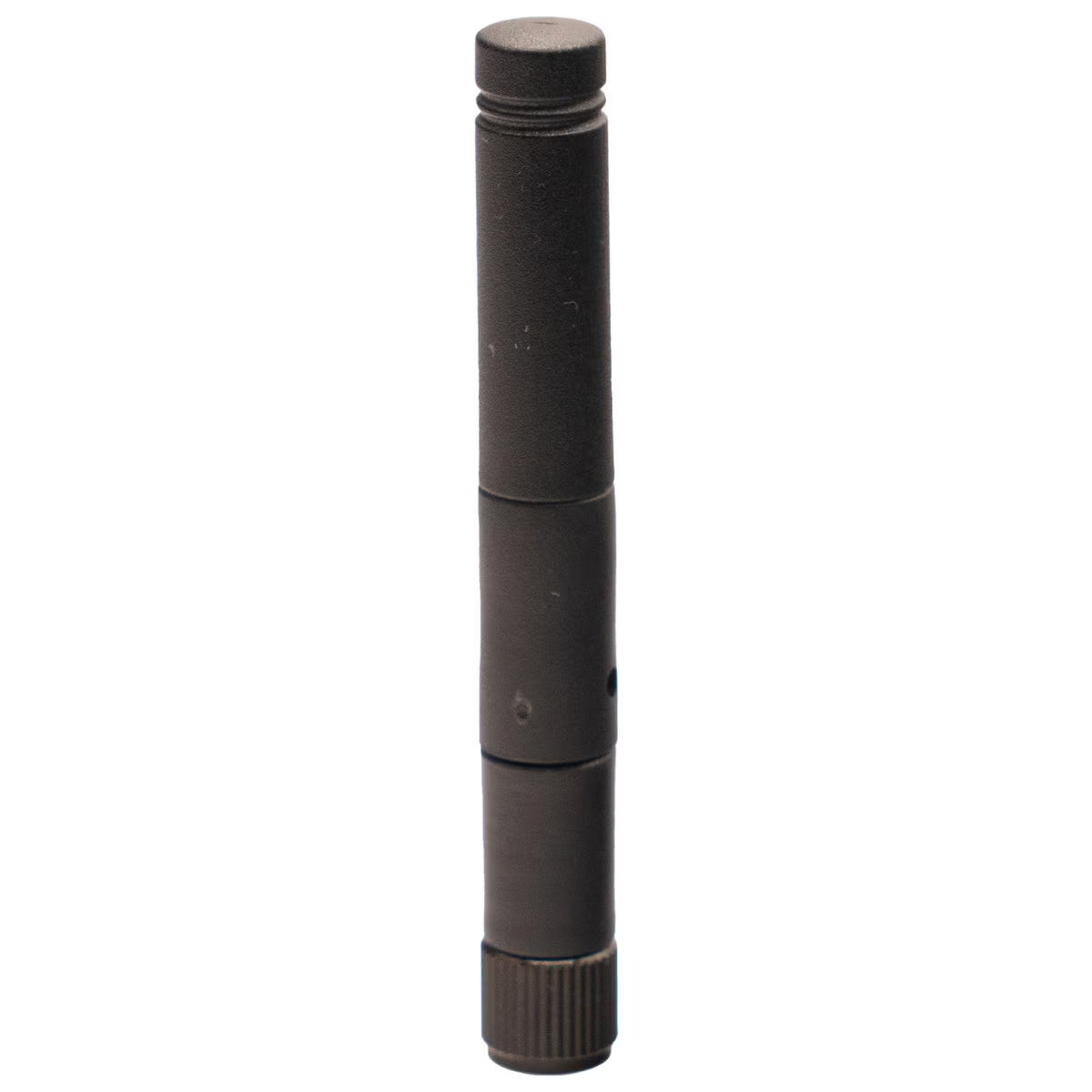

  • Wi-Fi Antenna

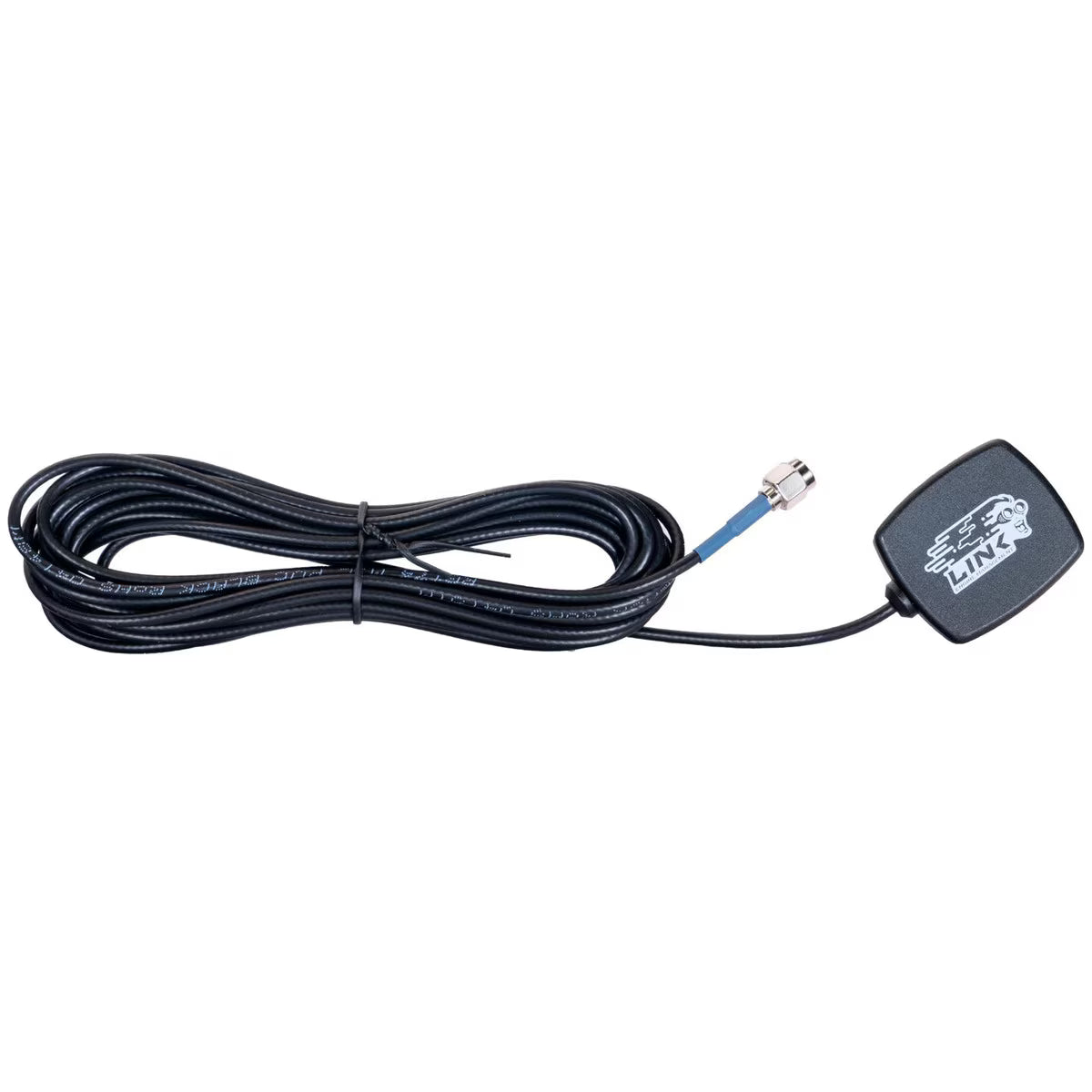

  • 4m GPS Antenna (Magnetic or Adhesive Mount)
  • USB-C and SMA Dust Covers
  • QuickStart Guide (A5)
  • Installer I/O table (A3)
  • Mounting Screws
  • Link stickers
