Note: Battery posts, Aluminium mounting brackets and OEM fittings are sold separately.

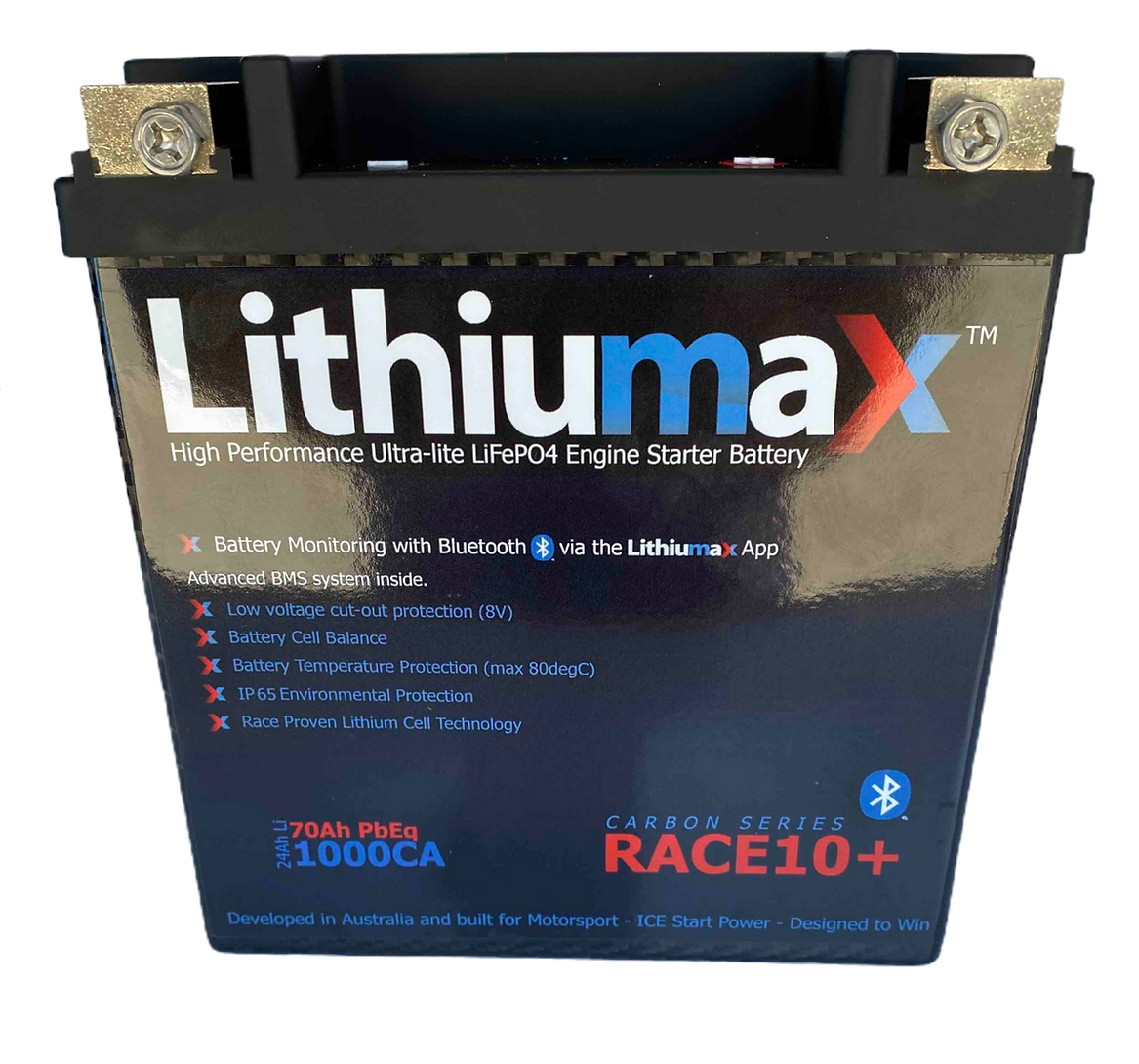

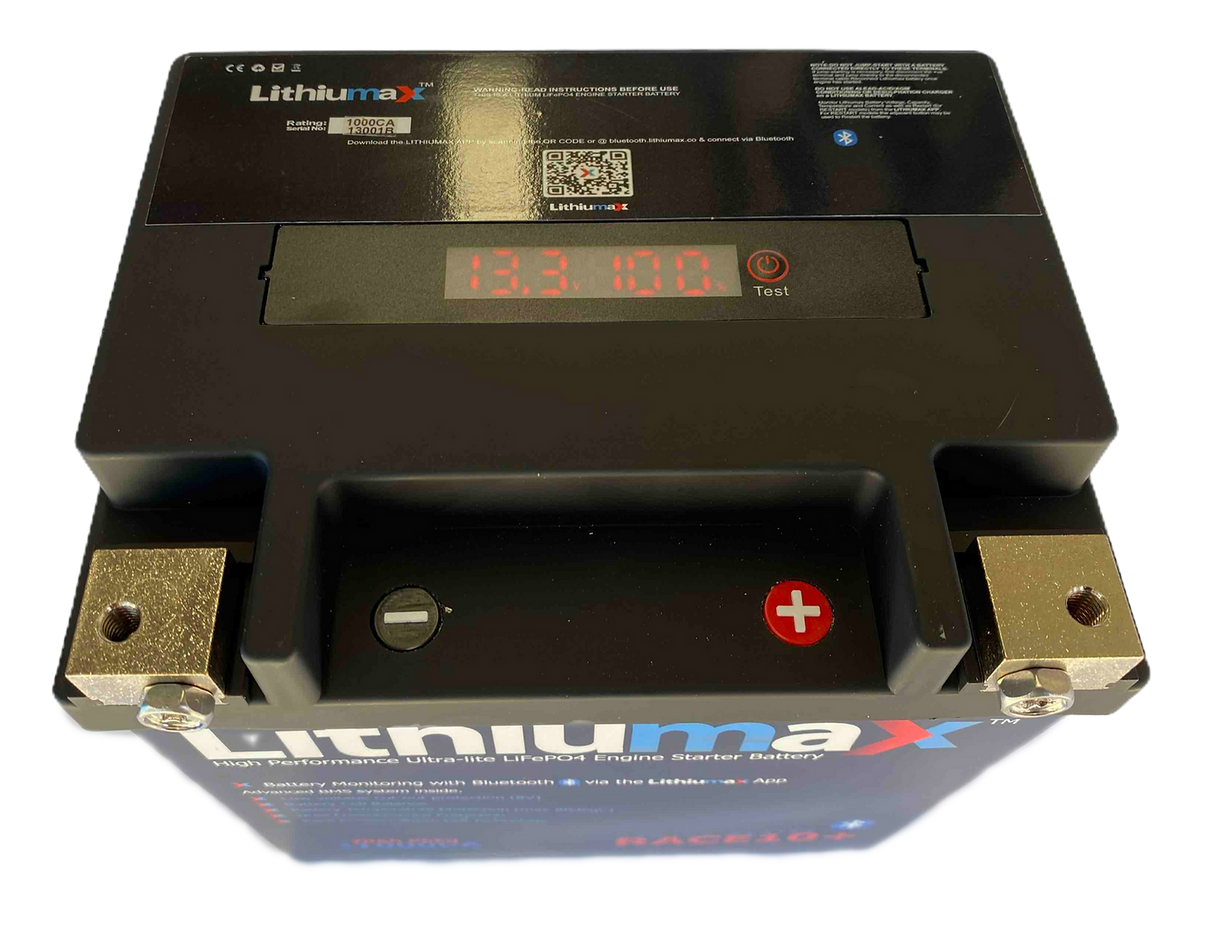

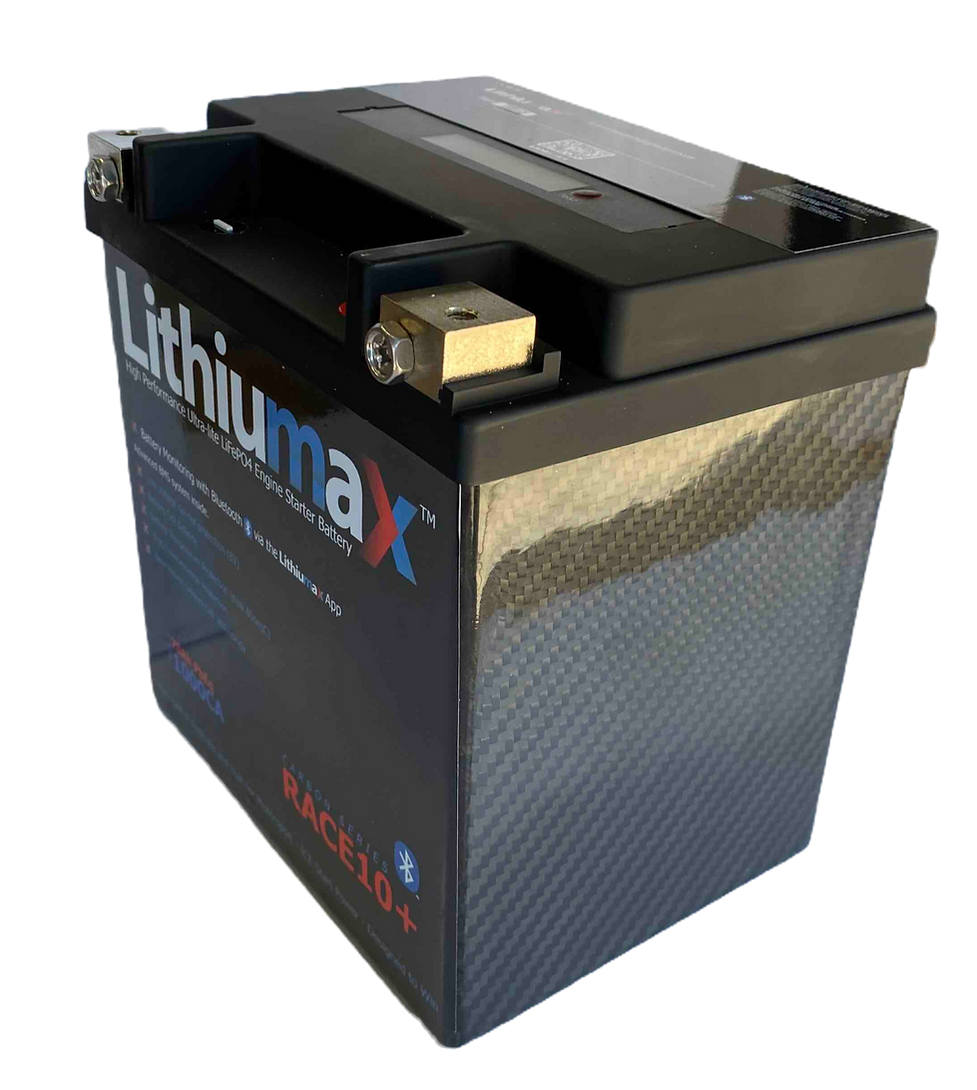

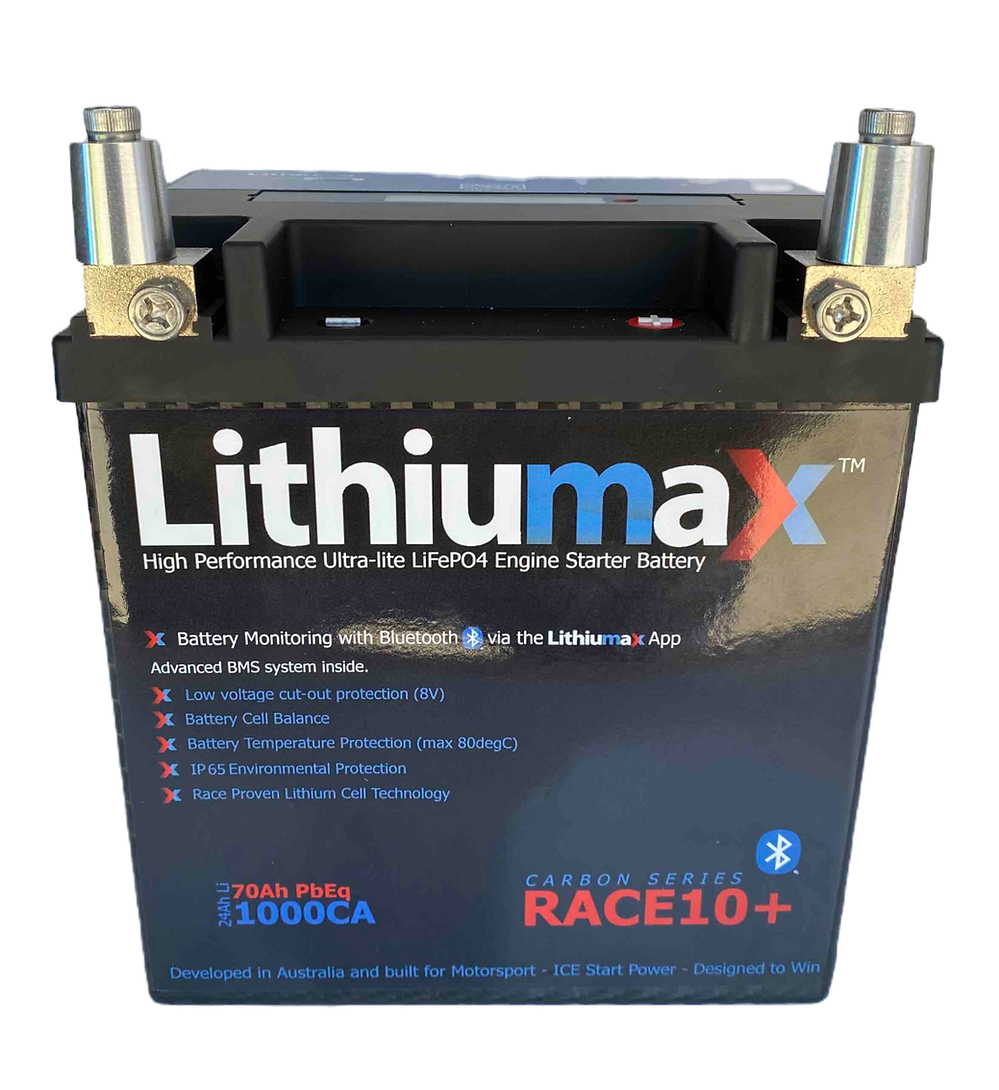

The Lithiumax Carbon Series RACE10+ Bluetooth Engine Starter Battery. Autosport International Award Winning Lithiumax battery series. Weighing just 3.5kg, the RACE10+ Carbon Series 1000CA Lithiumax LiFePO4 Car Battery features an ADVANCED Patented Battery Management System (1400A pulse discharge for 3 seconds) with Bluetooth Monitoring.

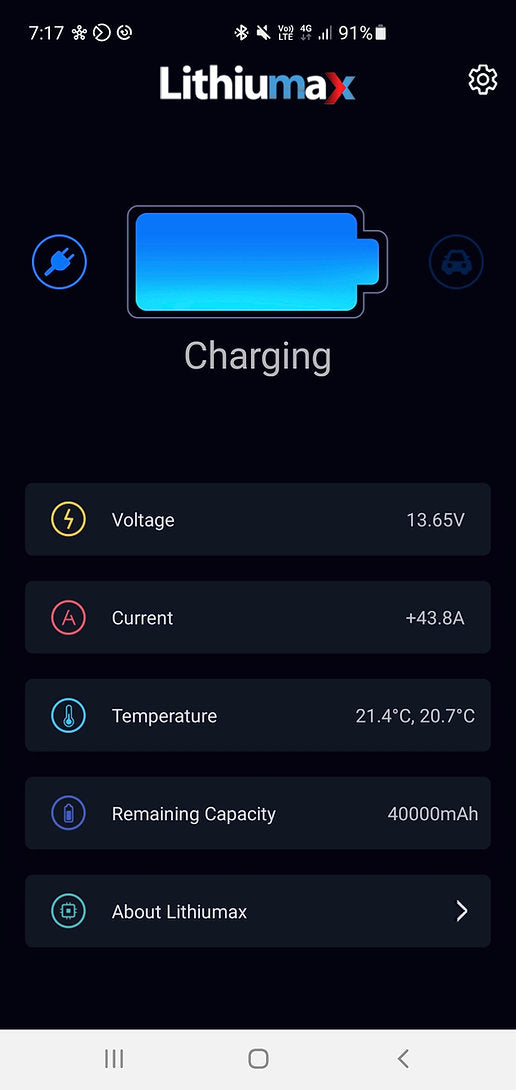

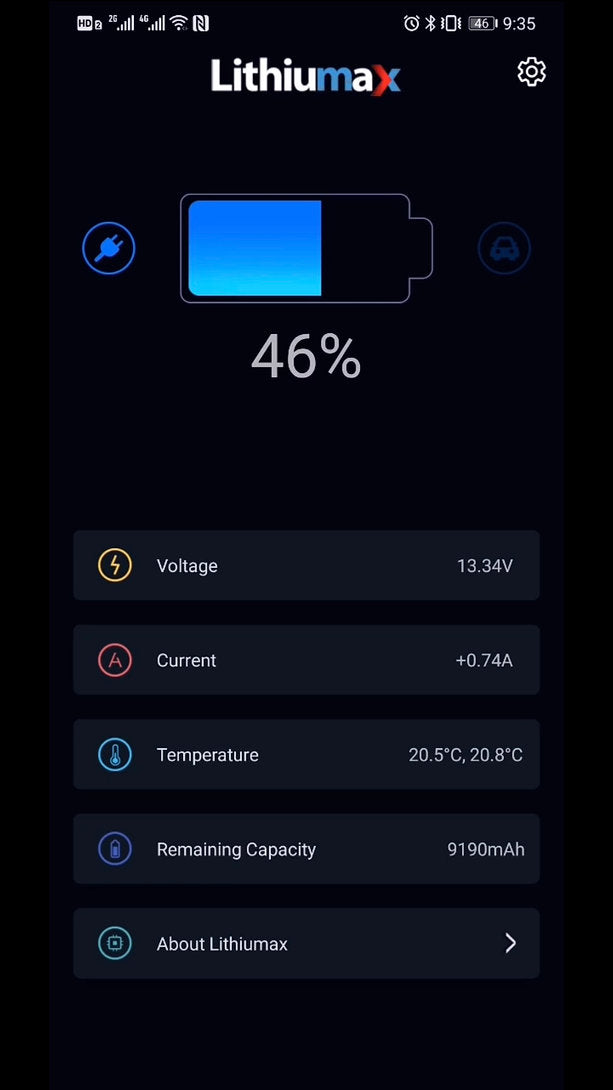

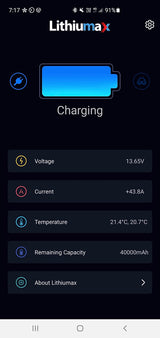

Can be fitted in any orientation including upside down. Lithiumax High Performance Replacement Batteries – LiFePO4 (Lithium Ferrous Phosphate) is significantly superior and safer than the older Lithium-Ion battery technology. Includes in-built Bluetooth monitoring that displays voltage, current draw, battery temperature, and remaining capacity via the Lithiumax App, with advanced BMS-controlled safety built in.
Energy storage in Lithiumax batteries has advanced to the point of being very safe, ultra-lightweight, and able to last up to 4 times longer than a lead-acid or AGM/GEL battery.
Market leading 70Ah PbEq lead-acid/AGM/GEL equivalent capacity (24Ah Li Nominal). RC rating of 140mins at 25 °C – suits 4, 5, 6, 8, 10 and 12 cylinder engine cars, 4WD and boats up to 9L displacement.
Replaces your standard Lead-Acid or AGM/GEL battery at only 20% of the weight and charges using your vehicle, boat, powersports, light aircraft or motorcycle's standard alternator up to 200A, or up to 100A using a stand-alone AC/DC or DC/DC charger.
Lithiumax batteries were designed in Australia specifically for race and road cars, SUVs, 4WDs, boats, powersports, and aircraft from the ground up. Compare our Ah ratings with the others. Suits all modern Stop-Start systems. With stable lithium LiFePO4 chemistry technology and industry-leading Ah capacity ratings, Lithiumax is all about endurance, performance, and long service life.
Includes on-board Battery Management System (BMS) to manage and protect your battery, along with in-built Bluetooth App monitoring for battery voltage, remaining capacity, current draw, and temperature. ADVANCED BMS technology includes a fixed hard-cut at 8V to protect your battery from over-discharge, giving you more time to charge.
Lithiumax's revolutionary RACE10+ battery is also protected from short-circuit, over-charge, over-discharge, and over-temperature. Direct drop-in replacement for lead-acid or AGM batteries for race and road cars, 4WDs, SUVs, powersports, light aircraft or boats including standard brass multi-angle terminal blocks with 6mm (M6) bolts.

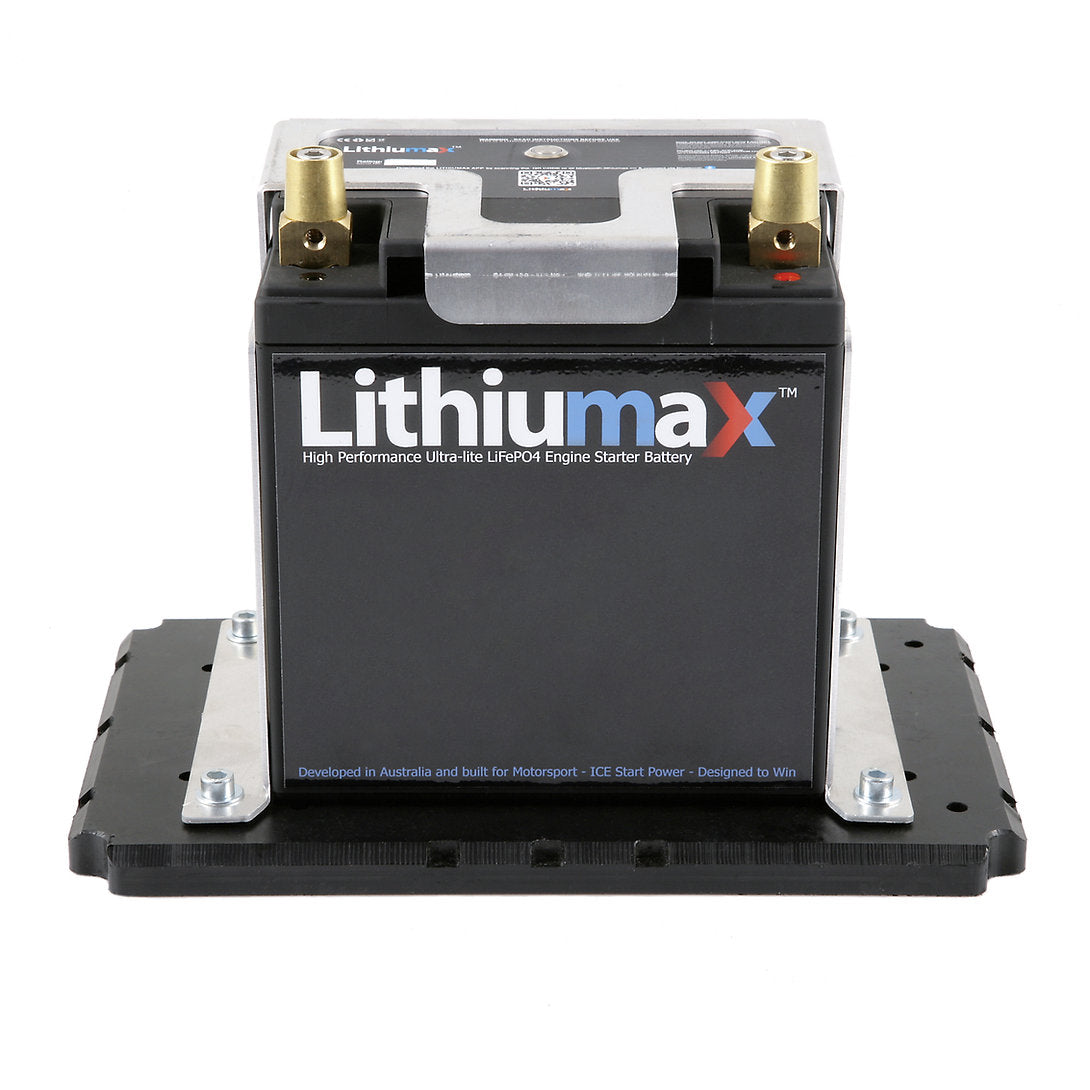

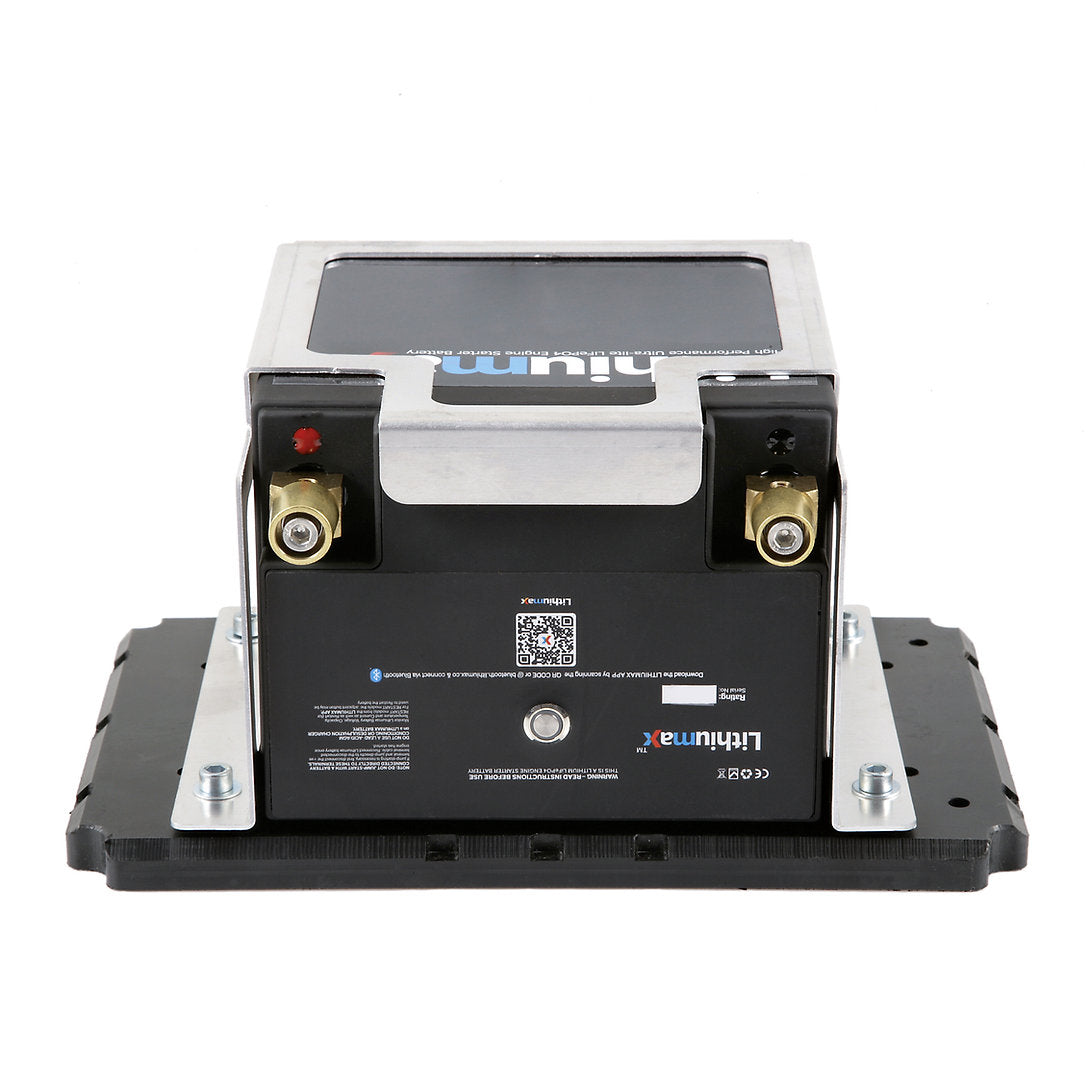

SAE type terminal posts also available. Aluminium race mounts as well as OEM fitting kits are also available in either flat or upright mount form. Please note that if you choose the OEM mounting kit, no other items are required as this includes the aluminium mount, base plate, and SAE terminals.
Approved for use under: FIA Annex J 2020 – DMSB – Motorsport Australia – Motorsport UK
$25 cashback when you submit and we use your install & vehicle/boat/bike/powersports or aircraft images. Email admin@lithiumax.com.au for details.
Lithiumax RACE10+ Carbon Series Bluetooth batteries carry a 2 YEAR WARRANTY. Extendable to 5 Years – see Warranty Extension options.
Features and Benefits
Features and Benefits
- ADVANCED BMS safety technology
- DEKRA tested and UN38.3 Approved
- Autosport International Award Winning Technology
- Bluetooth Battery App Monitoring
- Dry cell, no acid, no gassing
- Water/Dust proof to IP65 Environmental standards
- Shockproof
- Direct drop-in replacement compatible with all 12V–15V charging systems and alternators
- Battery Monitoring BMS System onboard – manages input and output current, charge, cell balance, and temperature
- Flat discharge curve – 2000+ discharge cycles vs 500 for lead-acid or AGM/GEL
- Higher average voltage – much more linear power than Lead-Acid or AGM/GEL
- Safe, non-volatile
- Environmentally friendly, organic compounds
- 5 – 10 year usable life span
- Replaces lead/AGM/GEL at only 20% of the weight
- Quicker starting with a full 1 volt higher than lead/AGM/GEL and less voltage drop during cranking
- Improved engine management & data logging performance with more stable voltage
- Less horsepower loss from the alternator due to efficient charging – 4 times faster than lead-acid/AGM/GEL
- Note: Bluetooth batteries do have a drain due to the Bluetooth module's constant operation and will require periodic charging. The App will assist in assessing the frequency of maintenance charging required.
Technical Specifications
Technical Specifications
- RACE10+ 1000CA Lithium LiFePO4 Car/Bike/Boat & Aircraft Starter Battery
- 1400A pulse discharge (3–5 seconds)
- 70Ah EqPb lead-acid/AGM/GEL equivalent (26Ah Lithium Nominal)
- RC rating of 140 mins at 25 °C
- Battery Monitoring BMS System
- Bluetooth App Monitoring
- Dimensions: (W)165 x (H)175 x (D)125mm
Typical Vehicles:
- BMW 140i, 240i, 340i, 440i, 550i
- BMW E9x M3, M2, M4, M5, M6
- BMW E46 M3
- VW Golf (I to VII) GTI, Clubsport, R 2.0TFSI
- Seat Ibiza Leon Cupra 2.0 TFSI
- Audi TTS & TTRS, RS3 (all VAG 2.5TFSI)
- Audi RS4, RS5, RS6, RS7
- Renault Megane RS 2
- Mercedes A43 AMG, C63 AMG, AMG GTS & GTR
- Porsche 991: 993, 996, 997, 991, 992, GT3 (RS) & GT2 (RS)
- Porsche Boxter & Cayman 986, 987, 981, 718 (GT4)
- Nissan 350Z, 370Z, GT-R R32, R33, R34 Skyline / Silvia
- Caterham Super7 Seven 355 & 485
- Holden Commodore: All
- Ford Focus MK2 & MK3
- Ford Falcon: All
- Ford Mustang
- Ford GT / GT40
- Nissan GT-R R35
- Subaru WRX STI Impreza
- Toyota Supra 1JZ, 2JZ
- Mazda 3 MPS
- Mercedes W124, W201, E190, E300
- Mini Cooper S & Works R53, R54
- AC Cobra
- Chevrolet Camaro & Corvette (LS engines)
- Dodge Charger & Challenger
- Dodge Viper
- Honda NSX
- Jaguar F-Type
- Koenigsegg CCR, CCX, Agera
- Lamborghini Gallardo, Huracan & Aventador
- Lexus IS (F), ES, LS, RC, SC
- Mosler MT900
- Ferrari: All
- Pagani Zonda
