 |  SKU: 14016-4

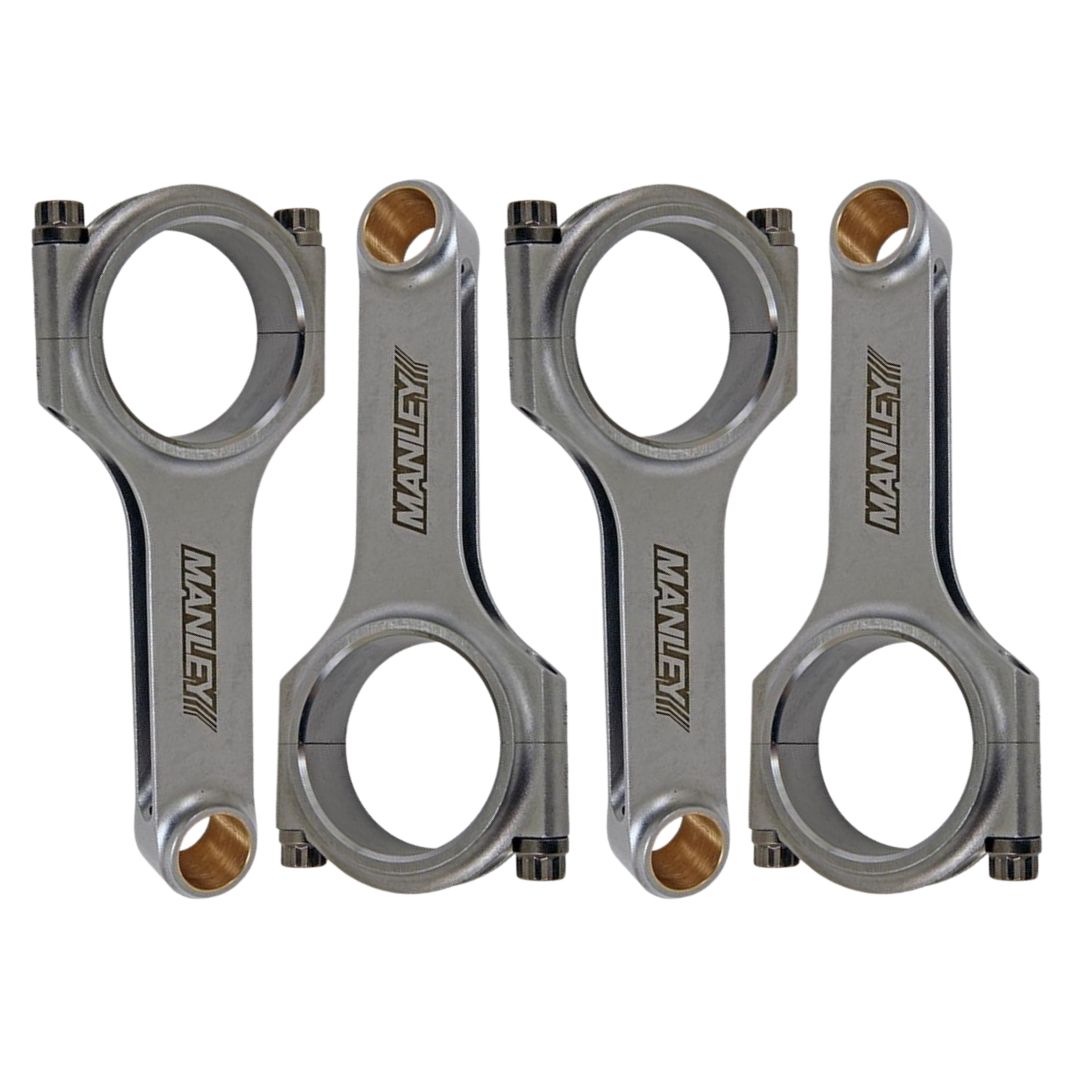

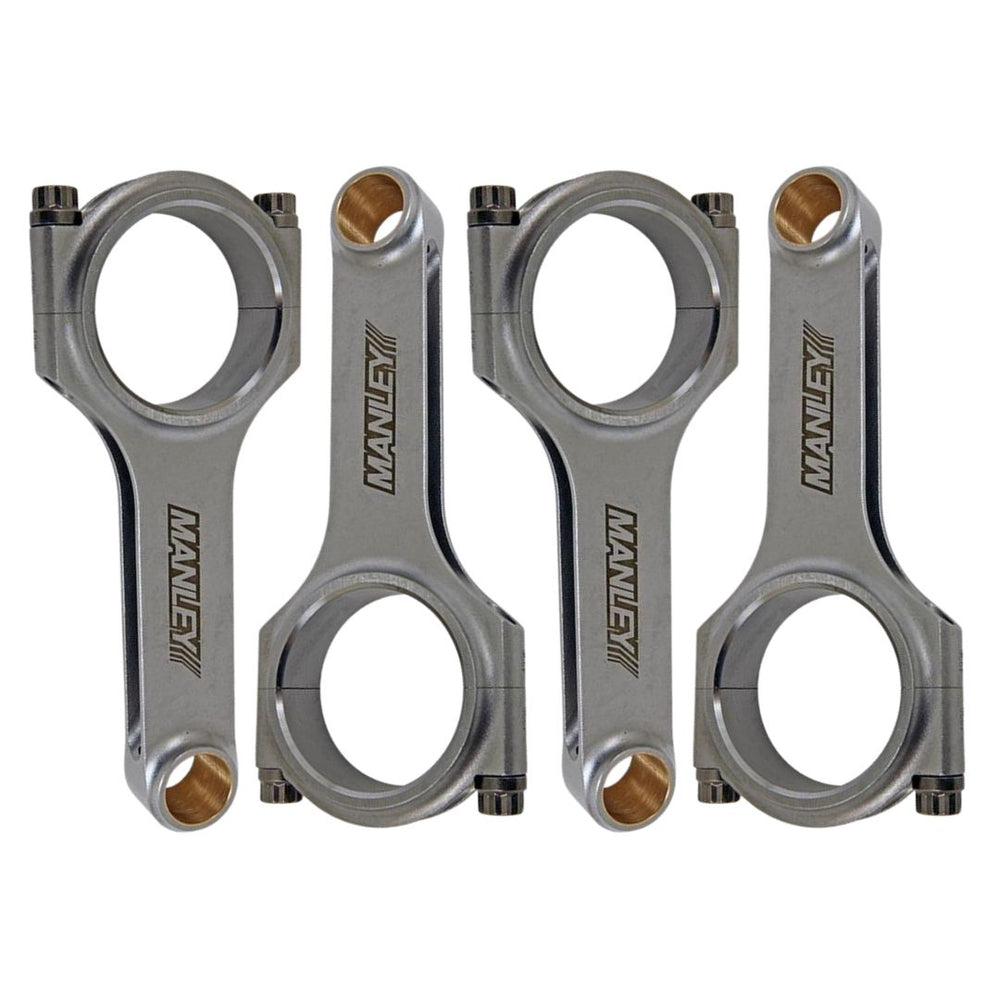

Manley H Beam Connecting Rod Set

Honda H22A VTEC
$1,149.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

When it comes to H-Beam connecting rods, not all are created equal. Manley's H-Beam Series stands out as a superior choice, offering exceptional quality at an economical price point. These connecting rods are meticulously crafted to meet the same high-quality standards as our renowned Sportsmaster and Pro Series rods.

Features and Benefits

  • Exacting Tolerances: Our H-Beam rods are finished to exacting tolerances to ensure precision and performance.
  • Attention to Detail: Every aspect, from final hone size to thread detail, bend, and twist, is treated with utmost seriousness to deliver connecting rods of the highest quality.
  • Exceptional Performance: Manley's H-Beam rods are designed to outperform others on the market, giving you a competitive advantage on the track.
  • Flexible Bolt Options: Tailor your connecting rods to your specific requirements with a choice of ARP 8740 or ARP 2000 bolts.

Technical Specifications

  • Average Gram Weight: 550
  • Big End Bore: 2.008
  • Center To Center Length: 5.636
  • Connecting Rod Material: 4340
  • Connecting Rod Type: H-Beam
  • Journal Size: Stock
  • Length: Stock
  • Pin End Bore: 0.8671
  • Rod Bolt Material: ARP 2000
  • Rod Quantity: 4
  • Wrist Pin Diameter: 0.866
  • Connecting Rod Journal Diameter: Stock

Fitment Table
