Description
Description

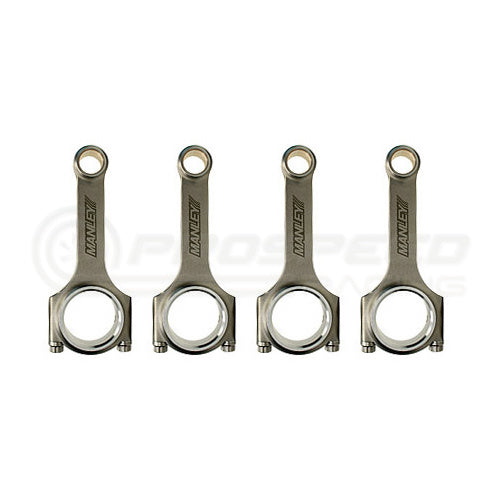

When it comes to H-Beam connecting rods, not all are created equal. Manley's H-Beam Series stands out as a superior choice, offering exceptional quality at an economical price point. These connecting rods are meticulously crafted to meet the same high-quality standards as our renowned Sportsmaster? and Pro Series rods.
Features and Benefits
Features and Benefits
- Exacting Tolerances: Our H-Beam rods are finished to exacting tolerances to ensure precision and performance.
- Attention to Detail: Every aspect, from final hone size to thread detail, bend, and twist, is treated with utmost seriousness to deliver connecting rods of the highest quality.
- Exceptional Performance: Manley's H-Beam rods are designed to outperform others on the market, giving you a competitive advantage on the track.
- Flexible Bolt Options: Tailor your connecting rods to your specific requirements with a choice of ARP 8740 or ARP 2000 bolts.
Technical Specifications
Technical Specifications
- Average Gram Weight: 610
- Big End Bore: 2.166
- Pin End Bore: 0.8671
- Center To Center Length: 5.927
- Connecting Rod Material: 4340
- Connecting Rod Type: H-Beam
- Journal Size: Stock
- Length: Stock
- Rod Bolt Material: ARP 2000
- Rod Quantity: 4
