 |  SKU: 14022-4

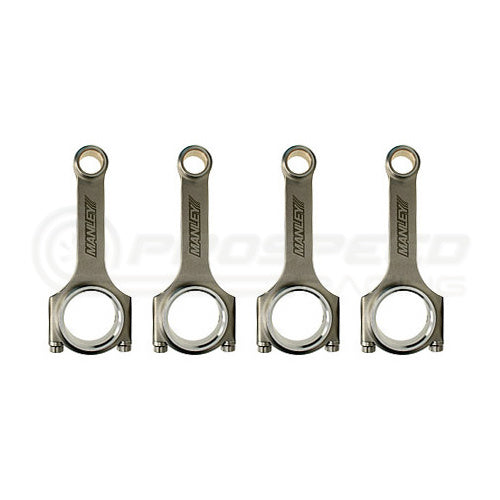

Manley H Beam Connecting Rods

Mitsubishi Evo 4-9

In Stock :

This product is in stock & ready to be dispatched.

Very low inventory :

This product has very limited stock remaining.

Incoming :

Product will be in stock soon.

Usually Ships In :

This product is not ready for immediate dispatch and will ship in the timeframe displayed.

Sold Out - Out of stock :

This product is not available at this time. Request ETA Information

$1,099.95

Earn [points_amount] when you buy this item.


Description



Manley "H" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Weight matched to +/- 1.5 grams. Perfectly round big and small ends. Bend and twist is tightly controlled. Cap fasteners are 3/8" ARP 2000 for the H-Beam and H-Tuff and 3/8" ARP Custom Age 625+ for the H-Tuff Plus. H-Tuff and H-Tuff Plus Series have a heavier beam for higher boost applications.



Technical Specifications

Part # Center-to-Center Big End Bore Big End Width Pin Diameter Pin Bore Gram Weight
14022-4 5.905" 1.890" 1.038" .866" (22 mm) .8671" 580



Fitment Table
