 |  SKU: 15084-4

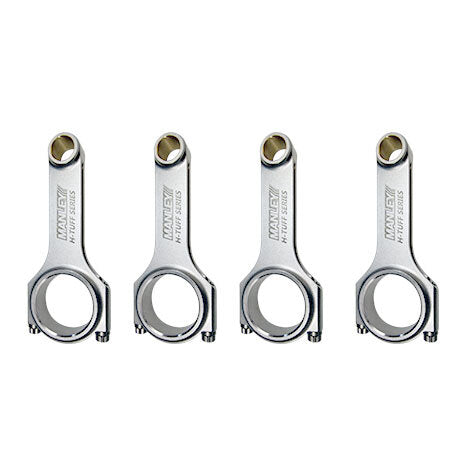

Manley H Tuff H Beam Connecting Rods

Subaru BRZ ZC6/Toyota 86 ZN6 12-21 (FA20)
$1,419.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Manley "H" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Weight matched to +/- 1.5 grams. Perfectly round big and small ends. Bend and twist is tightly controlled. Cap fasteners are 3/8" ARP 2000 for the H-Beam and H-Tuff and 3/8" ARP Custom Age 625+ for the H-Tuff Plus. H-Tuff and H-Tuff Plus Series have a heavier beam for higher boost applications

Technical Specifications

  • Average Gram Weight: 605 GR
  • Big End Bore: 2.087 IN
  • Center To Center Length: 5.090 IN
  • Journal Size: Stock
  • Length: Stock
  • Pin End Bore: 0.8671 IN
  • Wrist Pin Diameter: 0.866 IN
  • Connecting Rod Series: H-Beam
  • Connecting Rod Sub-Series: H-Tuff
  • Product Type: Engine Connecting Rod Set
  • Rod Quantity: 4
  • Connecting Rod Type: H-Beam
  • Connecting Rod Material: 4340

Fitment Table
